Home › AVADirect Gallery › Workstations › Lian Li Armorsuit PC-P80 Black Case, Supermicro X8DA3, Intel 2 x BX80602E5520 Xeon E5520, Crucial 16GB (4 x 4GB) DDR3-1333 ECC Registered, Powercolor Radeon HD 5970

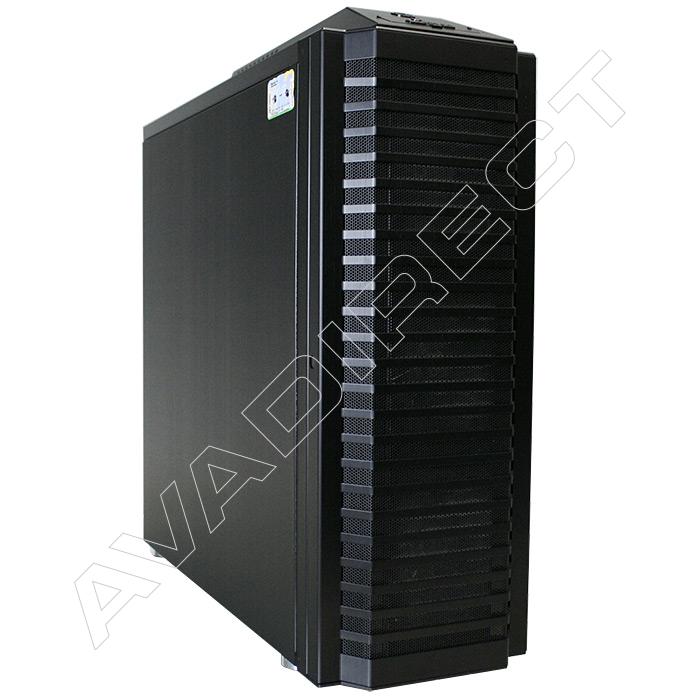

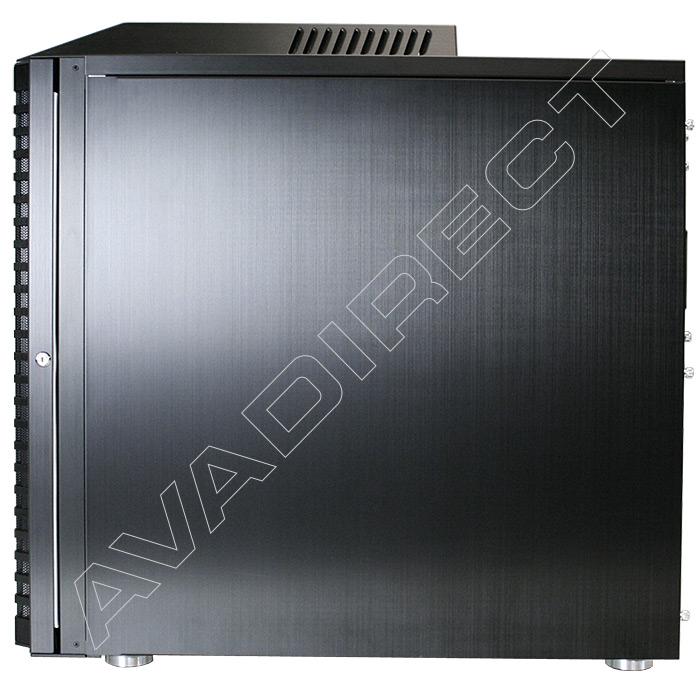

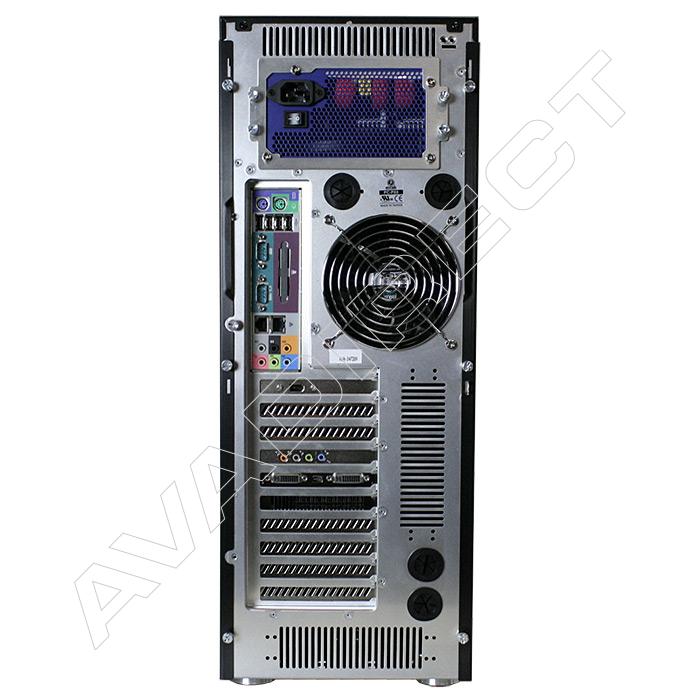

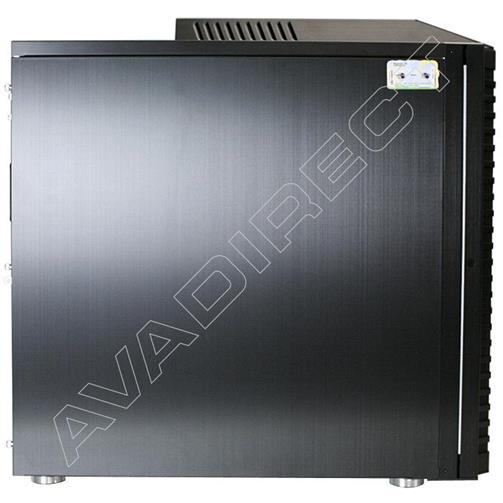

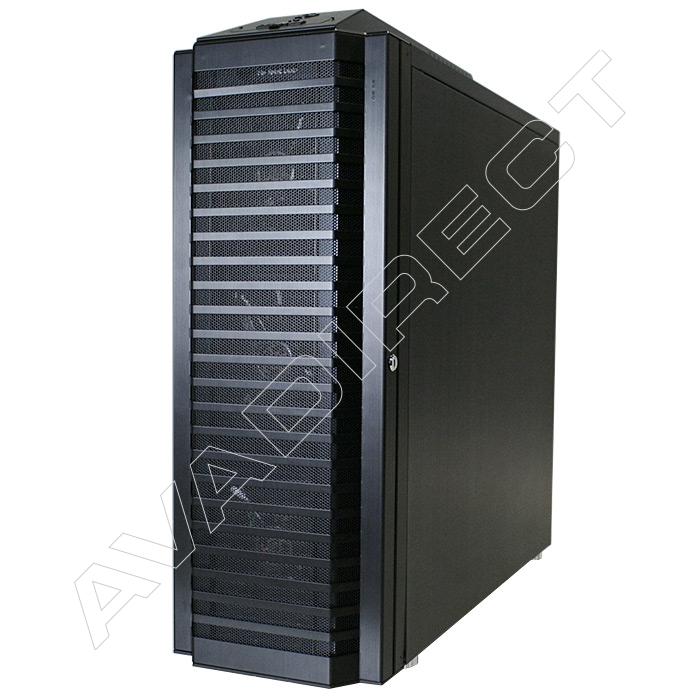

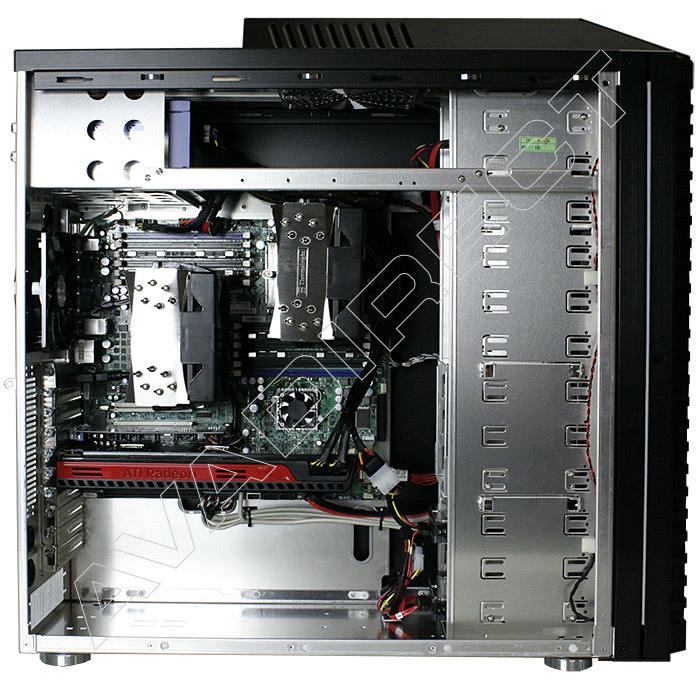

Our custom workstation configurations are perfect for those who intended to use the hardware they hand select for some serious number crunching, or graphic rendering. This particular end-user chose to house all of his hardware in a Lian-Li Armorsuit chassis, which offers great cooling and heavy-duty reinforcement. Backed by two Intel Xeon E5520 processors, cooled with Thermalright Ultra-120 heatsinks, the Supermicro motherboard boasts a high range of functionality due to the amount of expansion slots and back panel ports. The ATI 5970 graphics card flexes some of the best performance benchmarks for gaming, but it is certainly not limited considering it can also prove quote useful for rendering applications as well. 16GB of Crucial RAM will be used efficiently, and adding two 300GB SAS drives in RAID 0 will make read/write times sky rocket to unbelievable amounts creating an extremely responsive system overall. The Sony dual-layer optical drive will perform quietly, and fulfill the standard of most systems with burning capabilities. The 850W power supply will provide the customer with plenty of power, but will limit them to future upgrades. They also decided to add a creative sound blaster card for better sound quality, and 3Ware Molex cables for easy management for the SAS drives. Windows 7 Ultimate 64-bit will create the best experience overall, and with software like Office Professional 2007. And Norton Antivirus 2010 will ensure a great relationship between this massive workstation and it's creator.

Custom assembly SKU 7992566

Lian Li Armorsuit PC-P80 Black Case, Supermicro X8DA3, Intel 2 x BX80602E5520 Xeon E5520, Crucial 16GB (4 x 4GB) DDR3-1333 ECC Registered, Powercolor Radeon HD 5970

CONFIGURATION

See what components went into this custom computer build:

X8DA3, Intel 5520, LGA 1366 / 2, DDR3-1333 192GB RDIMM / 12, GbLAN / 2, E-ATX Retail

Motherboards

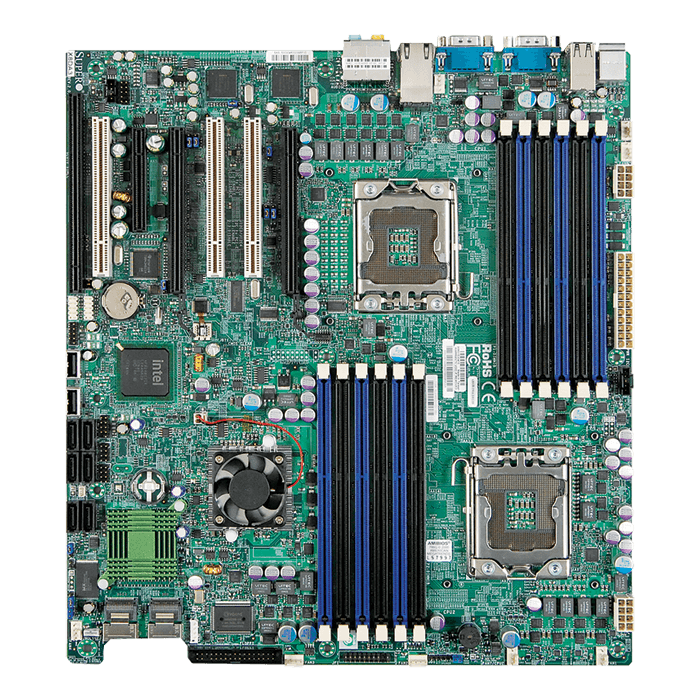

SUPERMICRO X8DA3, Intel 5520, LGA 1366 / 2, DDR3-1333 192GB RDIMM / 12, GbLAN / 2, E-ATX Retail

2 x Xeon® E5520 Quad-Core Processor 2.26GHz, LGA1366, 5.86 GT/s QPI, 8MB L3 Cache, HT EM64T EIST TB VT XD, 45nm, 80W, Retail w/o Fan

Server Processors

INTEL 2 x Xeon® E5520 Quad-Core Processor 2.26GHz, LGA1366, 5.86 GT/s QPI, 8MB L3 Cache, HT EM64T EIST TB VT XD, 45nm, 80W, Retail w/o Fan

16GB (4 x 4GB) Dual-Rank PC3-10600 DDR3 1333MHz CL9 SDRAM DIMM, ECC Registered

Server Memory

CRUCIAL 16GB (4 x 4GB) Dual-Rank PC3-10600 DDR3 1333MHz CL9 SDRAM DIMM, ECC Registered

AX5970 2GBD5-MD, Radeon™ HD 5970 725MHz, 2GB (2 x 1GB) GDDR5 4000MHz, PCIe x16 CrossFire, DVI /2, mini DP, Retail

Desktop Graphics Cards

POWERCOLOR AX5970 2GBD5-MD, Radeon™ HD 5970 725MHz, 2GB (2 x 1GB) GDDR5 4000MHz, PCIe x16 CrossFire, DVI /2, mini DP, Retail

Sound Blaster® X-Fi™ Xtreme Audio, 7.1 channels, 24-bit 96KHz, PCI

Sound Cards

CREATIVE Sound Blaster® X-Fi™ Xtreme Audio, 7.1 channels, 24-bit 96KHz, PCI

300GB Cheetah 15K.7 ST3300657SS, 15K RPM, SAS 6Gb/s, 16MB cache, 3.5" HDD

Server Hard Disk Drives

SEAGATE 300GB Cheetah 15K.7 ST3300657SS, 15K RPM, SAS 6Gb/s, 16MB cache, 3.5" HDD

300GB Cheetah 15K.7 ST3300657SS, 15K RPM, SAS 6Gb/s, 16MB cache, 3.5" HDD

Server Hard Disk Drives

SEAGATE 300GB Cheetah 15K.7 ST3300657SS, 15K RPM, SAS 6Gb/s, 16MB cache, 3.5" HDD

RAID 0 - Striping (Minimum 2 HDD's Required)

Storage Subsystem Configuration

RAID 0 - Striping (Minimum 2 HDD's Required)

Turbo Power Supply w/ Modular Cables, 850W, 80 PLUS®, 24-pin ATX12V EPS12V, Retail

Power Supplies

CHIEFTEC Turbo Power Supply w/ Modular Cables, 850W, 80 PLUS®, 24-pin ATX12V EPS12V, Retail
