Home › AVADirect Gallery › Servers › Supermicro 4U Storage Server
We had the pleasure of working with the customer extensively for the build, and large storage servers have become more common based on current demand for storage. This client needed an easy solution for their storage needs, but also needed server to be performance oriented. Usually, large RAID arrays can cause any system to lose CPU cycles, thus lowering performance. The only way to prevent this problem is by adding a hardware-based RAID controller, with on-board RAM, to assume control over the RAID array and handle it independently. The 3WARE RAID controller was a perfect candidate, considering the 512MB of DDR3 RAM, and it’s large amount of SATA ports to future expansion. This allows the end-user to use more of the processors capabilities, and also saves the system from using the 16GB of system RAM. Combine this setup with Open-E storage software and you have a well-oiled machine ready to keep your data safe, and the system’s performance optimal.
Custom assembly SKU 7957082

Supermicro 4U Storage Server

CONFIGURATION

See what components went into this custom computer build:

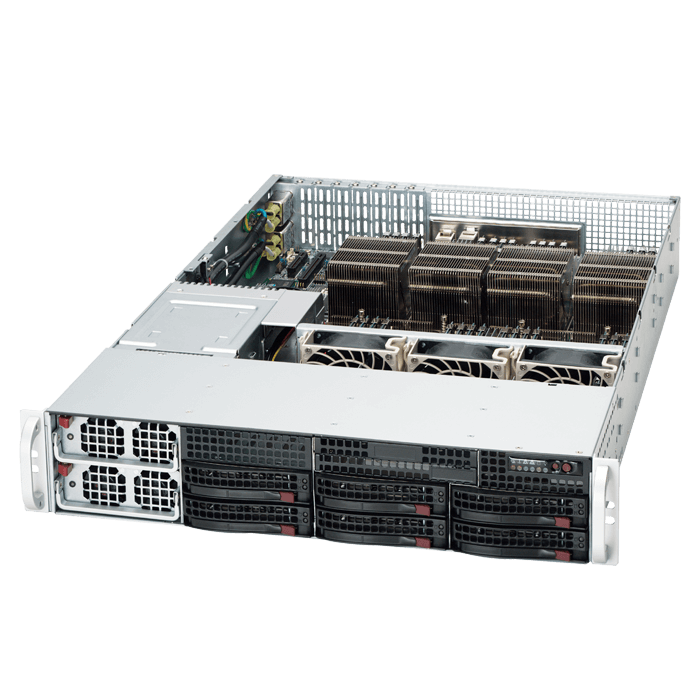

A+ Server 2042G-TRF, 2U, AMD SR5690/SR5670, 6x SATA, 32x DDR3, Dual 1Gb Ethernet, 1400W Rdt PSU
Server Barebones
SUPERMICRO A+ Server 2042G-TRF, 2U, AMD SR5690/SR5670, 6x SATA, 32x DDR3, Dual 1Gb Ethernet, 1400W Rdt PSU

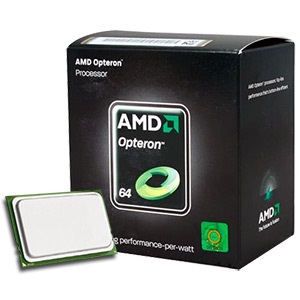

4 x Opteron™ 6274 Sixteen-Core 2.2GHz, LGA1944 G34, HT 6400MHz, 16MB L3 cache, 115W, Retail w/o Fan
Server Processors
AMD 4 x Opteron™ 6274 Sixteen-Core 2.2GHz, LGA1944 G34, HT 6400MHz, 16MB L3 cache, 115W, Retail w/o Fan

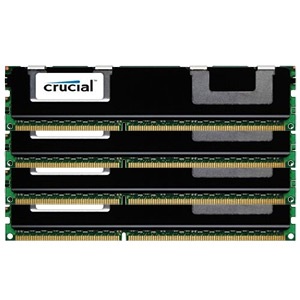

256GB (32 x 8GB) Dual-Rank PC3-10600 DDR3 1333MHz CL9 SDRAM DIMM, ECC Registered
Server Memory
CRUCIAL 256GB (32 x 8GB) Dual-Rank PC3-10600 DDR3 1333MHz CL9 SDRAM DIMM, ECC Registered

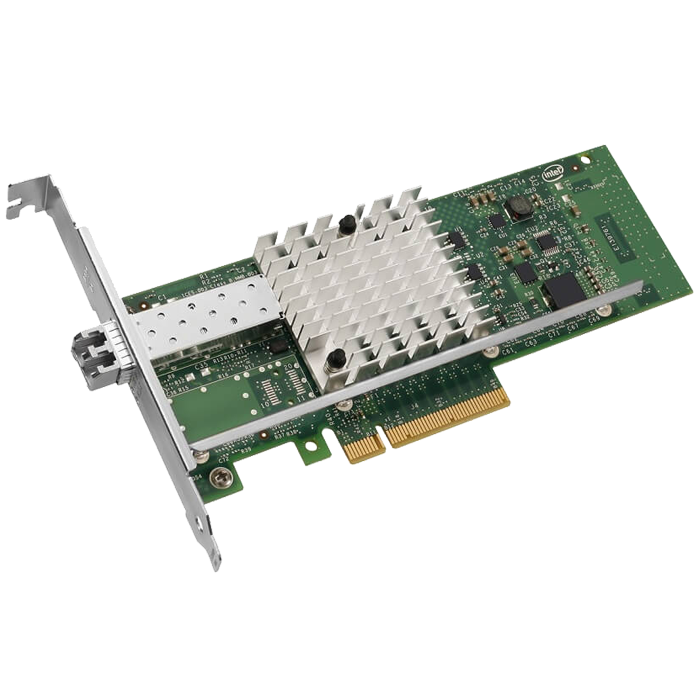

10Gbps Ethernet Converged Network Adapter, X520-SR1, (1x LC)
Ethernet Network Adapters
INTEL 10Gbps Ethernet Converged Network Adapter, X520-SR1, (1x LC)
1TB Black WD1002FAEX, 7200 RPM, SATA 6Gb/s, 64MB cache, 3.5-Inch HDD
Desktop Hard Disk Drives
WESTERN DIGITAL 1TB Black WD1002FAEX, 7200 RPM, SATA 6Gb/s, 64MB cache, 3.5-Inch HDD

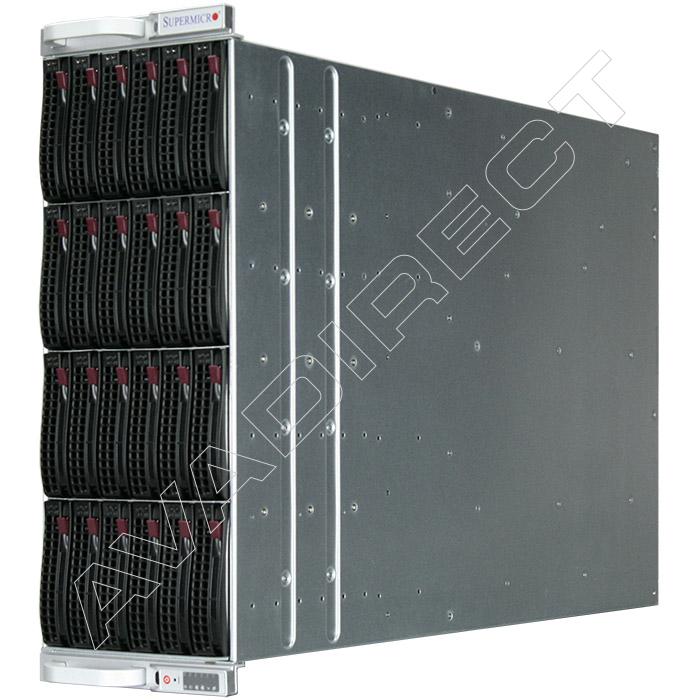

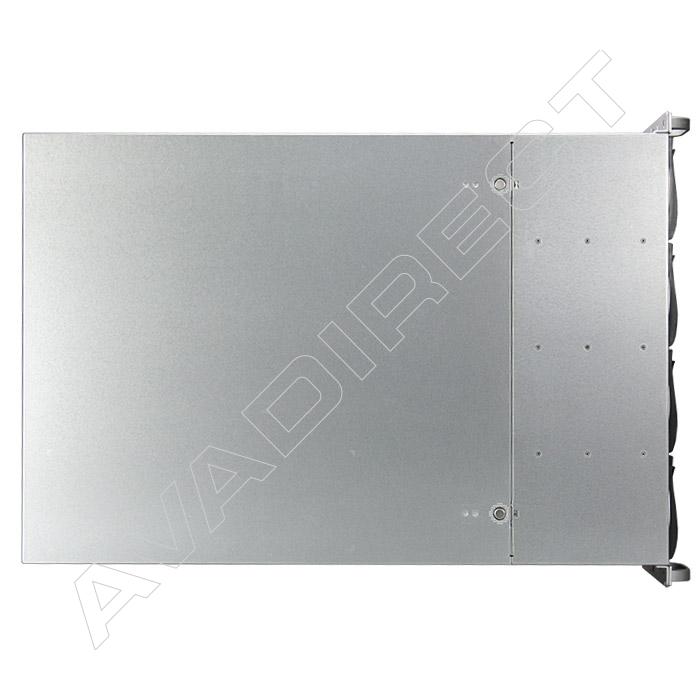

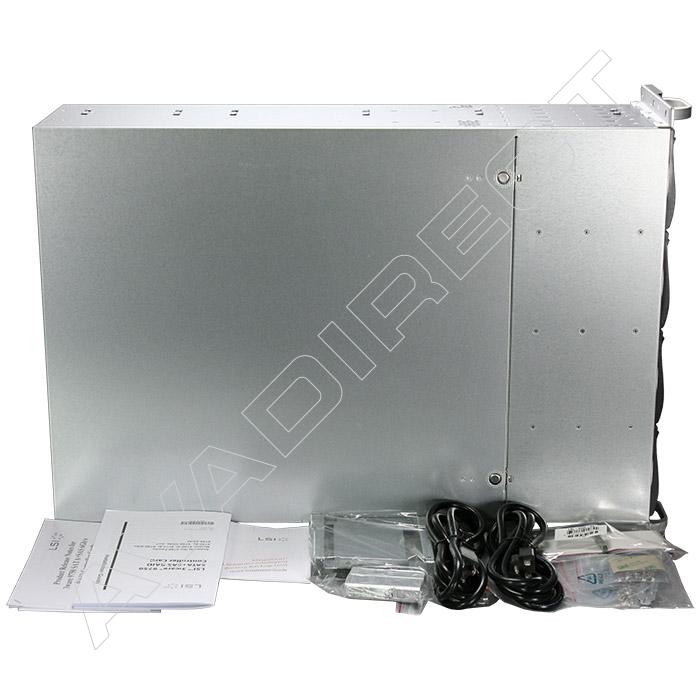

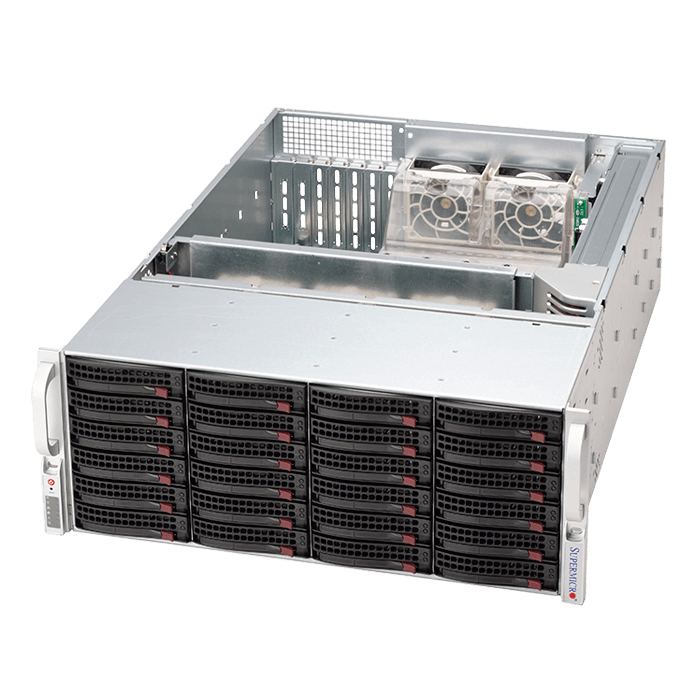

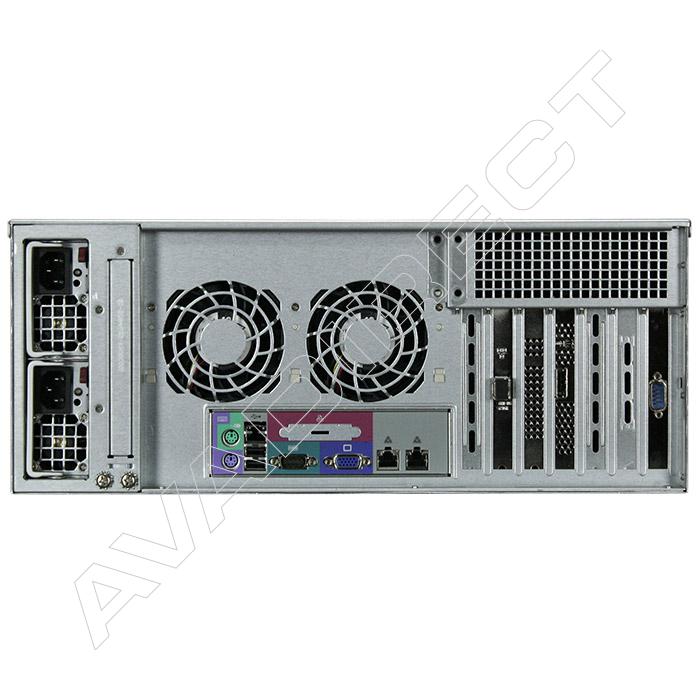

SuperChassis 846A-R1200B, 24x 3.5" Hotswap Bays, 1200W Rdt PSU, EE-ATX, Black, 4U Chassis
Chassis
SUPERMICRO SuperChassis 846A-R1200B, 24x 3.5" Hotswap Bays, 1200W Rdt PSU, EE-ATX, Black, 4U Chassis
H8SGL-F, LGA1944 G34, AMD® SR5690, DDR3-1600 ECC/UECC 256GB/64GB /8, PCIe x16, SATA 3 Gb/s RAID 10 /6, VGA, GbLAN /2, IPMI, ATX, Retail
Motherboards
SUPERMICRO H8SGL-F, LGA1944 G34, AMD® SR5690, DDR3-1600 ECC/UECC 256GB/64GB /8, PCIe x16, SATA 3 Gb/s RAID 10 /6, VGA, GbLAN /2, IPMI, ATX, Retail
Opteron™ 6128 Eight-Core 2.0GHz, LGA1944, HT 6400MHz, 12MB L3 cache, 80W, Retail w/o Fan
CPU
AMD Opteron™ 6128 Eight-Core 2.0GHz, LGA1944, HT 6400MHz, 12MB L3 cache, 80W, Retail w/o Fan

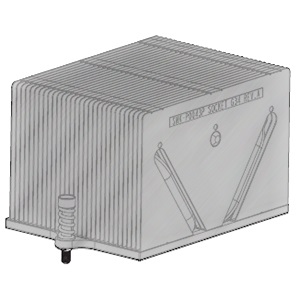

SNK-P0043P Socket G34 LGA1944 Passive Heatsink for 2U Rack Server Chassis
Heatsinks and CPU Coolers
SUPERMICRO SNK-P0043P Socket G34 LGA1944 Passive Heatsink for 2U Rack Server Chassis
16GB (4 x 4GB) Dual-Rank PC3-10600 DDR3 1333MHz CL9 1.5V SDRAM DIMM, ECC Registered
Server Memory
CRUCIAL 16GB (4 x 4GB) Dual-Rank PC3-10600 DDR3 1333MHz CL9 1.5V SDRAM DIMM, ECC Registered
Dual 2.5" Fixed HDD Tray for SC846 Chassis
PC Drive Mounts and Enclosures
SUPERMICRO Dual 2.5" Fixed HDD Tray for SC846 Chassis

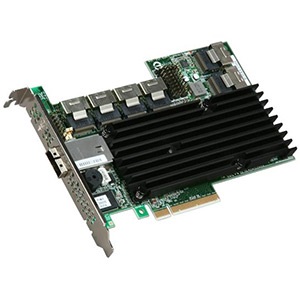

SAS 9750-24i4e SAS/SATA 6 Gb/s RAID Controller, 24-int/8-ext ports, Levels 0/1/5/6/10/50, 512MB DDR2 cache, PCIe x8, Retail w/o Cables
SATA RAID Controllers
3WARE SAS 9750-24i4e SAS/SATA 6 Gb/s RAID Controller, 24-int/8-ext ports, Levels 0/1/5/6/10/50, 512MB DDR2 cache, PCIe x8, Retail w/o Cables
MegaRAID LSIiBBU07 Intelligent Battery Backup Unit for LSI 8880EM2, 9750-xx, 9260-xx and 9280-xx RAID Controllers
RAID Cache and Battery Backup Modules
Broadcom MegaRAID LSIiBBU07 Intelligent Battery Backup Unit for LSI 8880EM2, 9750-xx, 9260-xx and 9280-xx RAID Controllers
10Gbps Ethernet Converged Network Adapter, X520-SR1, (1x LC)
Ethernet Network Adapters
INTEL 10Gbps Ethernet Converged Network Adapter, X520-SR1, (1x LC)
DSS V6 Enterprise Data Storage Software, Single Server, 8TB, Annual Standard Support, No Media
All Operating Systems
OPEN-E DSS V6 Enterprise Data Storage Software, Single Server, 8TB, Annual Standard Support, No Media
