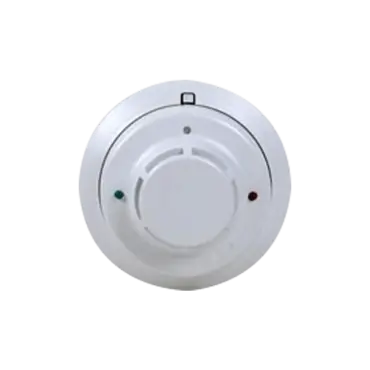

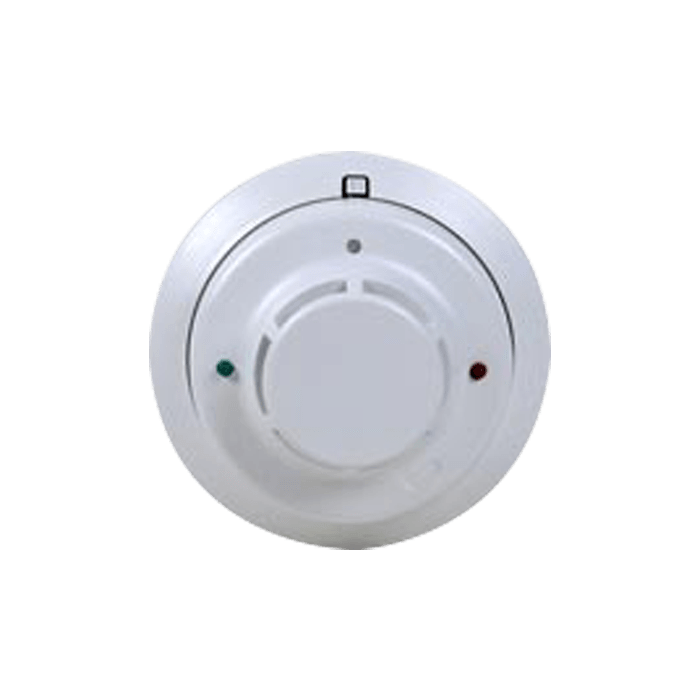

e-sds-taa-pv2 Smoke Detector with Built-In Fixed-Temperature 135°F (57°C) Heat Sensor – UL Approved, TAA Compliant
Quantity:
- SKU: 14661106
- Manufacturer: NTI
- MPN: e-sds-taa-pv2
- Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Starting At
$133.87
- For warning of smoke.
- Photoelectric smoke detector.
- Built-in 135° F (57° C) thermal heat sensor.
- Connect to digital input sensor ports.
- Voltage Supply: 8.5 to 35 VDC
-
Max Current Consumption:
- 50uA max standby current @12VDC
- 20mA max alarm current @12VDC
- Alarm Output: Relay (NO)
-
Screw terminal
- To connect to the digital inputs use a 22 AWG 2-wire cable. Connect the other end to the sensor screw terminal.
- Maximum cable length: 1,000 ft (305 m)
- Includes 12V/1A power supply.
- Compatible with E-MINI-LXO.
- Regulatory approvals: UL
- TAA compliant
