1000 P3, 80 PLUS Platinum 1000W, ECO Mode, Fully Modular, ATX Power Supply
Quantity:
- SKU: 14641294
- Manufacturer: EVGA
- MPN: 220-P3-1000-X1
- Availability: USUALLY SHIPS WITHIN 3-5 DAYS
Starting At
$169.13
1000 P3, 80 PLUS Platinum 1000W, ECO Mode, Fully Modular, ATX Power Supply
A NEW GENERATION OF PLATINUM POWER
EVGA SuperNOVA power supplies are well-known for their extreme efficiency, performance and reliability. EVGA’s dedication to performance has forged its newest higher-wattage power supply platform: the EVGA SuperNOVA P3 Series. With these new power supplies, EVGA took the best features of the award-winning P2 lineup and made them even better. The SuperNOVA P3’s smaller size, improved performance and a new Fluid Dynamic Bearing fan give you ultra-quiet performance with an increased lifespan.
- 80 PLUS Platinum certified, with 92% (115VAC) / 94% (220VAC~240VAC) efficiency or higher under typical loads
- 100% Japanese Capacitors ensure long-term reliability
- Fully Modular to reduce clutter and improve airflow
- Full-bridge LLC Resonant Converter and DC-DC design leads to tight voltage regulation and low ripple & noise
- Fluid Dynamic Bearing Fan for ultra-quiet operation and increased lifespan.
- EVGA ECO Intelligent Thermal Control System eliminates fan noise at low to medium loads
- Heavy-duty protections, including OVP (Over Voltage Protection), UVP (Under Voltage Protection), OCP (Over Current Protection), OPP (Over Power Protection), SCP (Short Circuit Protection), and OTP (Over Temperature Protection)
- Active Power Factor Correction
- Unbeatable EVGA 10 Year Warranty and unparalleled EVGA Customer Support

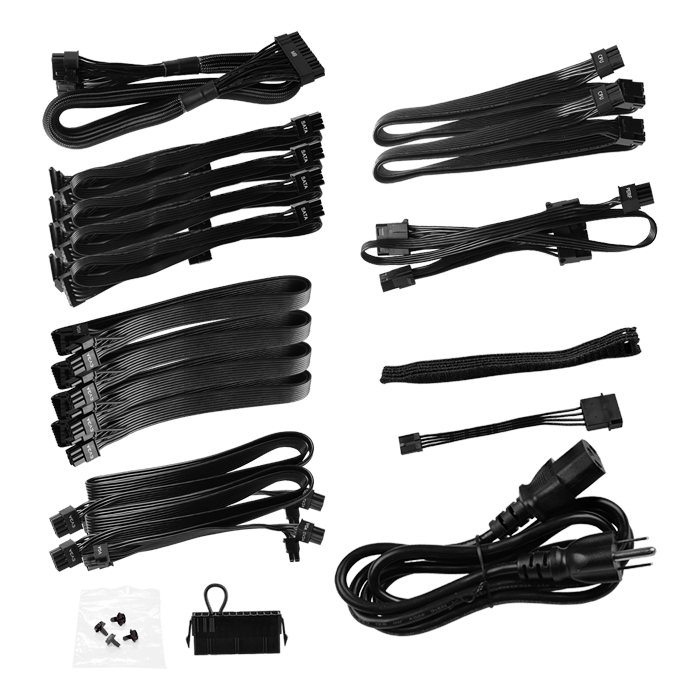

| Cable Length | |||||
| ATX Cable | 1x 600mm (m) | ||||
| EPS Cable | 2x 750mm (m) | ||||
| PCIe Cable | 2x 750mm, 900mm (m) 4x 750mm (m) | ||||
| SATA Cable | 4x 550mm, 650mm, 750mm (m) | ||||
| Four-Pin Peripheral Cable | 1x 550mm, 650mm, 750mm, 850mm (m) | ||||
| Floppy Adapter | 1x 100mm | ||||
| AC Power | 1x 1500mm (m) | ||||
| Modular Cable Type | Full | ||||

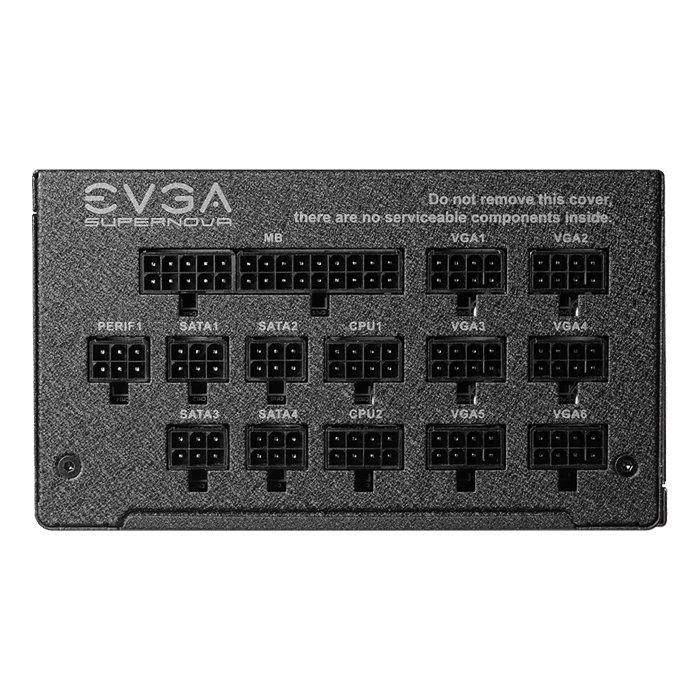

| Connector Quantity | |||||
| 24 Pin ATX | 1x 24pin | ||||
| EPS (CPU) | 2x 8pin (4+4) | ||||
| PCIe | 8x 8pin (6+2) | ||||
| SATA | 12x | ||||
| Four-Pin Peripheral | 4x | ||||
| Floppy | 1x | ||||

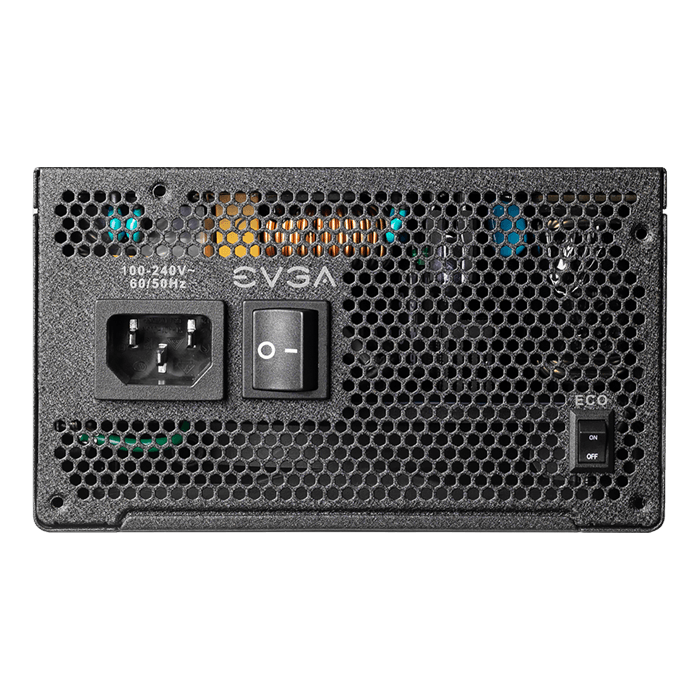

| INPUT | |||||
| Input Voltage | 100-240V~ | ||||
| AC Input | 12-6A | ||||
| Input Frequency Range | 60/50Hz | ||||
| Efficiency | 92% (115VAC) / 94% (220VAC~240VAC) or Higher Typical | ||||

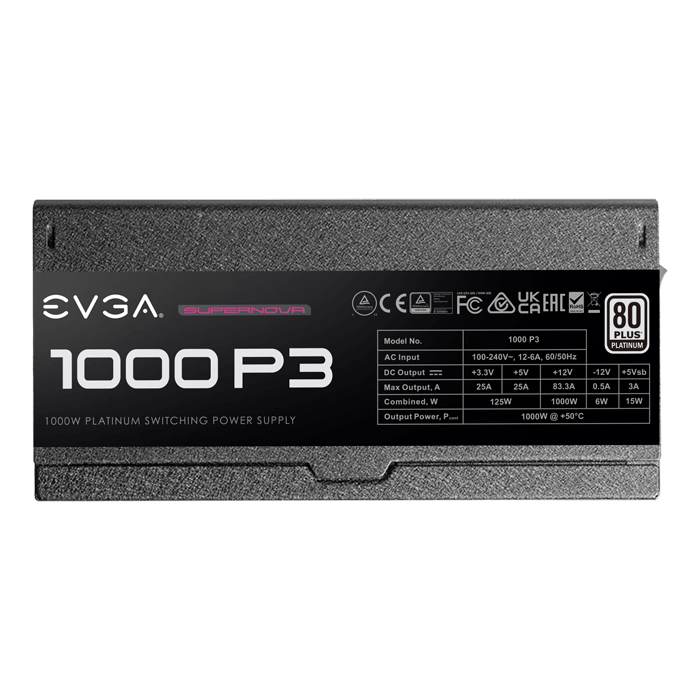

| Power Specs | |||||
| Rail | +3.3V | +5V | +12V | -12V | +5Vsb |
| Max Output | 25A | 25A | 83.3A | 0.5A | 3A |
| 125W | 1000W | 6W | 15W | ||
| Total | 1000W | ||||
| Additional Details | |||||
| Operating Temperature | 0° to 50° C | ||||
| Japanese Capacitors | 100% | ||||
| ECO Mode | Yes | ||||
| MTBF | 100,000 Hours | ||||
| Net Weight | 9 lbs | ||||
| Size | 86mm (H) x 150mm (W) x 180mm (L) | ||||
| Approvals | TUV, CB, CE, FCC, RCM, cTUVus, WEEE, RoHS Compliance with ErP Lot 3 2014 Requirement |
||||
| Fan Size / Bearing | 135mm Fluid Dynamic Bearing | ||||
| UPC | 843368059149 | ||||
| EAN | 4250812430793 | ||||
