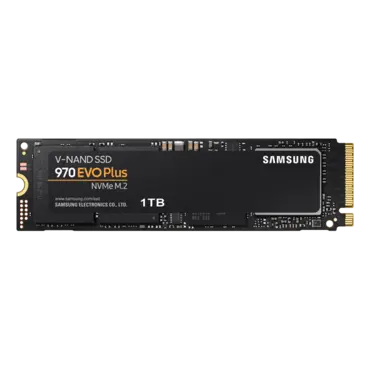

1TB 970 EVO Plus, 3500 / 3300 MB/s, V-NAND 3-bit MLC, PCIe NVMe 3.0 x4, M.2 2280 SSD
Quantity:
- SKU: 12545580
- Manufacturer: SAMSUNG
- MPN: MZ-V7S1T0B/AM
- Availability: USUALLY SHIPS WITHIN 3-5 DAYS
Starting At
$103.35
| Type | |
| Product Type | SSD |
| Series | 970 EVO Plus |
| Usage Application | Client PCs |
| Interface | PCIe Gen 3.0 x 4, NVMe 1.3 |
| Application | |
| Consumer | Yes |
| Storage | |
| Capacity |
1,000GB (1GB=1 Billion byte by IDEMA) * Actual usable capacity may be less (due to formatting, partitioning, operating system, applications or otherwise) |
| Key Features | |
| Sequential Read Speed |
Up to 3,500 MB/s * Performance may vary based on system hardware & configuration |
| Sequential Write Speed |
Up to 3,300 MB/s * Performance may vary based on system hardware & configuration |
| Random Read Speed |
Random Read (4KB, QD32): Up to 600,000 IOPS; Random Read (4KB, QD1): Up to 19,000 IOPS * Performance may vary based on system hardware & configuration |
| Random Write Speed |
Random Write (4KB, QD32): Up to 550,000 IOPS; Random Write (4KB, QD1): Up to 60,000 IOPS * Performance may vary based on system hardware & configuration |
| Controller | Samsung Phoenix Controller |
| NAND Flash | Samsung V-NAND 3-bit MLC |
| Cache Memory | Samsung 1GB Low Power DDR4 SDRAM |
| Trim Support | Supported |
| AES Encryption | AES 256-bit Encryption (Class 0)TCG/Opal IEEE1667 (Encrypted drive) |
| S.M.A.R.T. Support | Supported |
| GC (Garbage Collection) | Auto Garbage Collection Algorithm |
| WWN Support | Not supported |
| Device Sleep Mode Support | Yes |
| Temperature proof | Yes |
| NVMe | Yes |
| Gaming SSDs | Yes |
| General | |
| Average Power Consumption (system level) |
* Average: 6 W * Maximum: 9 W (Burst mode) * Actual power consumption may vary depending on system hardware & configuration |
| Power consumption (Idle) |
Max. 30 mW * Actual power consumption may vary depending on system hardware & configuration |
| Voltage | 3.3 V ± 5 % Allowable voltage |
| Reliability (MTBF) | 1.5 Million Hours Reliability (MTBF) |
| Environmental Specs | |
| Operating Temperature | 0 - 70 °C Operating Temperature |
| Shock | 1,500 G & 0.5 ms (Half sine) |
| Form Factor | |
| Product | M.2 (2280) |
| Dimensions (W x H x D) | |
| Product | 80.15 x 22.15 x 2.38 (mm) |
| Weight | |
| Product | Max 8.0 g Weight |
| Software | |
| Management SW | Magician Software for SSD management |
| Warranty | |
| Product | 5-Year Limited Warranty or: 600 TBW Limited Warranty |
