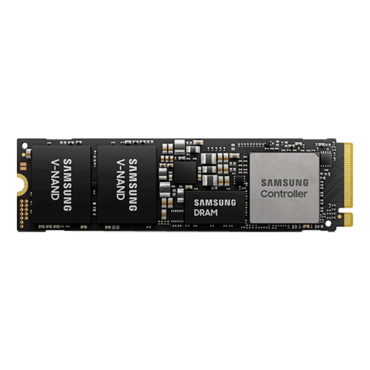

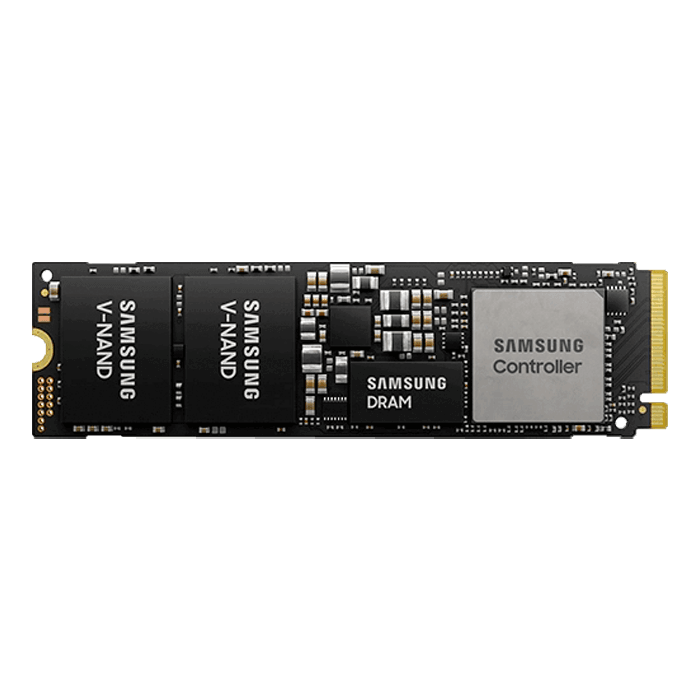

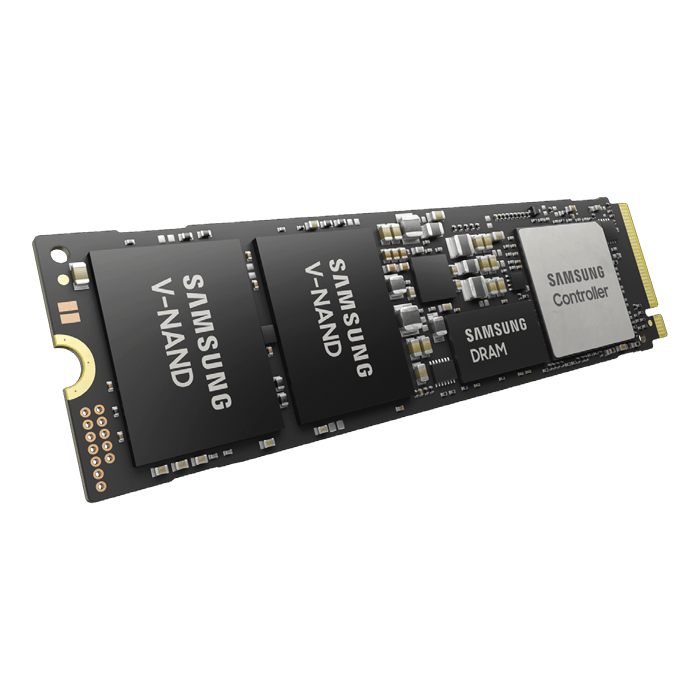

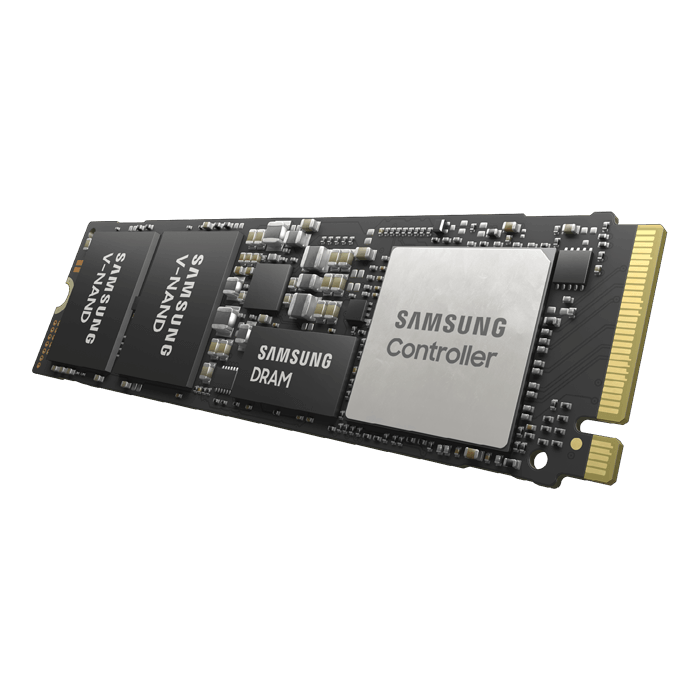

2TB PM9A1, 7000 / 5200 MB/s, V-NAND 3-bit MLC, PCIe NVMe 4.0 x4, M.2 2280 SSD
- SKU: 15426595
- Manufacturer: SAMSUNG
- MPN: MZVL22T0HBLB-00B00
- Availability: TEMPORARILY OUT OF STOCK
Blazing fast performance is becoming the new reality in the client computing environment with the
latest generation of client processors transitioning to PCIe Gen4 as the interface for data transfers to the
CPU. Samsung’s PM9A1 allows end users to fully realize the benefits of this faster standard, delivering a
significant and noticeable improvement in performance over the prior generation for the power PC user.
A specialized SSD designed with demanding workload needs in mind, Samsung’s PM9A1 offers
industry-leading performance, while meeting OEM requirements for data security, thermal control,
power management. Samsung’s PM9A1 drive is suited for a wide range of high-end PC applications, such
as gaming, content creation, and data analytics - data-intensive and demanding environments where
performance is paramount.
| Storage Capacity | 2TB |
| Host Interface | PCIe Gen 4 x4 |
| Spec Compliance | NVMe spec rev. 1.3, PCI Express Base Specification Revision 4.0 |
| NAND Flash Memory | Samsung V-NAND |
| Power Consumption (Active/Idle) | 5.8W Active 35mW Idle |
| Uncorrectable Bit Error Rate (UBER) | <1 sector per 10^15 bits read |
| Mean Time Between Failure (MTBF) | 1,500,000 Hours |
| Endurance | 1200 TBW |
| Sequential Read | 7,000 MB/s |
| Sequential Write | 5,200 MB/s |
| Random Read | 1,000,000 IOPS |
| Random Write | 850,000 IOPS |
| Physical Dimensions | 22x80 mm |
| Encryption Supported | TCG OPAL (v2.1) Compliant for SED |
| Bytes per Sector | 512MB |
| Operating Temperature | 0 to 70 C |
