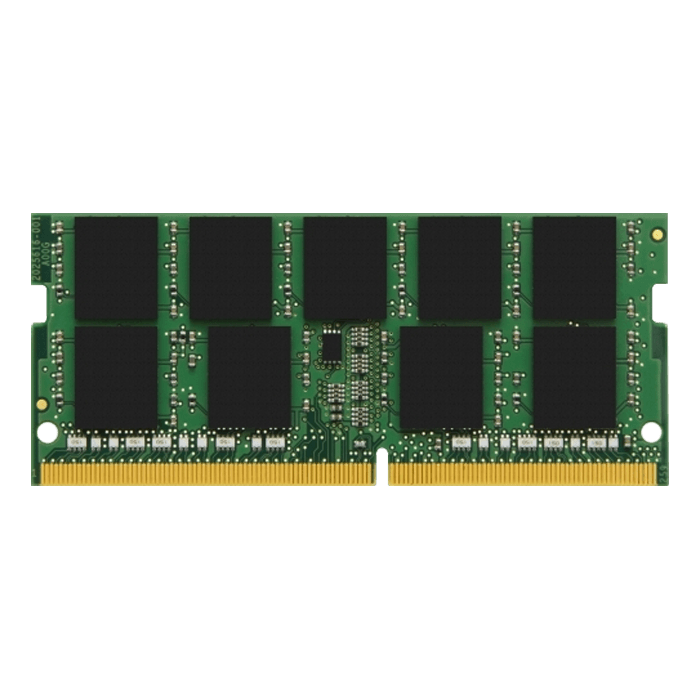

32GB ValueRAM DDR4 2666MHz, CL19, SO-DIMM Memory
Quantity:
- SKU: 13170138
- Manufacturer: KINGSTON
- MPN: KVR26S19D8/32
- Availability: USUALLY SHIPS WITHIN 3-5 DAYS
Starting At
$73.59
32GB ValueRAM DDR4 2666MHz, CL19, SO-DIMM Memory
This document describes ValueRAM's KVR26S19D8/32 is a 4G x 64-bit (32GB) DDR4-2666 CL19 SDRAM (Synchronous DRAM), 2Rx8, non-ECC, memory module, based on sixteen 2G x 8-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR4-2666 timing of 19-19-19 at 1.2V. This 260-pin DIMM uses gold contact fingers.
- Power Supply: VDD = 1.2V Typical
- VDDQ = 1.2V Typical
- VPP = 2.5V Typical
- VDDSPD = 2.2V to 3.6V
- Nominal and dynamic on-die termination (ODT) for data, strobe, and mask signals
- Low-power auto self refresh (LPASR)
- Data bus inversion (DBI) for data bus
- On-die VREFDQ generation and calibration
- Dual-rank
- On-board I2 serial presence-detect (SPD) EEPROM
- 16 internal banks; 4 groups of 4 banks each
- Fixed burst chop (BC) of 4 and burst length (BL) of 8 via the mode register set (MRS)
- Selectable BC4 or BL8 on-the-fly (OTF)
- Fly-by topology
- Terminated control command and address bus
- PCB: Height 1.18” (30.00mm)
- RoHS Compliant and Halogen-Free
| Model | |
|---|---|
| Storage Temperature | -55C to +100C |
| ECC | non-ECC |
| Model | KVR26S19D8/32 |
| Details | |
| Capacity | 32GB |
| Type | 260-Pin DDR4 SO-DIMM |
| Speed | DDR4 2666 |
| Cas Latency | 19-19-19 |
| Voltage | 1.2V |
| Heat Spreader | No |
