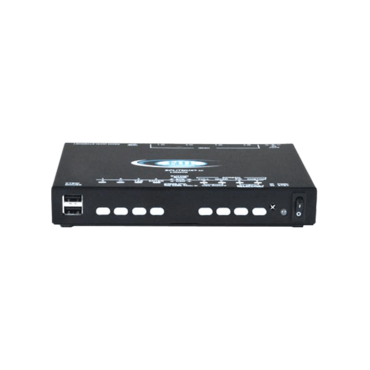

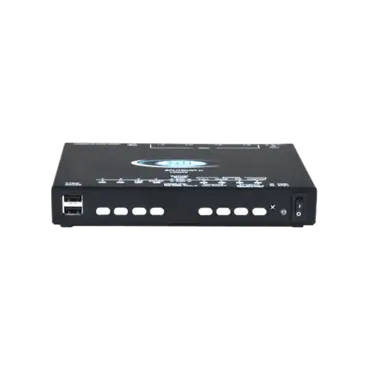

4K HDMI Quad Screen Multiviewer
Simultaneously display real-time HDMI Ultra-HD 4Kx2K video from four different sources on a single monitor
Quad, Picture in Picture, Full Screen, and Custom display modes
Fluid, real-time video performance with up to 60 frames per second (fps) in all four quadrants
Video Input |
- Four female HDMI connectors.
- Supports HDMI devices, such as DVD/Blu-ray players, satellite receivers and HDTV tuners.
- Multiplatform support: Windows 2000/XP/Vista/7/8/10, Windows Server 2000/2003/2008/2012, Solaris, Linux, FreeBSD, and MAC OS 9/10.
- Supported video input resolutions:
- 2K Cinema (2048x1080 @ 60Hz)
- HDTV resolutions to 1080p
- Computer resolutions to 1920x1200.
- Supports HDCP 1.2
|
Video Output |
- One female HDMI connector for display.
- Compatible with 21:9 UltraWide monitors.
- Supported video output resolutions:
- Quad and Full mode
- Ultra-HD 4Kx2K resolutions (3840x2160 @ 60Hz, 4096x2160 @ 60Hz)
- 2K Cinema (2048x1080 @ 60Hz)
- HDTV resolutions to 1080p
- Computer resolutions to 2560x1600
- PiP and Custom mode
- 2K Cinema (2048x1080 @ 60Hz)
- HDTV resolutions to 1080p
- Computer resolutions to 1920x1200.
- HDMI-embedded audio switching (four-channel stereo mixing).
- Supports HDCP 2.2
- Chroma sampling: 4:4:4 RGB.
- Latency:
- 50mS at 60Hz
- 60mS at 50Hz
- 100mS at 30Hz
- 120mS at 25Hz
- 125mS at 24Hz
|
Protocols |
- HTTP, HTTPS
- TCP/IP, DHCP, UDP, ARP
- IPV4
|
Power |
- 110 to 220 VAC at 50 or 60Hz via country-specific AC adapter.
- Power consumption: 20W
|
Dimensions |
- SPLITMUX-4K-4RT (desktop)
- WxDxH (in): 7.35x4.98x1.09 (187x126x28 mm)
- SPLITMUX-4K-4RT-R (1RU rackmount) and SPLITMUX-4K-4RT-2R (1RU dual side-by-side rackmount)
- WxDxH (in):
- Without rackmount kit: 7.35x4.98x1.75 (187x126x45 mm)
- With rackmount kit: 19x4.98x1.75 (483x126x45 mm) (excludes cable tray)
- Can be mounted so that the front panel buttons are facing the front or back of the rack.
- Includes cable management tray.
|
Environmental |
- Operating temperature: 32°F to 113°F (0°C to 45°C).
- Storage temperature: -22°F to 140°F (-30°C to 60°C).
- Operating and storage relative humidity: 17 to 90% non-condensing RH.
|
Regulatory Approval |
|
Warranty |
|
Compatible NTI Products |
- Combine NTI's extenders, switches, splitters and cables for complex applications.
- 4K HDMI Extender (ST-C64K-300)
- SPLITMUX-4K-4RT and ST-C64K-300 will work together at resolutions up to 3840x2160 @ 30Hz.
|
