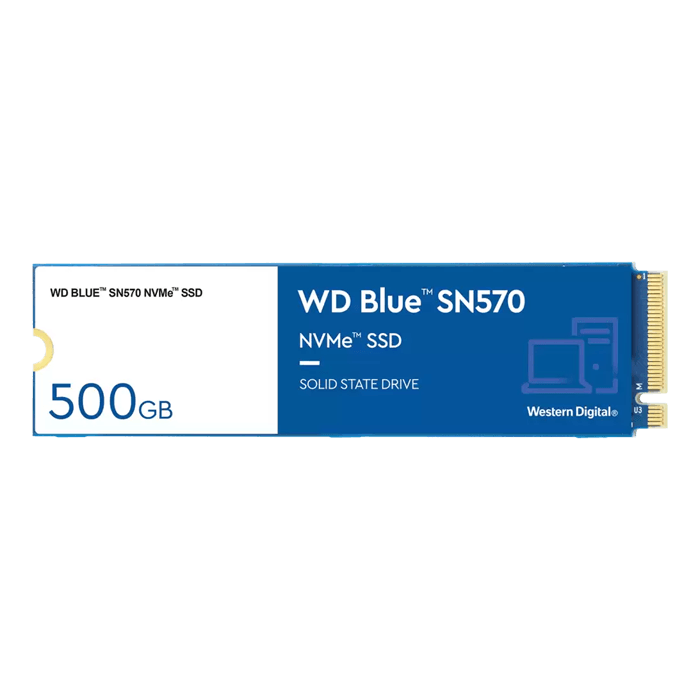

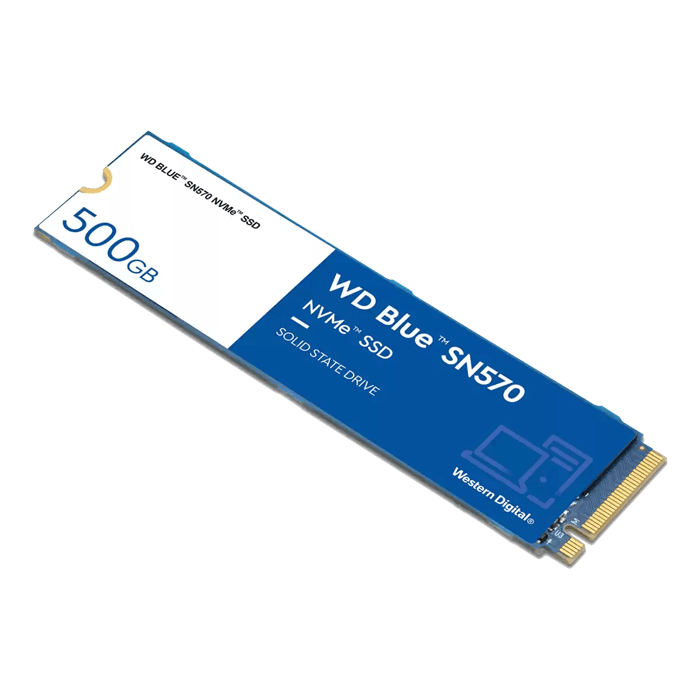

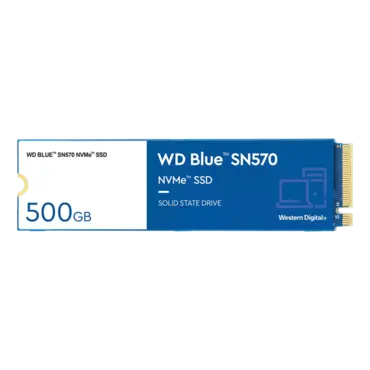

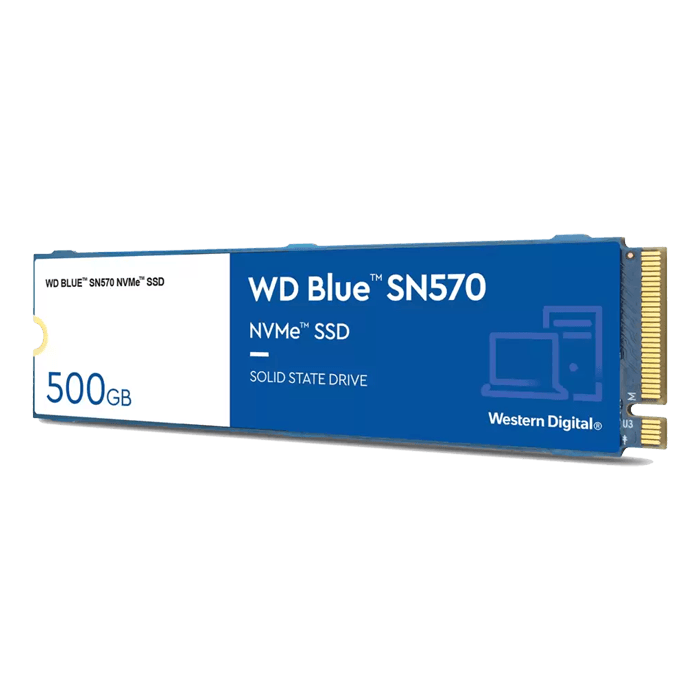

500GB Blue SN570, 3500 / 2300 MB/s, 3D TLC NAND, PCIe NVMe 3.0 x4, M.2 2280 SSD

  • SKU: 14663831
  • Manufacturer: WESTERN DIGITAL
  • MPN: WDS500G3B0C
Starting At
500GB Blue SN570, 3500 / 2300 MB/s, 3D TLC NAND, PCIe NVMe 3.0 x4, M.2 2280 SSD


Stay in the moment and create beyond your expectations with the WD Blue™ SN570 NVMe™ SSD. This powerful internal drive delivers up to 5X the speed of our best SATA SSDs so you can let your imagination flow and worry less about PC lag or load times. Purpose-built for endurance, the WD Blue SN570 SSD delivers reliable data protection while keeping your storage health in check with the downloadable Western Digital® SSD Dashboard3. Whether you’re working on your next passion project or crunching large amounts of data, take advantage of the high performance and capacities up to 2TB in an affordable M.2 2280 form factor to do more, faster.

  • Keep your imagination flowing as you
    create faster while maintaining low power
    consumption. With read speeds up to
    (500GB – 2TB² models), your system
    can run up to 5X faster than our best SATA SSDs
    so you can stay in your creative moment.
  • Remarkable reliability features to help protect
    your content so you can stress less about losing
    your brilliant work.
  • Work with extra confidence and peace of mind
    as the downloadable Western Digital® SSD
    helps you monitor your drive’s
    health, available space, temperature and more.
  • Build your ideal creation engine. Upgrade your
    system or optimize your next custom build with
    the slim M.2 2280 form factor. All you need is a
    PCIe® Gen3 x4 NVMe™ slot
  • Save on space as you pack a lot of performance
    into your small-form factor PC with a singlesided M.2 2280 PCIe® Gen3 x4 NVMe™ SSD4
  • As an industry-leading flash drive manufacturer
    and OEM drive manufacturer, Western Digital
    stands behind WD Blue™ SN570 NVMe™ SSD
    with a 5-year limited warranty5
  • Acronis® True Image™ for Western Digital
    software backs up everything from operating
    systems and applications to settings and
    project files with support for PCs.
Capacity 500GB
Interface M.2 2280 3 PCIe® Gen3 8 Gb/s, up to 4 Lanes
Performance 1
Sequential Read (MB/s) up to
(Queues = 32, Threads = 1)
Sequential Write (MB/s) up to
(Queues = 32, Threads = 1)
Random Read 4KB IOPS up to
(Queues=32, Threads=16)
Random Write 4KB IOPS up to
(Queues=32, Threads=16)
Endurance (TBW) 6 300
Average Active Power 7 90mW
Low Power (PS3) 30mW
Sleep (PS4) (low power) 5mW
Maximum Operating Power 8 4.0W
MTTF (hours) 9 1.5M
Operating Temperatures 10 32°F to 158°F (0°C to 70°C)
Non-operating Temperatures 11 -40°F to 185°F (-40°C to 85°C)
Operating Vibration 5.0 gRMS, 10–2000 Hz, 3 axes
Non-Operating Vibration 4.9 gRMS, 7–800 Hz, 3 axes
Shock 1,500 G @ 0.5 msec half sine
Certifications BSMI, CAN ICES-3(B)/NMB-3(B), CE, FCC, KCC, Morocco,
Limited Warranty 5 5 years
Physical Dimensions
Form Factor M.2 2280
Length 80 ± 0.15mm
Width 22 ± 0.15mm
Height 2.38mm
Weight 6.5g ± 1g
Ordering Information
Model Number WDS500G3B0C
Specifications subject to change without notice

1 Test Conditions: Performance is based on the CrystalDiskMark™ 8.0.1 benchmark, 1000MB LBA range, on an Asus™ ROG Crosshair VIII Hero X570 desktop with AMD® Ryzen 9 3950X 16-Core, 32GB 3200MHz DDR4, Windows® 10 Pro
64-bit 20H1 using Microsoft® StorNVMe™ driver, secondary drive. 1 MB/s = 1 million bytes per second. IOPS = input/output operations per second. Based on internal testing; performance may vary depending upon host device, usage
conditions, drive capacity, and other factors.
2 1GB = 1 billion bytes and 1TB = 1 trillion bytes. Actual user capacity may be less depending on operating environment.
3 Available for download at
4 Backwards compatible with PCIe Gen3 x1, PCIe Gen2 x4, PCIe Gen2 x2, and PCIe Gen2 x1.
5 5 years or Max Endurance (TBW) limit, whichever occurs first. See for regional specific warranty details.
6 Download and installation required. Includes 5-year license for your compatible drive. Redeem within 90-days of purchase. May not be combined with other offers. Limited time offer, see for more details. Offer subject
to change.
7 TBW (terabytes written) values calculated using JEDEC client workload (JESD219) and vary by product capacity.
8 Measured using MobileMark™ 2018 on Dell® Precision 7730 intel® Core™ i5-8300 CPU @ 2.30GHZ 8GB Windows 10 RS5 (1809) Bios 1.13.1.
9 Measured during continuous sequential read or write activity and indicates the average over 1 second intervals.
10 MTTF = Mean Time To Failure based on internal testing using Telcordia™ stress part testing (Telcordia SR-332, GB, 25°C). MTTF is based on a sample population and is estimated by statistical measurements and acceleration algorithms.
MTTF does not predict an individual drive’s reliability and does not constitute a warranty.
11 Operational temperature is measured by thermal sensors in NAND package. The SSD box package is rated up to 60ºC.
12 Non-operational storage temperature does not guarantee data retention.
