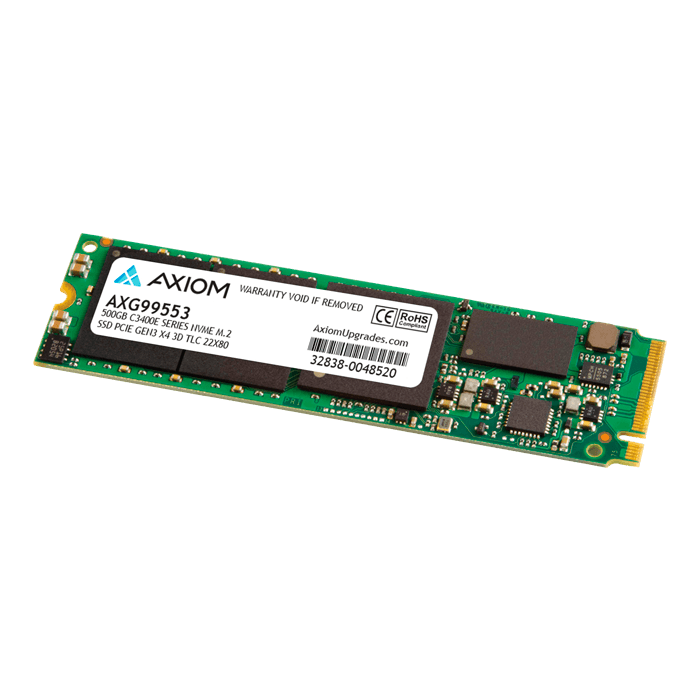

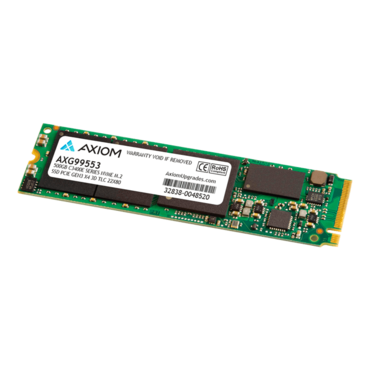

500GB C3400e, 3400 / 2200 MB/s, 3D TLC NAND, PCIe NVMe 3.0 x4, SED, TCG Opal SSC, M.2 2280 SSD - TAA Compliant
Quantity:
- SKU: 13264086
- Manufacturer: AXIOM
- MPN: AXG99553
- Availability: TEMPORARILY OUT OF STOCK
Starting At
$68.22
| Capacity | 500GB |
| Features |
• Silicon Motion 3D TLC Flash controller • SLC caching accelerates burst performance • StaticDataRefresh technology ensures data integrity • Data shaping increases endurance • Intelligent garbage collection routines for advanced free space management • NVMe Deallocate function support (NVMe equivalent of TRIM command) • S.M.A.R.T. support • Performance optimized LDPC engine • PCIe Gen3 x4 NVMe 1.3 interface • Temperature sensor • Industry-standard 512 byte sector support • RoHS-compliant package • 3D TLC NAND |
| Performance |
• Sequential Read: Up to 3400MB/s • Sequential Write: Up to 2200MB/s • Random Read: Up to 320K IOPS (4K block size) • Random Write: Up to 330K IOPS (4K block size) |
| Endurance |
• TBW: Up to 688TB • DWPD: 1.08 (3y) |
| Security |
• AES compliant Data Encryption • IEEE1667 encryption support • TCG OPAL 2.0 Support • Self-encrypting drive (SED) • NVMe Security Erase support |
| Reliability |
• MTBF: 1.5 million device hours* • Built-in Low Density Parity Check (LDPC) ECC • Global wear-leveling evens program/erase counts across data blocks to extend lifespan • End-to-end data path protection • Uncorrectable Bit Error Rate: =1 sector per 1015 bits read |
| Electrical/Mechanical |
• +3.3VDC (±5%) power supply • Power Consumption: up to 5.7W (Active), 0.72W (Idle) • Dimensions: M.2: 22.0 mm x 80.0 mm • Weight: 0.088lb |
| Environmental |
• Operating temperature: 0-70°C • Non-Operating temperature: -40-85°C • Operating humidity: 5-95% relative • Shock: 1500G/0.5ms • Vibration: 2-500Hz, 3.1G |
| RoHS Compliant | |
| TAA Compliant | |
|
Note: As used for storage capacity, one gigabyte (GB) = one billion bytes. Total accessible capacity varies depending on operating environment. Specifications are subject to change without notice. *Based on Telcordia SR-332 reliability prediction procedure. |
|
