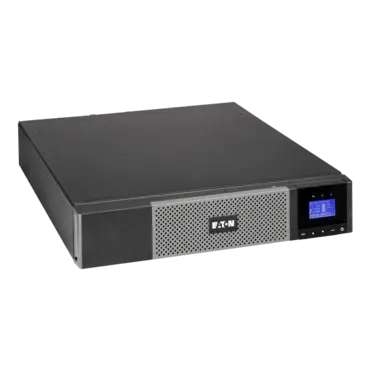

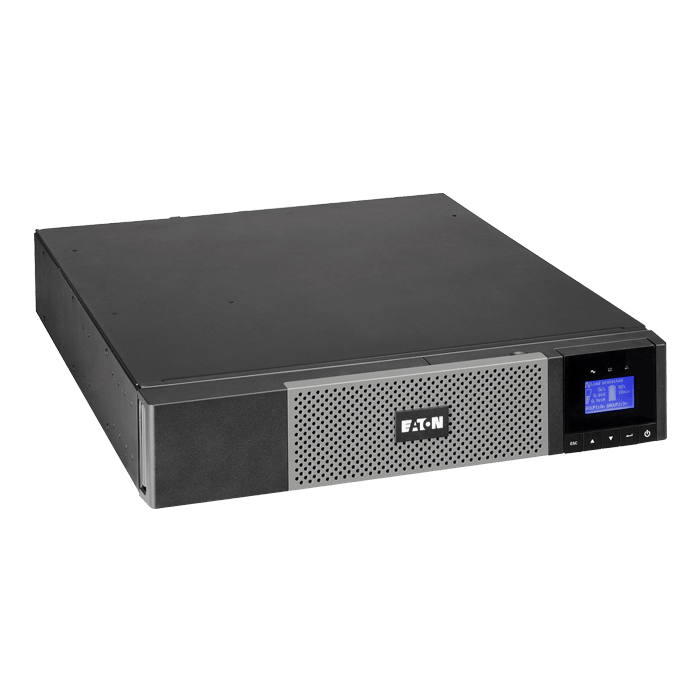

5PX3000RTN, 3000VA/2700W, 120V, 7 Outlets, Black/Silver, Tower/2U Rackmount UPS
Quantity:
- SKU: 6484578
- Manufacturer: EATON
- MPN: 5PX3000RTN
- Availability: TEMPORARILY OUT OF STOCK
Starting At
$3,383.30
| GENERAL SPECIFICATIONS | |
|---|---|
| PRODUCT NAME | Eaton 5PX UPS |
| CATALOG NUMBER | 5PX3000RTN |
| UPC | 743172039491 |
| PRODUCT LENGTH | 25.5 IN |
| PRODUCT HEIGHT | 3.4 IN |
| PRODUCT WIDTH | 17.4 IN |
| PRODUCT WEIGHT | 87 LB |
| WARRANTY | 3 year on electronics, 3 year on batteries with registration |
| COMPLIANCES | FCC Part 15
CISPR22 Class A / FCC part 15 Class A FCC Part 15 Class A Subpart B Sections 15.107b , 15.109b |
| CERTIFICATIONS | EN 62040-2:2006
UL 1778 UL 497A cUL Listed UL Listed |
| CATALOG NOTES | NETWORK MS CARD IS NOT INSTALLED. Add up to 4 extended battery modules (EBM) |
| ELECTRICAL OUTPUT | |
| RECEPTACLE | (6) 5-20R; (1) L5-30R |
| VOLTAGE | 120V |
| OUTPUT POWER FACTOR | 50/60 Hz ±0.1 % (autosensing) |
| OUTPUT VOLTAGE RANGE | 102-132 Vac |
| OUTPUT WAVEFORM | Sine wave |
| OUTPUT NOMINAL VOLTAGE | 120V default (100/120/125V) |
| FEED TYPE | AC |
| ADDITIONAL SPECIFICATIONS | |
| VA RATING | 3000 VA |
| TOPOLOGY | Line-interactive |
| WATTAGE | 2700 W |
| COLOR | Black/silver |
| ELECTRICAL INPUT | |
| INPUT NOMINAL VOLTAGE | 120V default (100/110/120/127V) |
| INPUT POWER FACTOR | 0.9 |
| INPUT CORD LENGTH | 10 ft |
| INPUT VOLTAGE RANGE | 89–151 Vac (adjustable to 70–153 Vac) |
| INPUT FREQUENCY RANGE | 47–70 Hz (50 Hz system), 56.5–70 Hz (60 Hz system), 40 Hz in low-sensitivity mode |
| COMMUNICATIONS | |
| EXPANSION SLOTS | One slot; Network Card-MS is optional |
| USER INTERFACE | LCD graphical display |
| EXPANSION SLOTS | One slot; Network Card-MS is optional |
| SOFTWARE COMPATIBILITY | Eaton Intelligent Power Manager (included) |
| BATTERY | |
| RUNTIME GRAPH | View runtime graph |
| EXTENDED BATTERY CAPABILITY | VRLA, Hot-swappable internal batteries |
| ENVIRONMENTAL | |
| ALTITUDE | Up to 10,000 ft (3000m) without de-rating |
| NOISE LEVEL | <50 dB at 1 meter |
| TEMPERATURE RANGE | 0° to 40°C (32° to 104°F) |
| BTU RATING | Online: 305, Battery: 2047 |
| RELATIVE HUMIDITY | 20-95% non-condensing |
