- Power Supply: VDD = 1.2V Typical
- VDDQ = 1.2V Typical
- VPP = 2.5V Typical
- VDDSPD = 2.2V to 3.6V
- Nominal and dynamic on-die termination (ODT) for data, strobe, and mask signals
- Low-power auto self refresh (LPASR)
- Data bus inversion (DBI) for data bus
- On-die VREFDQ generation and calibration
- Single-rank
- On-board I2 serial presence-detect (SPD) EEPROM
- Temperature sensor with integrated SPD
- 16 internal banks; 4 groups of 4 banks each
- Fixed burst chop (BC) of 4 and burst length (BL) of 8 via the mode register set (MRS)
- Selectable BC4 or BL8 on-the-fly (OTF)
- Fly-by topology
- Terminated control command and address bus
- PCB: Height 1.23” (31.25mm)
- RoHS Compliant and Halogen-Free
Brand | Kingston |

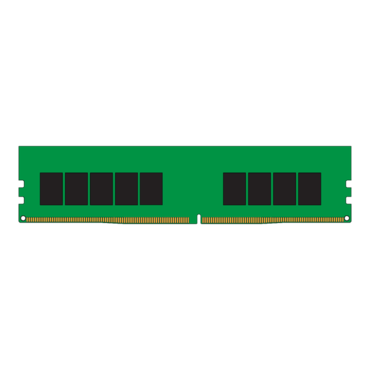

Model | KSM32ES8/8HD |
Capacity | 8GB |
Form Factor | DIMM |
Type | 288-Pin DDR4 SDRAM |
Speed | DDR4-3200 |
CAS Latency | 22 |
Timing | 22-22-22 |
Voltage | 1.2V |
ECC | Yes |
Buffered/Registered | Unbuffered |
Rank | 1Rx8 |
Heat Spreader | No |
