AVR CP685AVR, 685VA/390W, 120V, 8 Outlets, Black, Tower UPS
Quantity:
- SKU: 271908
- Manufacturer: CYBERPOWER SYSTEMS
- MPN: CP685AVR
- Availability: TEMPORARILY OUT OF STOCK
Starting At
$98.26

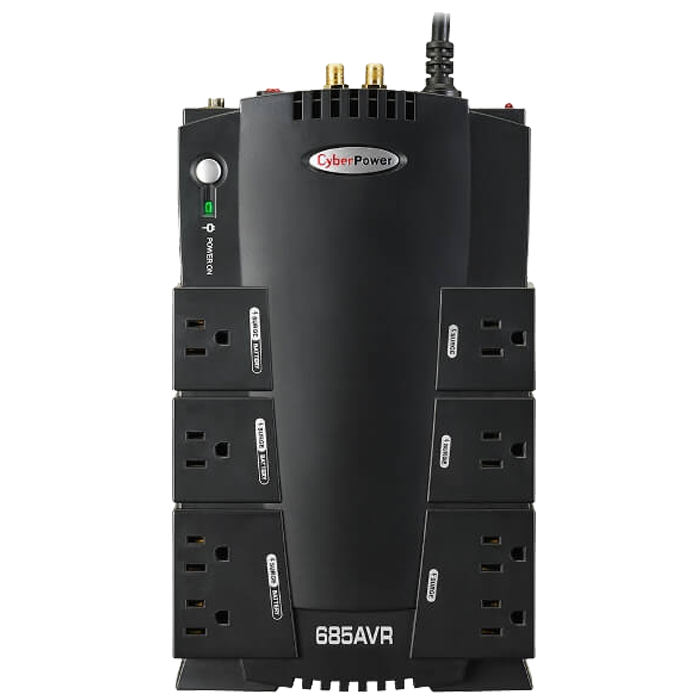

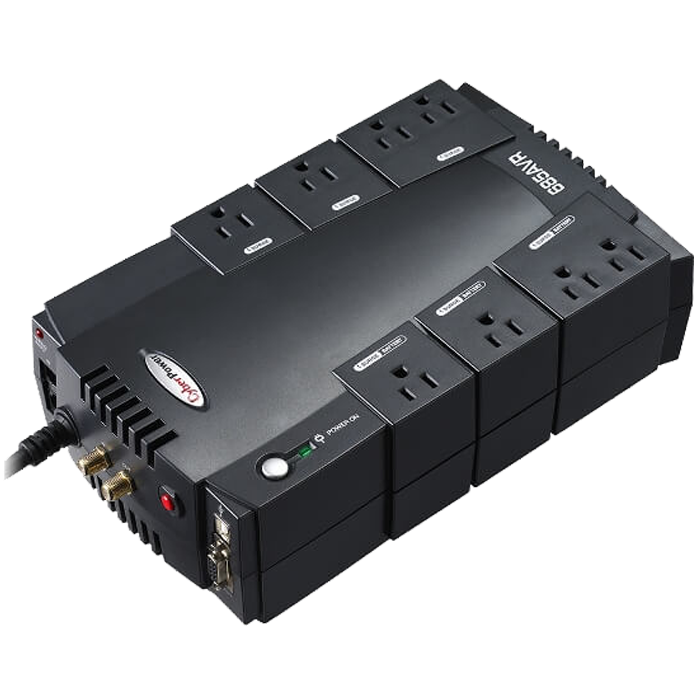

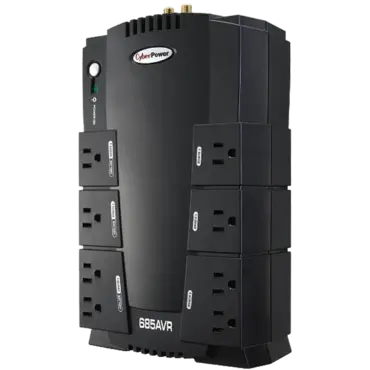

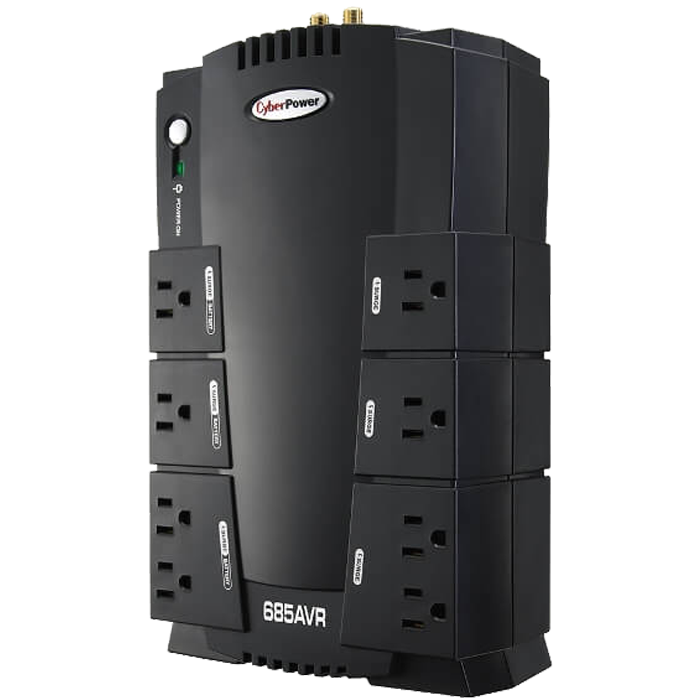

AVR CP685AVR, 685VA/390W, 120V, 8 Outlets, Black, Tower UPS
The CyberPower AVR Series CP685AVR uninterruptible power supply (UPS) safeguards small office workstations, networks and home entertainment systems against surges, spikes, sags, and brownouts, protecting equipment and valuable data during a power outage. Its automatic voltage regulation (AVR) monitors incoming AC power and maintains a safe voltage level. This UPS system is ENERGY STAR® qualified with patented GreenPower UPS™ Bypass circuitry to save on energy costs by reducing energy consumption and heat buildup. The CP685AVR unit has a capacity of 685VA/390Watts, eight (8) NEMA 5-15R receptacles, widely-spaced to accommodate transformer-based plugs. Its compact design allows for horizontal or vertical placement, or it can be conveniently mounted on a wall. This UPS has a maintenance-free, user-replaceable 12V/8Ah battery and offers connectivity via one (1) HID USB and one (1) DB9 serial port. Protection for phone/network (RJ11/RJ45) and cable/coax (RG-6) is included. EMI/RFI filters increase the immunity of the load to noise disturbances. PowerPanel® Personal Edition Smart Management software is included to monitor the vitals of the UPS and safely shut down the system in case of a power outage.
The CyberPower AVR Series CP685AVR uninterruptible power supply (UPS) safeguards small office workstations, networks and home entertainment systems against surges, spikes, sags, and brownouts, protecting equipment and valuable data during a power outage. Its automatic voltage regulation (AVR) monitors incoming AC power and maintains a safe voltage level. This UPS system is ENERGY STAR® qualified with patented GreenPower UPS™ Bypass circuitry to save on energy costs by reducing energy consumption and heat buildup. The CP685AVR unit has a capacity of 685VA/390Watts, eight (8) NEMA 5-15R receptacles, widely-spaced to accommodate transformer-based plugs. Its compact design allows for horizontal or vertical placement, or it can be conveniently mounted on a wall. This UPS has a maintenance-free, user-replaceable 12V/8Ah battery and offers connectivity via one (1) HID USB and one (1) DB9 serial port. Protection for phone/network (RJ11/RJ45) and cable/coax (RG-6) is included. EMI/RFI filters increase the immunity of the load to noise disturbances. PowerPanel® Personal Edition Smart Management software is included to monitor the vitals of the UPS and safely shut down the system in case of a power outage.
| General | |
| UPS Topology | Line Interactive |
| Energy Saving | GreenPower UPS™ Bypass Technology |
| ENERGY STAR® Qualified | Yes |
| Input | |
| Voltage | 90Vac - 140Vac |
| Frequency | 60Hz ± 3Hz |
| Plug Type | NEMA 5-15P |
| Plug Style | Right Angle, 45° Offset Right |
| Cord Length | 6' |
| Output | |
| VA | 685 |
| Watts | 390 |
| Automatic Voltage Regulation | Yes |
| On Battery Voltage | 120Vac ± 5% |
| On Battery Frequency | 60Hz ± 1% |
| On Battery Waveform | Simulated Sine Wave |
| Outlets - Total | 8 |
| Outlets - Battery & Surge Protected | 4 |
| Outlets - Surge-Only Protected | 4 |
| Outlets - Widely Spaced | 4 |
| Transfer Time | 4ms |
| Battery | |
| Runtime at Half Load (min) | 10 |
| Runtime at Full Load (min) | 2 |
| Battery Type | Sealed Lead-Acid |
| Battery Size | 12V/8AH |
| Replacement Battery | RB1280 |
| Battery Quantity | 1 |
| User Replaceable | Yes |
| Typical Recharge Time | 8 Hours |
| Surge Protection & Filtering | |
| Surge Suppression | 890 Joules |
| Phone RJ11 / Ethernet RJ45 | 1-In, 1-Out (Combo) |
| Coax Protection RG6 | 1-In, 1-Out |
| Management & Communications | |
| USB Port | Yes |
| HID Compliant USB Port | Yes |
| Serial Port | Yes |
| Management Cable | USB Cable |
| LED Indicators | Power On, Wiring Fault |
| Audible Alarms | On Battery, Low Battery, Overload |
| Software | PowerPanel® Personal Edition |
| Physical | |
| Form Factor | Compact |
| Keyhole Mounting Slots | Yes |
| Dimensions (WxHxD) (in.) | 11 x 6.625 x 3.5 |
| Weight (lbs.) | 14.0 |
| Environmental | |
| Operating Temperature | 32°F to 95°F / 0°C to 35°C |
| Operating Relative Humidity | 0% - 90% non-condensing |
| Certifications | |
| Safety | UL1778, cUL 107.3, FCC DOC Class B |
| Environmental | RoHS Compliant |
| Warranty | |
| Product Warranty | 3 Years Limited |
| Connected Equipment Guarantee | Lifetime |
| CEG Amount | $125,000 |
