Aspect 12 White 120mm, 1200 RPM, 32 CFM, 18.3 dBA, Cooling Fan

  • SKU: 14512571
  • Manufacturer: Fractal Design
  • MPN: FD-F-AS1-1202
Starting At

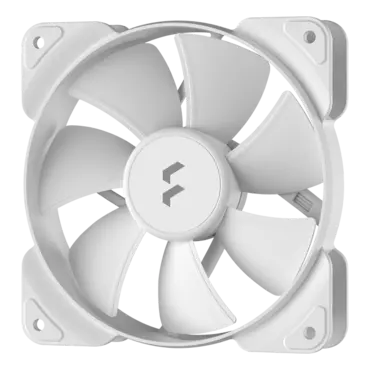

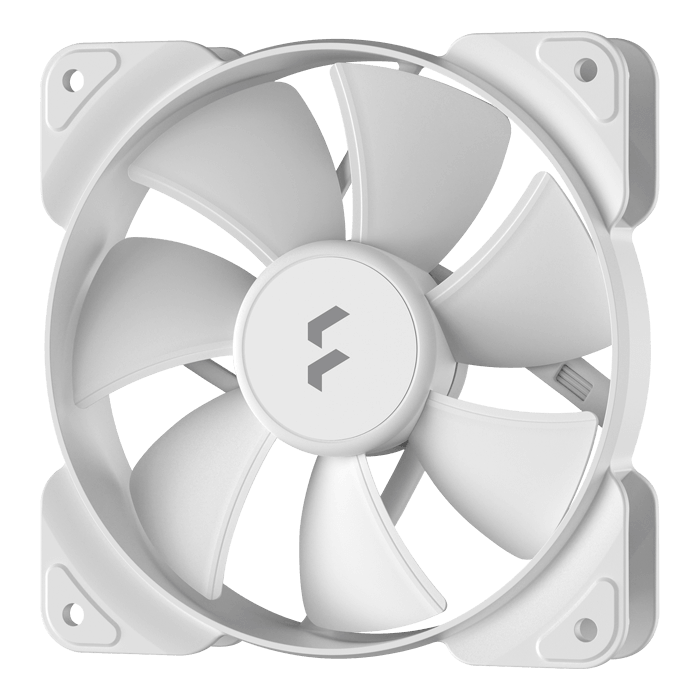

Aspect 12 White 120mm, 1200 RPM, 32 CFM, 18.3 dBA, Cooling Fan

Fractal Design Aspect 12 White (FD-F-AS1-1202). Building on the core functionality of market favorites like Dynamic and Prisma, the Aspect series brings an exciting new aesthetic to the Fractal range of fans. Notable features include aerodynamic stator struts for lower turbulence, Trip Wire technology for enhanced blade efficiency, rifle bearings and built-in chaining support to simplify cable management.

  • Less turbulence thanks to aerodynamic stator struts
  • Trip Wire technology introduces a micro-turbulent layer for enhanced blade efficiency
  • Supports chaining to simplify cable management
Size 120 x 120 x 25 mm
Screw hole pattern 105 x 105 mm
Power connector 3-pin
Bearing Rifle
Number of blades 7
Rotational speed 1200 RPM
Noise level 18.3 dB(A)
Max airflow (CFM) 32 CFM
Max airflow (m³/h) 54.4 m³/h
Max pressure 1.20
Fan typical input power 0.96 W
Fan max input current 0.16 A
Fan input voltage 12 V
Minimum startup voltage 7 V
MTTF 90.000 h
Unit weight 135 g
Cable length 500 mm
Cable type Black/white ribbon (allows chaining)
Package contents Aspect Fan, 4x Fan screw
Package weight 158 g
Packaging dimensions including hanging tab 123 x 192 x 30 mm
Packaging dimensions excluding hanging tab (WxHxD) 123 x 150 x 30 mm
EAN White - 7340172703297
UPC White - 843276103293
JAN White - 4537694287463
Product code White - FD-F-AS1-1202
