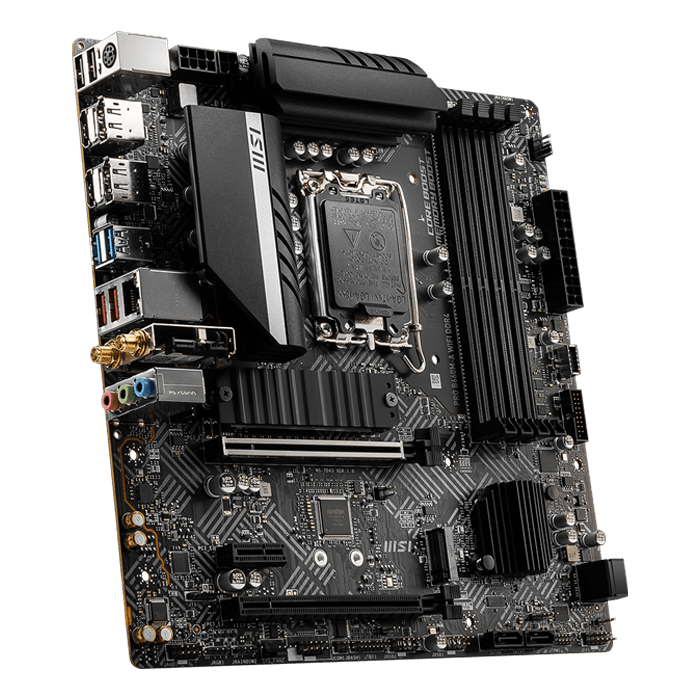

B660M-A WIFI DDR4 PRO, Intel® B660 Chipset, LGA 1700, 2x DP, microATX Motherboard
B660M-A WIFI DDR4 PRO, Intel® B660 Chipset, LGA 1700, 2x DP, microATX Motherboard
B660M-A WIFI DDR4 PRO, Intel® B660 Chipset, LGA 1700, 2x DP, microATX Motherboard
B660M-A WIFI DDR4 PRO, Intel® B660 Chipset, LGA 1700, 2x DP, microATX Motherboard
B660M-A WIFI DDR4 PRO, Intel® B660 Chipset, LGA 1700, 2x DP, microATX Motherboard

B660M-A WIFI DDR4 PRO, Intel® B660 Chipset, LGA 1700, 2x DP, microATX Motherboard

Quantity:
  • SKU: 14791999
  • Manufacturer: MSI
  • MPN: PROB660MAWID4
  • Availability: USUALLY SHIPS WITHIN 3-5 DAYS
Starting At
$177.08
As low as $14.76/ Month*
Quantity:
B660M-A WIFI DDR4 PRO, Intel® B660 Chipset, LGA 1700, 2x DP, microATX Motherboard

PRO series helps users work smarter by delivering an efficient and productive experience. Featuring stable functionality and high-quality assembly, PRO series motherboards provide not only optimized professional workflows but also less troubleshooting and longevity.

  • Supports 12th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1700 socket
  • Supports DDR4 Memory, up to 4800+(OC) MHz
  • Core Boost : With premium layout and digital power design to support more cores and provide better performance
  • Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility
  • Lightning Fast Experience: PCIe 4.0, Lightning Gen4 x4 M.2 with M.2 Shield Frozr
  • Premium Thermal Solution: 7W/mK pad, additional choke thermal pad and M.2 Shield Frozr are built for high performance system and non-stop works
  • 2.5G LAN with LAN Manager and Intel Wi-Fi 6 Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
  • Audio Boost: Reward your ears with studio grade sound quality
CPU
  • Supports 12th Gen Intel ® Core™ Processors
  • Processor socket LGA1700
  1. Please go to www.msi.com to get the newest support status as new processors are released.
Chipset

Intel ® B660 Chipset
Memory
  • 4x DDR4 memory slots, support up to 128GB 1
  • Supports 1R 2133/2666/3200 MHz (by JEDEC & POR)
  • Max overclocking frequency:
    • 1DPC 1R Max speed up to 4800+ MHz
    • 1DPC 2R Max speed up to 4000+ MHz
    • 2DPC 1R Max speed up to 4000+ MHz
    • 2DPC 2R Max speed up to 3600+ MHz
  • Supports Dual-Channel mode
  • Supports non-ECC, un-buffered memoryy
  • Supports Intel ® Extreme Memory Profile (XMP)
  1. Please refer to www.msi.com for more information on compatible memory.
Expansion Slot
  • 2x PCIe x16 slots
    • PCI_E1 (From CPU)
      • Support PCIe 4.0 x16
    • PCI_E3 (From B660 chipset)
      • Support PCIe 3.0 x4
  • 1x PCIe 3.0 x1 slot (Fom B660 chipset)
Onboard Graphics
  • 2x HDMI 2.1 with HDR ports, supporting a maximum resolution of 4K 60Hz 1 / 2
  • 2x DisplayPort 1.4 ports with HBR3, supporting a maximum resolution of 4K 60 1 / 2
  1. Available only on processors featuring integrated graphics.
  2. Graphics specifications may vary depending on the CPU installed.
Multi-GPU
  • Supports AMD ® CrossFire ™ Technology
Audio

Realtek ® ALC897 Codec

  • 7.1-Channel High Definition Audio
Storage
  • 4x SATA 6Gb/s ports (From B660 chipset)
  • 2x M.2 slots (Key M)
    • M2_1 slot (From CPU)
      • Supports up to PCIe 4.0 x4
      • Supports 2242/ 2260/ 2280 storage devices
    • M2_2 slot (From B660 chipset)
      • Supports up to PCIe 4.0 x4
      • Supports up to SATA 6Gb/s
      • Supports 2242/ 2260/ 2280 storage devices
      • Supports Intel® Optane™ Memory
  • Support Intel ® Smart Response Technology for Intel Core™ processors
  1. SATA8 will be unavailable when installing M.2 SATA SSD in the M2_2 slot.
RAID
  • Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
LAN
  • 1x Realtek ® RTL8125BG 2.5Gbps LAN controller
Wi-Fi & Bluetooth ®

Intel ® Wi-Fi 6

  • The Wireless module is pre-installed in the M.2 (Key-E) slot
  • Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz (160MHz) up to 2.4Gbps
  • Supports 802.11 a/ b/ g/ n/ ac/ ax
  • Supports Bluetooth® 5.2
Power Connectors
  • 1x 24-pin ATX main power connector
  • 1x 8-pin ATX 12V power connector
  • 1x 4-pin ATX 12V power connector
Internal USB Connectors
  • 1x USB 3.2 Gen 1 5Gbps Type-C connector (From B660 chipset)
  • 1x USB 3.2 Gen 1 5Gbps Type-A connector (From ASM1074)
    • Supports additional 2 USB 3.2 Gen 1 5Gbps ports
  • 2x USB 2.0 Type-A connectors (From B660 chipset)
    • Supports additional 4 USB 2.0 ports
Fan Connectors
  • 1x 4-pin CPU fan connector
  • 1x 4-pin water-pump fan connector
  • 2x 4-pin system fan connectors
System Connectors
  • 1x Front panel audio connector
  • 2x System panel connectors
  • 1x Chassis Intrusion connector
  • 1x TPM module connector
  • 1x Tuning Controller connector
  • 1x TBT connector (supports RTD3)
  • 1x Serial port
Jumpers
  • 1x Clear CMOS jumper
LED Features
  • 1x 4-pin RGB LED connector
  • 2x 3-pin RAINBOW LED connectors
  • 4x EZ Debug LED
Back panel ports
  • 1x Keyboard / Mouse
  • 2x DisplayPort
  • 2x USB 3.2 Gen 1 5Gbps Type-A
  • 1x LAN port
  • 2x Wi-Fi / Bluetooth
  • 3x Audio connector
  • 2x USB 2.0
  • 2x HDMI
  • 2x USB 3.2 Gen 2 10Gbps Type-A
Dimensions
  • Micro-ATX Form Factor
  • 9.6 in. x 9.6 in. (24.4 cm x 24.4 cm)
