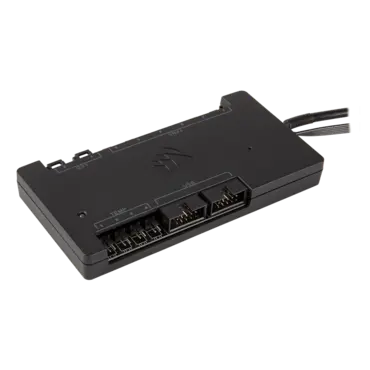

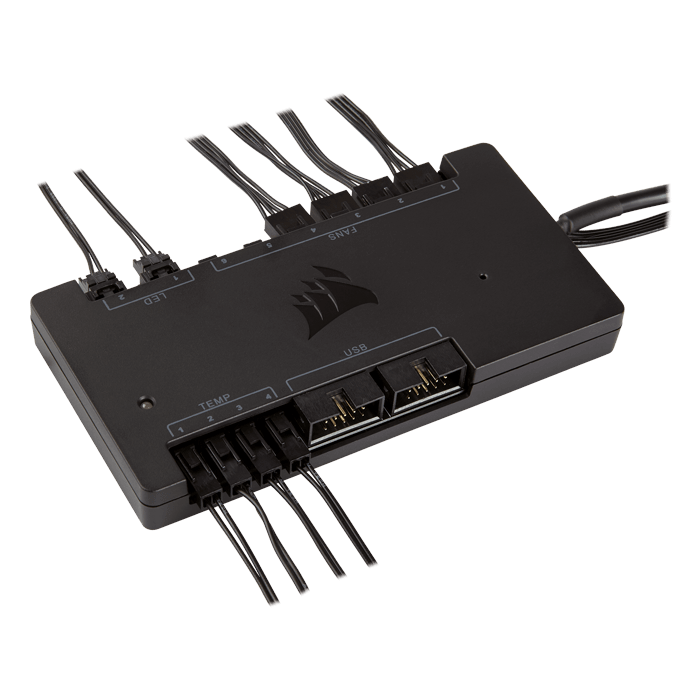

Commander PRO, 6-Channels Fan, Digital Fan and RGB Lighting Controller

Specifications

• Power input:
  • Logic: 2.97V to 3.63V, 4.5V to 5.5V
  • Fan: 11.4V to 12.6V
  • RGB LED: 4.5V to 5.5V
• Cable:
  • USB: 440mm
  • SATA Power: 465mm
  • Thermal sensor: 610mm
  • Fan extension: 300mm

• Dimensions: 133mm x 69mm x 15.5mm
• RGB LED channels: Two 3-pin connector
• Max. RGB LED strip per channel: 4
• Max. RGB fan per channel: 6 through 1 RGB LED hub

Package contents

• x1 Commander PRO
• x2 RGB LED hub cables
• x4 Thermal sensors
• x4 Fan extension cables
• x2 Mounting tape
• x1 Installation guide

Compatibility

• Windows 10, Windows 8, Windows 7
• Requires a motherboard with an internal USB 2.0 header
• Requires CORSAIR LINK software version 4.7 or higher
