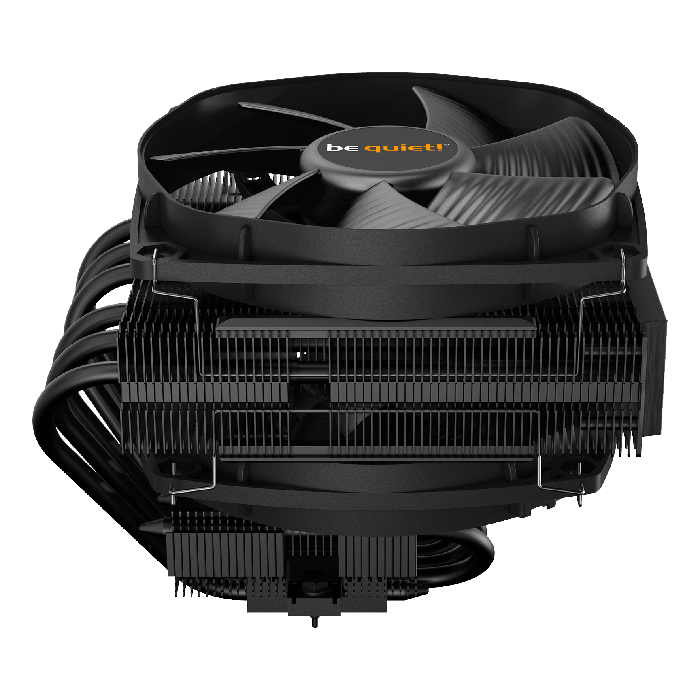

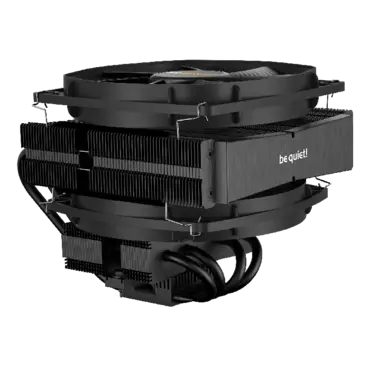

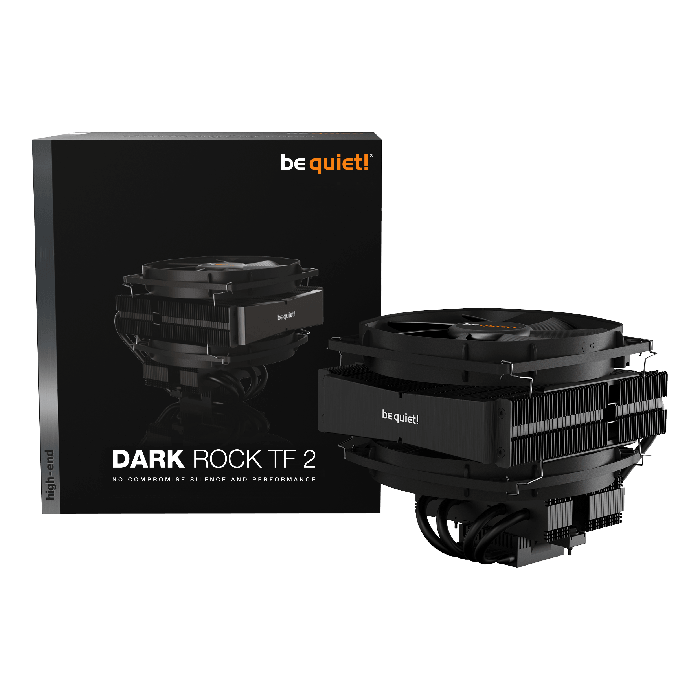

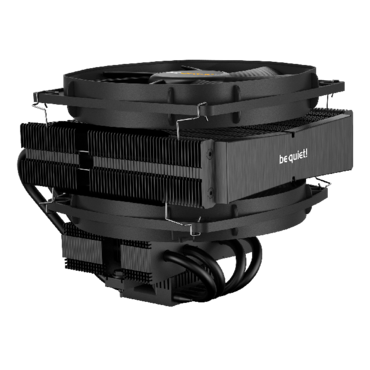

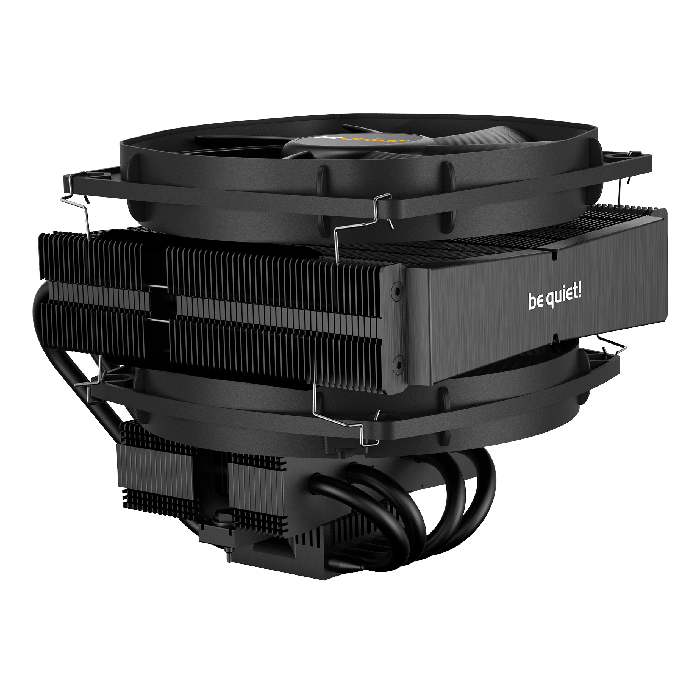

Dark Rock TF 2 offers extreme cooling performance for the CPU and surrounding components as well as virtually inaudible operation.
General data | |
Model | Dark Rock TF 2 |
Overall dimensions without mounting material (L x W x H), (mm) | 163 x 140 x 134 |
Total weight (kg) | 0.945 |
TDP (W) | 230 |
Socket compatibility AMD | AM4 / AM3(+) |
Socket compatibility Intel | 1200 / 2066 / 1150 / 1151 / 1155 / 2011(-3) Square ILM |
Fan model, number | 1x Silent Wings 3 135mm PWM / 1x Silent Wings 135mm PWM |
Decoupled fan mounting | - |
Overall noise level (dB(A)) @ 50/75/100% (rpm) | 11.1 / 19.7 / 27.1 |
Heatsink specifications | |
Dimensions (L x W x H), (mm) | 163 x 140 x 109 |
Number of fins | top: 62 / bottom: 64 |
Fin material | Aluminum |
Base material | Copper |
CPU contact surface | CNC machined |
Heatpipe number / Diameter (mm) | 6 / 6 |
Color | Black |
Surface treatment | Ceramic coating |
Fan specifications | |
Fan dimensions (mm) | 135 x 135 x 22 / 135 x 135 x 25 |
Speed @ 100% PWM /12V (rpm) | 1400 / 1300 |
Bearing technology | Fluid Dynamic Bearing |
Motor technology | 6-pole fan motor |
Rated Voltage (V) | 12 |
Input current (A) | 0.2 / 0.4 |
Input power (W) | 2.4 / 4.8 |
Connector | 4-pin PWM |
Cable length (mm) | 220 |
Lifespan (h / 25°C) | 300,000 |
Accessories | |
Thermal grease | Included |
Mounting set | Intel & AMD |
Y-Cable | - |
User manual languages | CN, DE, EN, ES, FR, JP, PL, RU, TW |
Service | |
Warranty (Years) | 3 |
International hotline / free of charge | - |
Logistics data, RRP | |
Article number | BK031 |
EAN code | 4260052188705 |
Dimensions, package (L x W x H), (mm) | 210 x 190 x 230 |
Gross weight, package (kg) | 1,615 |
