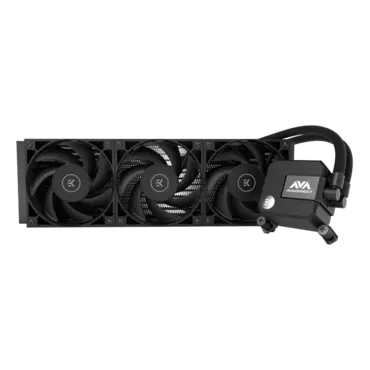

EK-AIO Basic 360, 360mm Radiator, Liquid Cooling System, OEM packaging

Quantity:
  • SKU: 14031101
  • Manufacturer: ekwb
  • MPN: 3831109848791
  • Availability: IN STOCK
Starting At
$120.99
As low as $3.90/ Month*
Quantity:
Technical Specifications: - Radiator Dimensions: 275 x 120 x 27 mm
- Radiator Material: Aluminum
- Fan Compatibility: 120 mm
- Pump Unit Dimensions: 88 x 70 x 53 mm
- Pump Unit Material: PETG and ABS Housing, Copper Cold plate, Steel Mounting Pump
- Pump Speed Range: 850 - 2600 RPM ± 10%
- Pump PWM Range: 20 - 100%
- Pump Cable Length: 50 mm
- Tubing Material: Ultra-Low Evaporation Rubber with Nylon Braided Sleeve
- Tubing Length: 400 mm
- Fan Dimensions: 120 x 120 x 25mm
- Fan Speed Range: 550 - 2200 ± 10%
- Fan Noise Level: 33,5dBA (at maximum speed)
- Fan Static Pressure: 2,89 mm H20 = 28,9 Pa (at maximum speed)
- Fan Air Flow: 77 CFM = 131 m³/h (at maximum speed)
- Fan Cable Length: 500 mm
System Requirements: - 4-Pin PWM Header for pump and fan operation
Enclosed: - EK-AIO Basic 360 unit
- 3x EK-Vardar S 120 Dark Edition
- Tube of Thermal Paste
- Mounting Kit
Mounting kit:

Zip Bag 1:
- 12x Phillips Head Screw UNC 6-32 x 30mm (5 mm thread length)
- 12x Phillips Head Screw UNC 6-32 x 6mm
- 12x Phillips Head Screw UNC 6-32 x 34mm

Zip Bag 2:
- 4x Thumb nut (Intel / AMD)
- 4x Spring

Zip Bag 3:
- 4x Mounting screws (Intel 1150,1151,1155,1156,1200 / AMD AM4 socket)

Zip Bag 4:
- 4x Mounting screws (Intel 2011,2011-3,2066)

Zip Bag 5:
- 2x Intel Mounting Bracket

Zip Bag 6:
- 2x AMD Mounting Bracket

Zip Bag 7:
- 5x Mounting screws for Brackets M4x6mm

CPU Socket Support: - Intel Sockets LGA: 1150, 1151, 1155, 1156, 1200, 2011, 2011-3, 2066
- LGA 1700 Compatible (Extra LGA 1700 bracket required, please contact manufacture customer service for support at ekwb.com/customer-care)
- AMD Sockets: AM4
Warranty  5 Years Limited International Warranty
