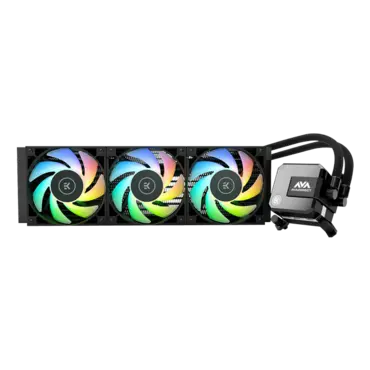

EK-AIO Elite 360 D-RGB, 360mm Radiator, Liquid Cooling System, OEM packaging

Quantity:
  • SKU: 14031117
  • Manufacturer: ekwb
  • MPN: 3831109848777
  • Availability: IN STOCK
Starting At
$200.99
As low as $6.48/ Month*
Quantity:
Technical Specifications: - Radiator Dimensions: 395 x 120 x 27 mm
- Radiator Material: Aluminum
- Fan Compatibility: 120 mm
- Pump Unit Dimensions: 88 x 70 x 64 mm
- Pump Unit Material: Black nickel Housing, Copper Cold plate, Steel Mounting Pump
- Pump Speed Range: 1000 - 3300 RPM ± 10%
- Pump PWM Range: 25 - 100%
- Pump Cable Length: 50 mm
- Pump Unit RGB Type: 5V Digital (Addressable)
- Pinout: 5V, D, Empty, Ground Pump RGB Cable Length: 50 mm
- Tubing Material: Ultra-Low Evaporation Rubber with Nylon Braided Sleeve
- Tubing Length: 400 mm
- Fan Dimensions: 120 x 120 x 25mm
- Fan Speed Range: 550 - 2200 ± 10%
- Fan Noise Level: 36,4dBA (at maximum speed)
- Fan Static Pressure: 2,89 mm H20 = 28,9 Pa (at maximum speed)
- Fan Air Flow: 66,04 CFM = 112,20 m³/h (at maximum speed)
- Fan Cable Length: 500 mm
- Fan RGB Type: 5V Digital (Addressable) Pinout: 5V, D, Empty, Ground
- Fan RGB Cable Length: 50 mm
System Requirements: - 4-Pin PWM Header for pump and fan operation
- 3-Pin Addressable 5V D-RGB header
Enclosed: - EK-AIO Elite 360 D-RGB unit
- EK-Vardar S 120ER D-RGB (6pcs)
- EK-Hub PWM + D-RGB
- Tube of Thermal Paste
- Mounting Kit
Mounting kit:

Zip Bag 1:
- 12x Phillips Head Screw UNC 6-32 x 30mm (5 mm thread length)
- 12x Phillips Head Screw UNC 6-32 x 6mm
- 12x Phillips Head Screw UNC 6-32 x 34mm

Zip Bag 2:
- 4x Thumb nut (Intel / AMD)
- 4x Mounting thumb screw for Intel LGA 115x / AMD AM4 socket
- 4x Mounting thumb screw for Intel LGA 20XX socket
- 4x Spring
- 4x Mounting Plate Phillips Head M4x4mm (for the installation of mounting brackets)

Zip Bag 3:
- 1x Intel LGA 115x Backplate
- 2x Intel mounting bracket
- 2x AMD mounting bracket

CPU Socket Support: - Intel Sockets LGA: 1150, 1151, 1155, 1156, 1200, 2011, 2011-3, 2066
- LGA 1700 Compatible (Extra LGA 1700 bracket required, please contact manufacture customer service for support at ekwb.com/customer-care)
- AMD Sockets: AM4
Warranty  5 Years Limited International Warranty
