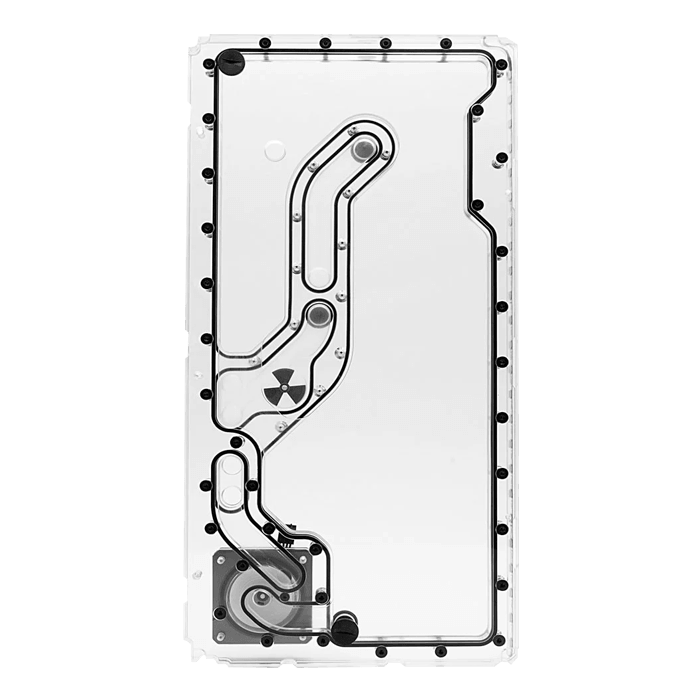

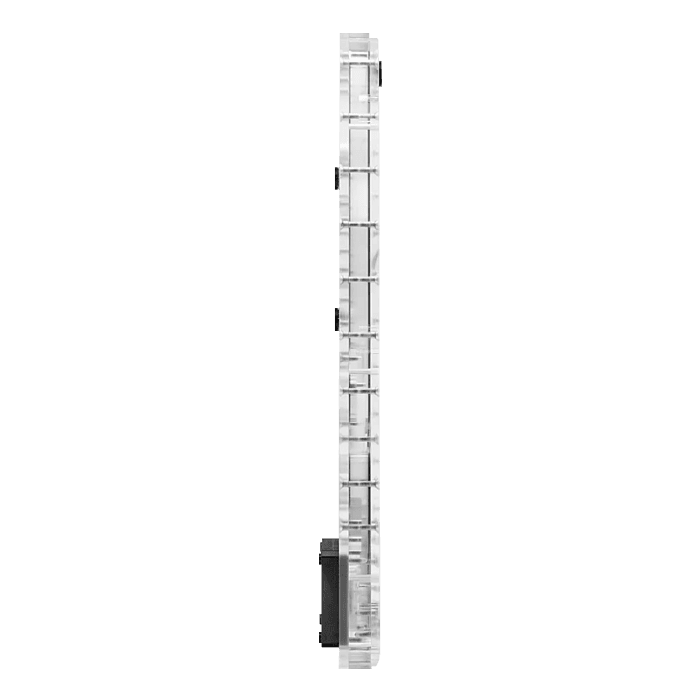

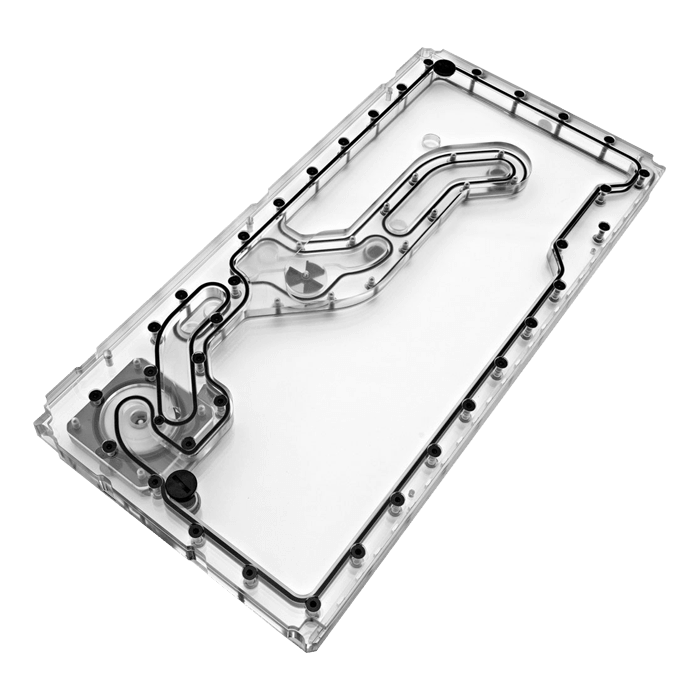

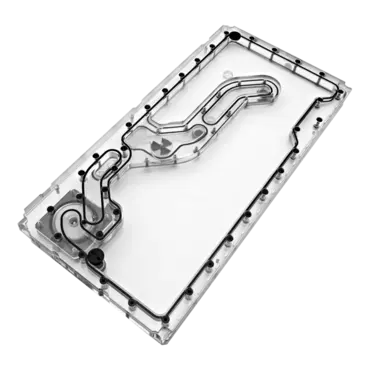

EK-Classic DP Front PC-O11D D-RGB + SPC PWM

Technical specifications:

- Motor: Electronically commuted motor
- Rated voltage: 12V DC
- Power consumption: 6W
- Maximum pressure head: 2.2m
- Maximum flow rate: 250 L/h
- Maximum liquid temperature: 50°C
- Materials: PPS-GF30, EPDM O-rings, graphite
- Power connector: 4-Pin PWM FAN connector
- D-RGB cable length: 50cm
- D-RGB connector 3-pin 5V digital LED header (Pinout: +5V, D, Blocked, Ground)
- Reservoir volume: ~650ml

Operational regime:

- PWM duty cycle: ~ 20-100%
- Default behavior: Runs at 100% duty cycle when no PWM feedback signal is present

Enclosed:

- EK-Classic Distroplate Front PC-O11D SPC PWM D-RGB - Plexi
- PWM Extender Cable 50cm
- 1x Allen key 2mm
- 1x Allen key 2,5mm
- 1x Allen key 6,0mm
- 2x Screw M3x8 7991DIN
- 3x Screw M4x20 7991DIN
- Screw M4x20 7991DIN

Designed and engineered in Slovenia - EU!
Made in China

PLEASE NOTE:

• Compatible only with Lian Li PC-O11D
• The SPC pump is water lubricated, in other words, it uses a wet rotor design. Therefore, it is strongly recommended not to run the pump dry.
• This product is NOT compatible with DDC Heatsink Housing!
• The distribution plate is not compatible with DDC style pumps!
• The Lian Li PC-O11D is only for showcase and its not delivered with the product
