EK-Quantum Reflection Fractal ATX D5 PWM D-RGB - Plexi
- SKU: 13312025
- Manufacturer: ekwb
- MPN: 3831109823934
- Availability: TEMPORARILY OUT OF STOCK

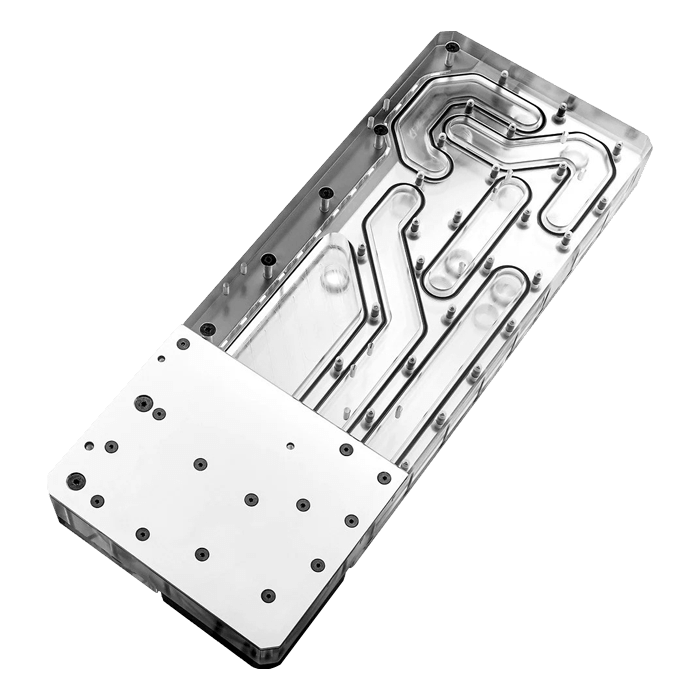

ekwb EK-Quantum Reflection Fractal ATX D5 PWM D-RGB (3831109823934). The EK-Quantum Reflection Fractal ATX D5 PWM D-RGB is a water cooling reservoir, routing and pump solution made to fit several Fractal Design ATX size cases. This "distro plate" is specifically designed to provide an advanced water cooling solution with a market-leading D5 pump for users who are building custom loop liquid cooling solutions with Fractal Design cases.
Reservoir:
- Dimensions with the attached pump (W x D x H): 133 x 66 x 349mm
- D-RGB LED count: 22
- D-RGB cable length: 500mm
- D-RGB connector standard 3-pin (+5V, Data, Blocked, Ground)
Technical specifications:
- Motor: Electronically commuted spherical motor
- Rated voltage: 12V DC
- Power consumption: 23W
- Maximum pressure head: 3.9m
- Maximum flow: 1500L/h
- Maximum system temperature: 60°C
- Materials: Stainless steel, PPS-GF40, EPDM O-rings, Aluminium oxide, hard coal
- Power connector: 4-Pin Molex- and 4-Pin PWM FAN connector
Operational regime:
- PWM duty cycle: ~ 20-100%
- Default behavior: Runs at 100% duty cycle when no PWM feedback signal is present
Additional Info
| Material / Design / Color option | Nickel Plexi |
