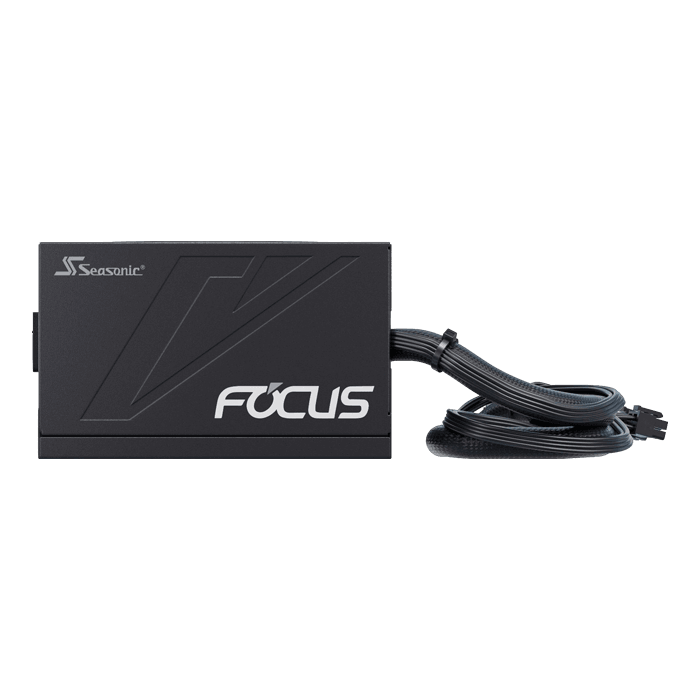

FOCUS GM-750, 80 PLUS Gold 750W, Semi Modular, ATX Power Supply

Quantity:
  • SKU: 13268332
  • Manufacturer: SEASONIC
  • MPN: FOCUS-GM-750
  • Availability: TEMPORARILY OUT OF STOCK
Starting At
$156.38
Quantity:
FOCUS GM-750, 80 PLUS Gold 750W, Semi Modular, ATX Power Supply

Seasonic FOCUS GM-750. Seasonic was the forerunner of creating the very first 80 PLUS® Gold certified power supply on the market and since that time it has built a very popular Gold series lineup that covers a full power range of power supplies with impeccable performance and efficiency. The highly efficient 80 PLUS® Gold certification guarantees greater than 87 %, 90 % and 87 % efficiency at 20 %, 50 % and 100 % operating loads, respectively. The clear advantage of buying a power supply with 80 PLUS® Gold rating is the fact that the less energy gets wasted during power conversion, the lower the operating costs will be for the user.

  • ATX 12 V
  • Semi-modular
  • 80 PLUS Gold Certified
  • 7 Years Warranty
  • Dimensions: 140 mm (L) x 150 mm (W) x 86 mm (H)
Technical Specifications
80PLUS® Gold
Form Factor Intel ATX 12 V
Dimensions 140 mm (L) x 150 mm (W) x 86 mm (H)
Fan Information Fan Size 120 mm
Fan Control S2FC
Fan Bearing Fluid Dynamic Bearing
Life Expectancy 50,000 hours at 40 °C, 15 % - 65 % RH
Cable Information Modularity Semi-modular
Cable type Webbed cables (attached)
Flat black cables(modular)
Electrical Features Operating Temperature 0 - 50 °C (derating from 100 % to 80 % from 40 °C to 50 °C)
MTBF @ 25 °C, excl. fan 100,000 hours
AC Input Full Range
Protection OPP, OVP, UVP, OCP, OTP, SCP
Safety and Environmental Safety and EMC cTUVus, TUV, CB, CCC, BSMI, EAC, CE
Environmental Compliance Energy Star, RoHS, WEEE, ErP Lot 6, REACH
Warranty 7 Years
Power Output
AC Input Voltage: 100 V - 240 V
Current: 10 - 5 A
Frequency: 50 Hz - 60 Hz
DC Output Rail +3.3 V +5 V +12 V -12 V +5 VSB
Maximum Power 20 A 20 A 62 A 0.3 A 3 A
100 W 744 W 3.6 W 15 W
Total continuous power 750 W

CABLES

Connector Connector count Cable count
Main Power (24/20 pins) 1 1
CPU (8/4 pins) 1 1
PCIe (8/6 pins) 4 0
2
SATA 8 2
0
0
0
0
0
Peripheral 3 1
0
Floppy 1 0
