GeForce RTX™ 4090 WINDFORCE 24G, 2230-2520MHz, 24GB GDDR6X, Graphics Card

  • SKU: 15171851
  • Manufacturer: GIGABYTE
  • MPN: GV-N4090WF3-24GD
  • Availability: CONTACT US
Starting At

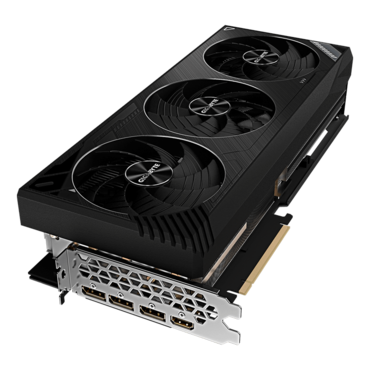

GeForce RTX™ 4090 WINDFORCE 24G, 2230-2520MHz, 24GB GDDR6X, Graphics Card

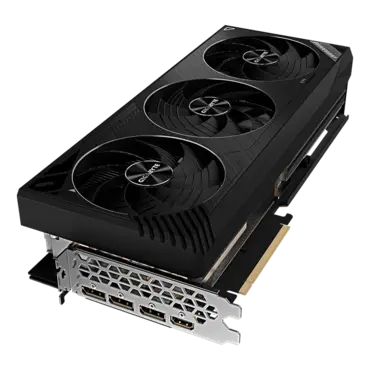

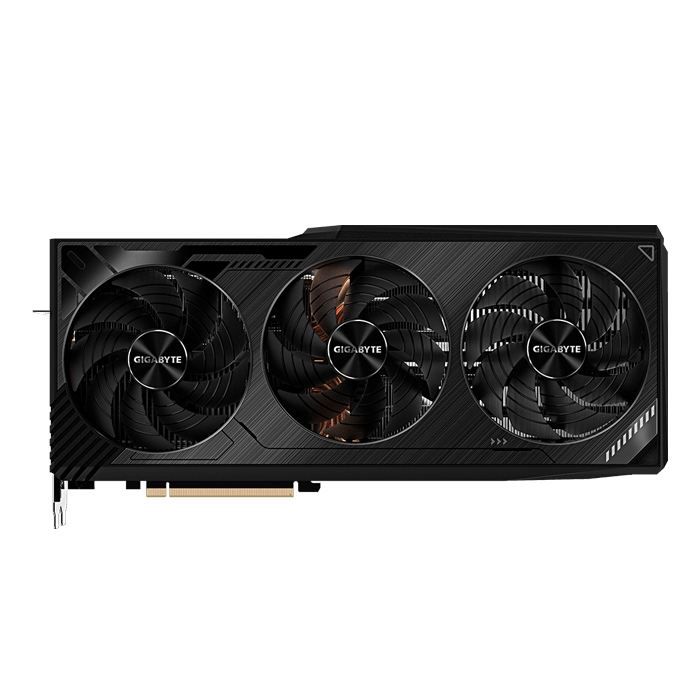

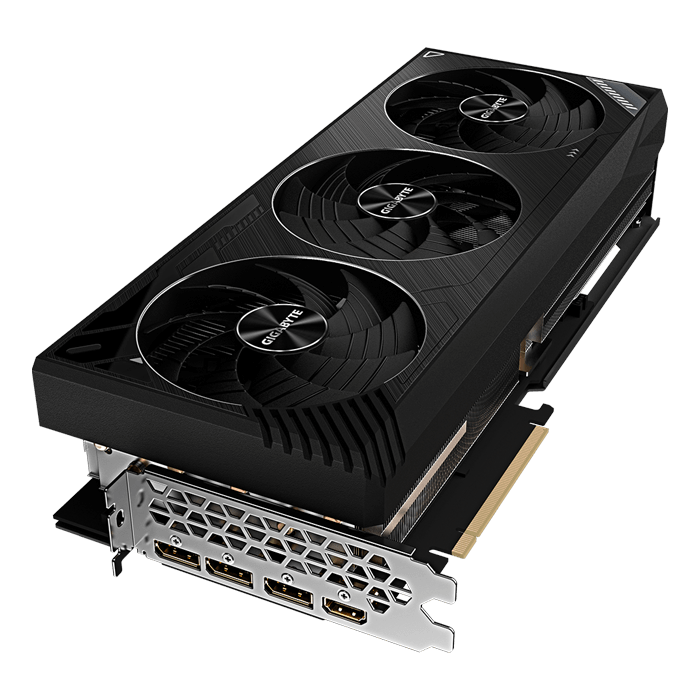

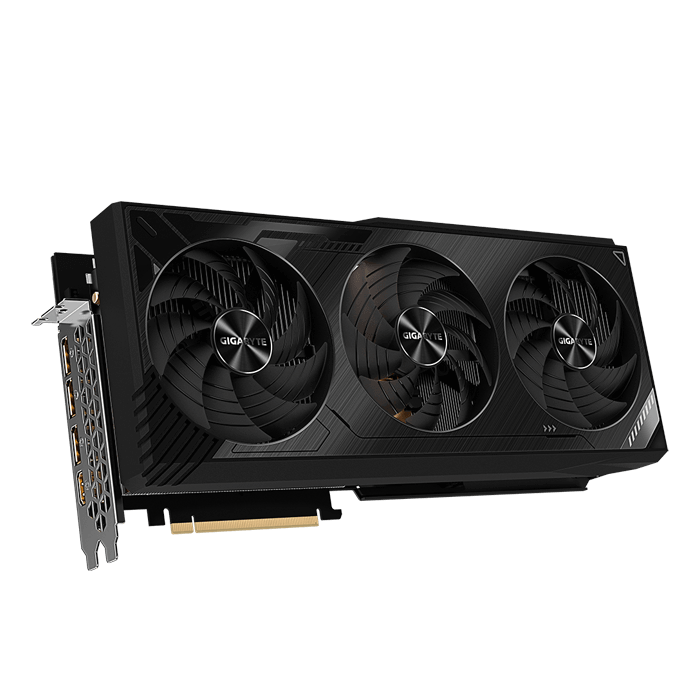

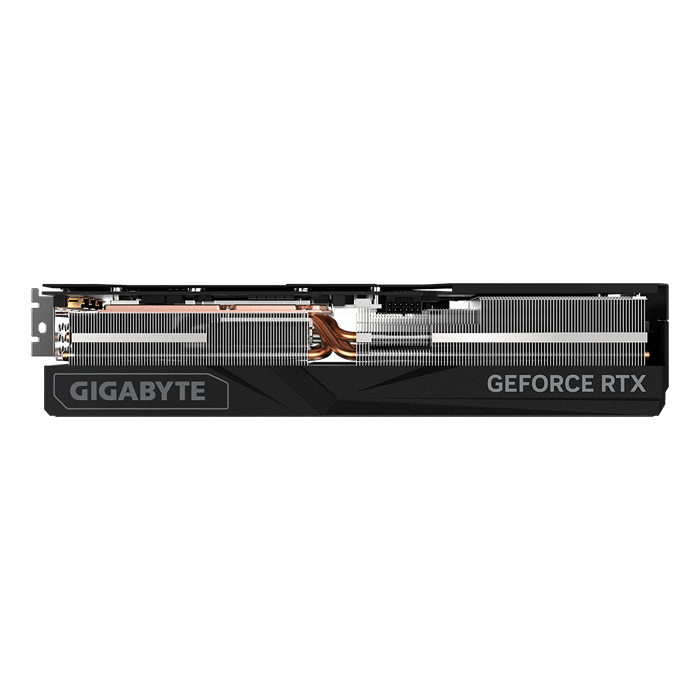

GIGABYTE GeForce RTX™ 4090 WINDFORCE 24G (GV-N4090WF3-24GD). The WINDFORCE cooling system features three 100mm unique blade fans, alternate spinning, 8 composite copper heat pipes, a large vapor chamber directly touches the GPU, 3D active fans and Screen cooling, which together provide high efficiency heat dissipation.

  • NVIDIA Ada Lovelace Streaming Multiprocessors: Up to 2x performance and power efficiency
  • 4th Generation Tensor Cores: Up to 2X AI performance
  • 3rd Generation RT Cores: Up to 2X ray tracing performance
  • Powered by GeForce RTX® 4090
  • Integrated with 24GB GDDR6X 384-bit memory interface
  • WINDFORCE cooling system
  • Dual BIOS

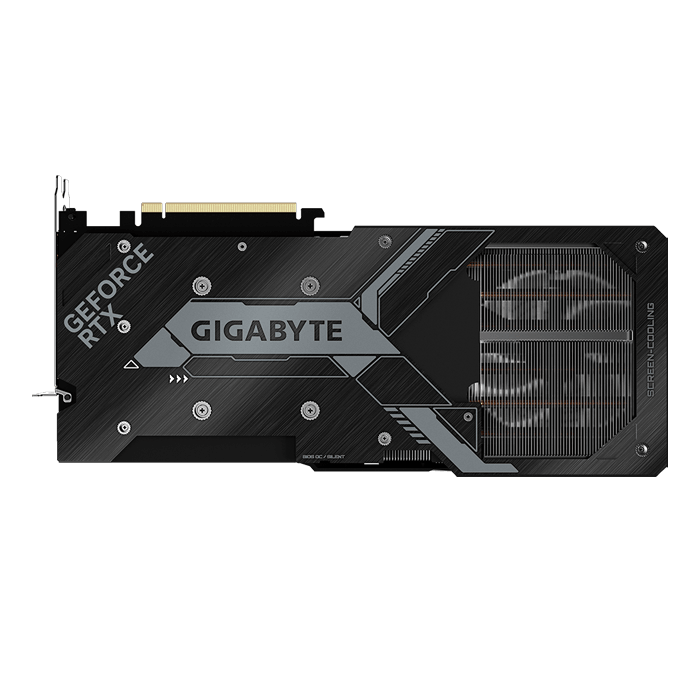

  • Protection metal back plate
Graphics Processing GeForce RTX® 4090
Core Clock 2520 MHz
CUDA® Cores 16384
Memory Clock 21 Gbps
Memory Size 24 GB
Memory Type GDDR6X
Memory Bus 384 bit
Card Bus PCI-E 4.0
Digital max resolution 7680x4320
Multi-view 4
Card size L=331 W=150 H=70 mm
DirectX 12 Ultimate
OpenGL 4.6
Recommended PSU 850W
Power Connectors 16 pin*1

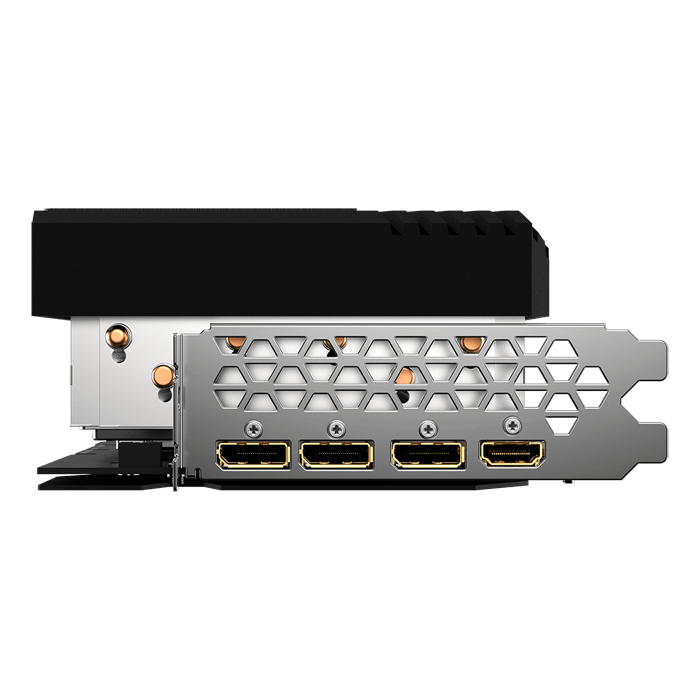

Output DisplayPort 1.4 *3
HDMI 2.1 *1

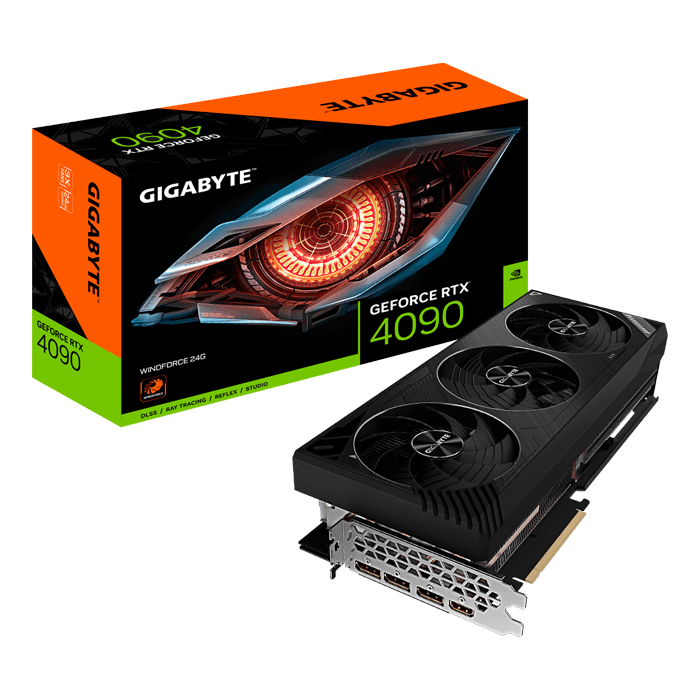

Accessories 1. Quick guide
2. VGA holder
3. One 16-pin to four 8-pin power adaptor
* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
