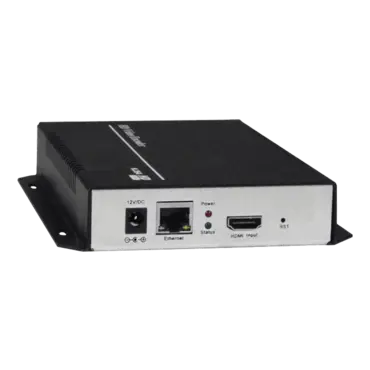

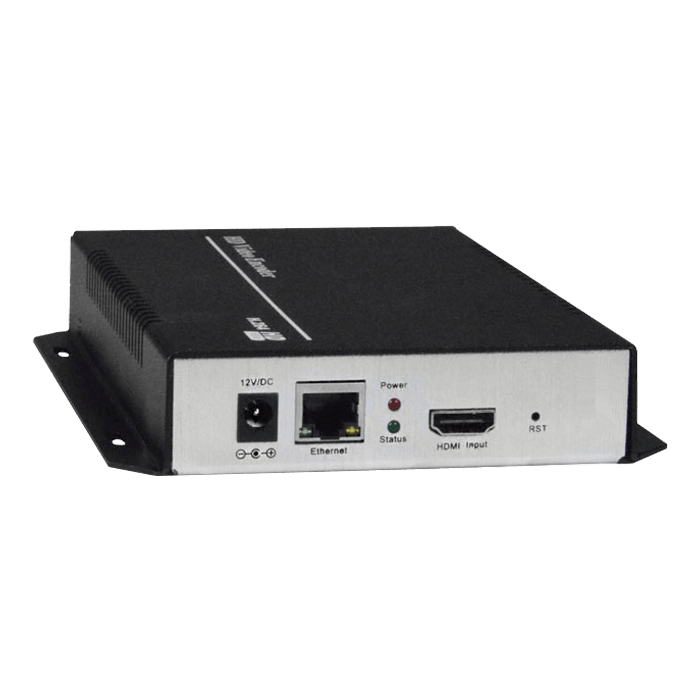

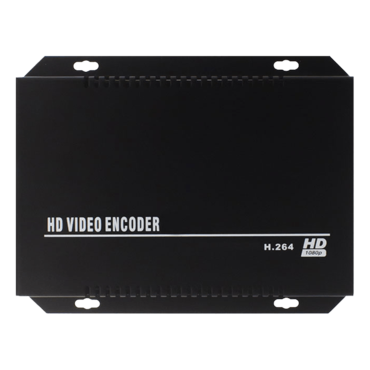

H.264 HDMI Video Encoder
Stream 1080p HDMI video from a camera to a media streaming server or internet live broadcast platform in real time over IP
Accepts 1080p HD video at 60 frames per second and produces IP streams that can be sent on a standard Ethernet cable
Video |
- One female HDMI-A port for source connection.
- Supported resolutions: 720p/1080i/1080p @50/60Hz and below.
- Codec: H.264/AVC High/Main/Baseline
- Bit rate: 0.1 to 32 Mbps, adjustable
- Bit rate control: VBR.CBR
- Frames per second: 5 to 60 FPS
|
Audio |
- HDMI embedded audio.
- Sample rates: 44.1 kHz, 48.0 kHz
- Codec: AAC/AAC+/AAC++/MP3
- Bit rate: 0.1 to 32 Mbps, adjustable
|
Ethernet Port |
- One female RJ45 connector.
- 100 Base-T Ethernet interface.
|
Protocols |
- HTTP, HLS, FLV, RTSP, UDP, RTMP, ONVIF
|
Dimensions |
- WxDxH: 5.16x6.57x1.14 in (131x167x29
|
Power |
- Input: 110 or 240 VAC at 50 or 60 Hz via AC adapter (US AC adapter included).
- Optional universal power plug adapters available (not included).
- Output: 12VDC, 1A
|
Environmental |
- Operating temperature: 32 to 104°F (0 to 40°C).
- Storage temperature: -4 to 158°F (-20 to 70°C).
- Operating and storage relative humidity: 5 to 90% non-condensing RH.
|
Regulatory Approvals |
|
Warranty |
|
Cables |
- Use HD-xx-MM cable to connect an HDMI video source (not included).
- Use CAT5e/6 solid or stranded straight through cable for TIA/EIA-568B wiring terminated with standard RJ45 connectors (not included).
|
