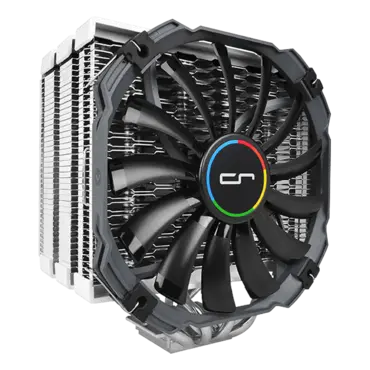

H5 Universal, 160mm Height, 160W TDP, Copper/Nickel CPU Cooler

SKU: 13591786

Manufacturer: CRYORIG

MPN: CR-H5A

Availability: Available


Price: $115.55
or as low as $4/month
Quantity:

CRYORIG H5 Universal (CR-H5A). Breaking Design Molds. Efficiency by Innovation. CRYORIG H Series coolers feature our proprietary Hive Fin™ structure. This design allows for a combination of Jet Fin Acceleration™ and Turbulence Reduction, as well as strengthening structural strength of the fin stacks. Combined together, the Hive Fin™ design brings cool innovation.

Heatsink Specification
Dimension ( with fan ) L98 mm x W143 mm x H160 mm
Weight ( with fan ) 853 g
Weight ( without fan ) 764 g
Heat pipes 6mm heatpipe x 4 units
Fin T = 0.4 mm ; Gap = 2.8 mm
Fin Pcs 38 pcs
Copper Base C1100 Pure copper nickel plated
RAM Height Limit Limitless
TDP 160 W
Fan Specification
Model XF140
Dimension L140 mm x W140 mm x H13 mm
Weight 89 g
Rated Speed 700 ~ 1300 RPM ±10 %
Noise Level 20 ~ 24 dBA
Air Flow 65 CFM
Air Pressure 1.49 mmH2O
Ampere 0.27 A
Motherboard Compatibility
Intel 2066, 2011(-3), 1150, 1151, 1155, 1156, 1200
AMD FM1, FM2/+, AM2/+, AM3/+, AM4
What's In The Box H5 Universal x 1
MultiSeg™ Backplate for Intel x 1
AM4 Screw Pillar x 4
Intel Mounting Bar x 2
AM4 Mounting Plate x 1
Thumb Screw Caps x 4
Screw Pillars x 4
LGA 2011 Screw Pillars x 4
Acoustic Vibration Absorbers x 4
CP-7 x 1
L-Screwdriver x 1
Installation Guide x 1
