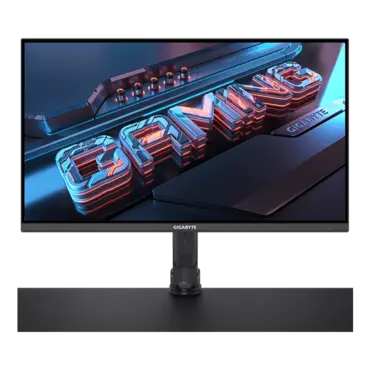

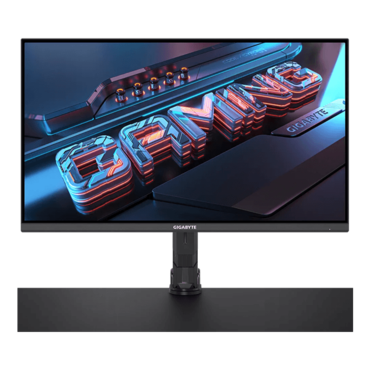

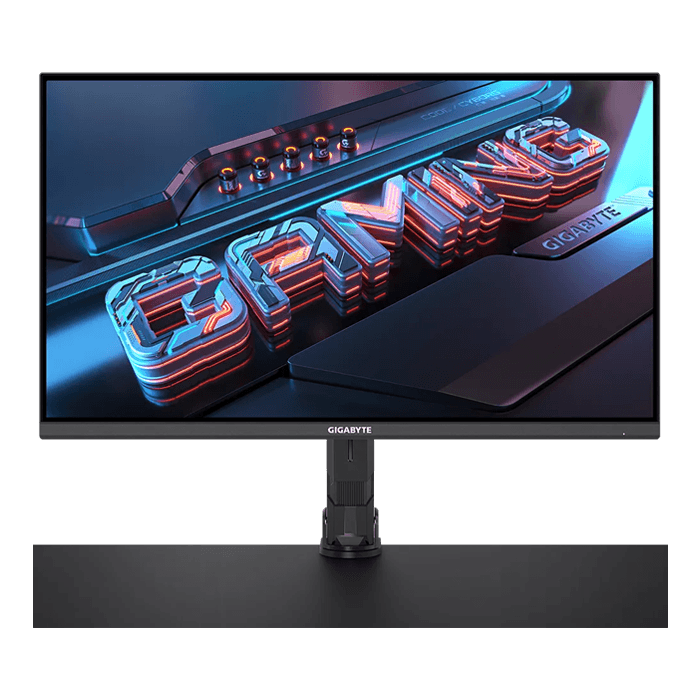

M32U Arm Edition, DisplayHDR™ 400, 31.5" SS IPS, 3840 x 2160 (4K UHD), 1 ms, 144Hz, FreeSync™ Premium Pro Gaming Monitor
Best Realization of True 4k Entertainment
The 4K pro gaming experience is now lifted to a whole new level by the Arm Edition of the well-acclaimed GIGABYTE M32U gaming monitor. GIGABYTE M32U Arm Edition introduces an ergonomic monitor arm that adapts to every desktop scenario. From PC gaming, console gaming, to even streaming media. Equipped with the SuperSpeed IPS panel, GIGABYTE M32U Arm Edition delivers a fluid 144hz frame rate at 1ms response time and presents an outstanding color accuracy with 10-bit color depth plus 90% DCI-P3 wide color gamut. Here comes the best realization of true 4K entertainment.

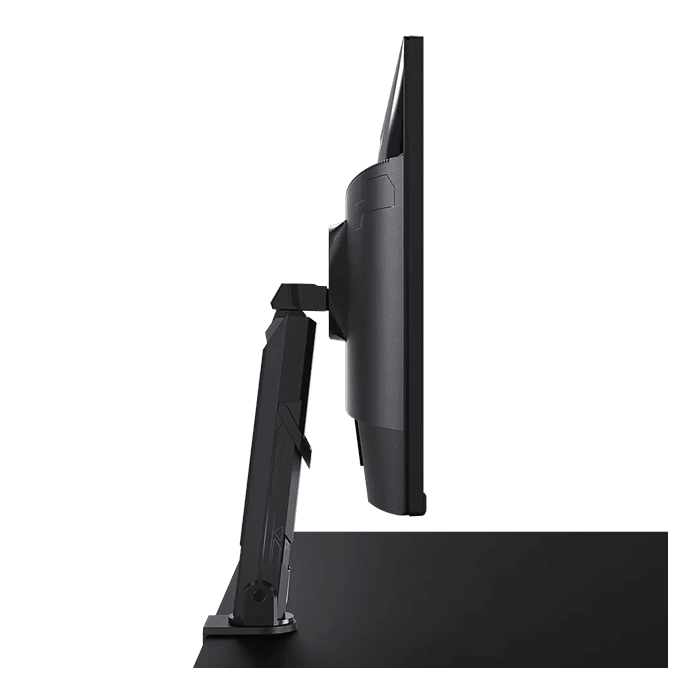

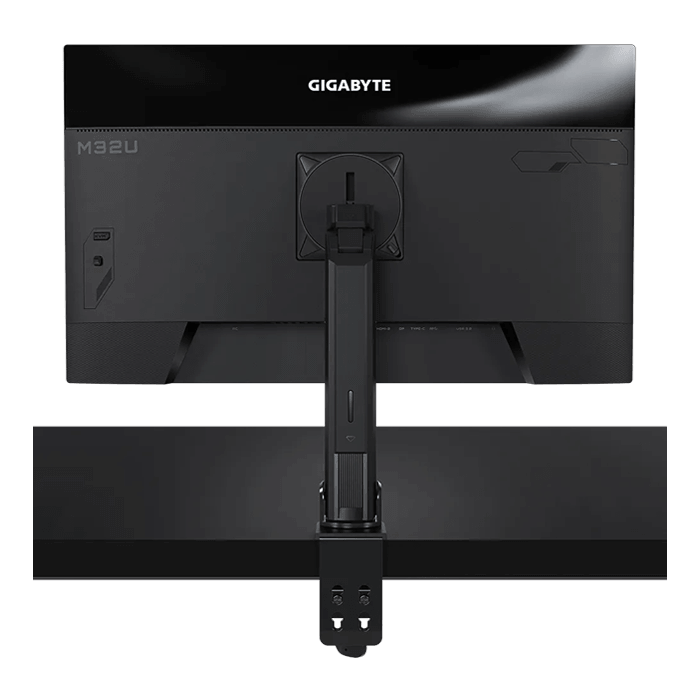

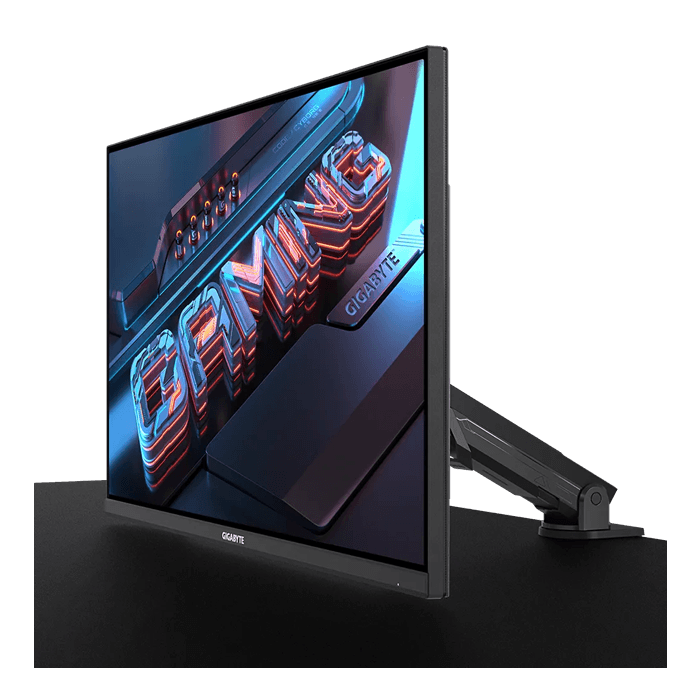

- Ergonomic Monitor Arm
- Adaptive 4K Entertainment
- UHD 4K Resolution
- HDMI 2.1 VRR & ALLM
- 90% DCI-P3 Color Gamut
- KVM One for All
Panel Size (diagonal) | 31.5”SS IPS |
Display Viewing Area (HxV) | 697.3056 x 392.2344 (mm) |
Panel Backlight/ Type | Edge type |
Display Surface(non-glare/ glare) | Non-glare |
Color Saturation | 90% DCI-P3/ 123% sRGB |
True Resolution | 3840 x 2160 (UHD) |
Pixel Pitch | 0.181 (H) x 0.181(V) |
Brightness | 350 cd/m2 (TYP) |
Contrast Ratio | 1000:1 |
Viewing Angle | 178°(H)/178°(V) |
Display Colors | 1.07B |
Response Time | 1ms MPRT |
Refresh Rate |
144Hz 120Hz for Console Game* |
VRR | FreeSync Premium Pro |
HDR | VESA Display HDR400 |
Flicker-free | Yes |
HBR3 | Yes |
Connectivity |
2 x HDMI 2.1 (support 4K 144Hz 4:4:4 @ DSC enabled or 4K 144Hz 4:2:0) * 1 x Display port 1.4 (DSC) 3 x USB 3.2 Gen 1 Downstream ports 1 x USB 3.2 Gen 1 Upstream port 1 x USB Type-C (Alternate Mode; Upstream port; Power Delivery up to 18W) |
Speaker | 3W x2 |
Unique Features |
OSD Sidekick ** Aim Stabilizer Sync Black Equalizer Dashboard Crosshair Timer Counter Auto-Update KVM 6 axis Color Control Smart OD |
Power Type | Power Board Build-in |
Power Consumption | 45.5W *** |
Power Saving Mode | 0.5W |
Power Off Mode | 0.3W |
Voltage | AC 100V~240V /50~60Hz |
Tilt(angle) | -5°~+25° |
Swivel(angle) | -270°~+270° |
Pivot(angle/direction) | 90° (CW) |
Height Adjustment (mm) | 167 mm |
Forward Extension (mm) | 230 mm |
VESA Wall Mounting(mm) | 100*100 mm |
Kensington lock | Yes |
Phys. Dimension with Stand(WxHxD) | 715.8*587.7*221 mm |
Phys. Dimension w/o stand (WxHxD) | 715.8*423.7*68.2 mm |
Box Dimension (WxHxD) | 990*536*192 mm |
Net Weight with stand (Esti.) | 10.53 (kg) |
Net Weight without stand (Esti.) | 7.21 (kg) |
Gross Weight (Esti.) | 13.67 (kg) |
Accessories | Power cable/HDMI cable/DP cable/USB cable/QSG/Warranty card |
Note |
*HDMI2.1 supports PS5 and Xbox Series X at 4K UHD@120Hz (4:2:0) **To enable OSD Sidekick, it requires connection between PC and monitor with USB (A-Male to B-Male) cable ***The test condition follows CEC standards. |
