M9 PLUS, 124.6mm Height, 130W TDP, Copper/Nickel CPU Cooler

  • SKU: 13590918
  • Manufacturer: CRYORIG
Starting At

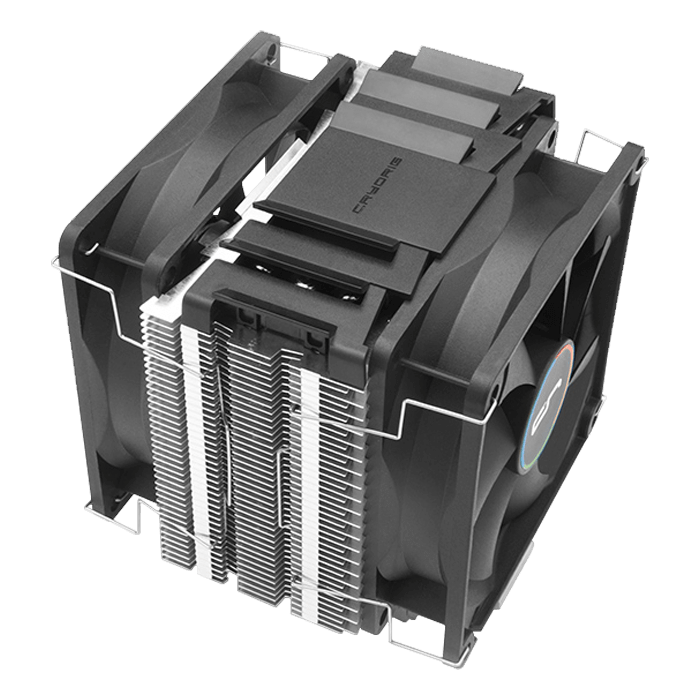

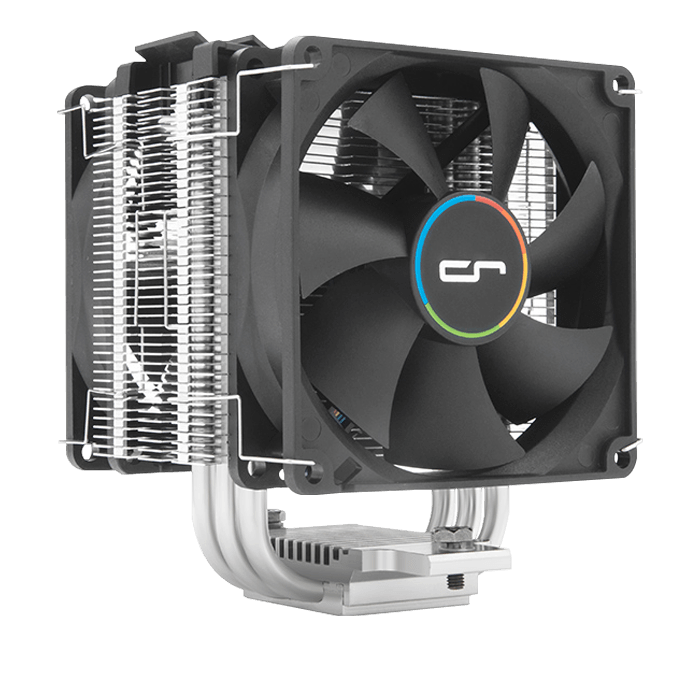

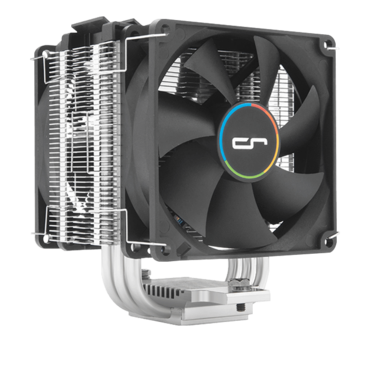

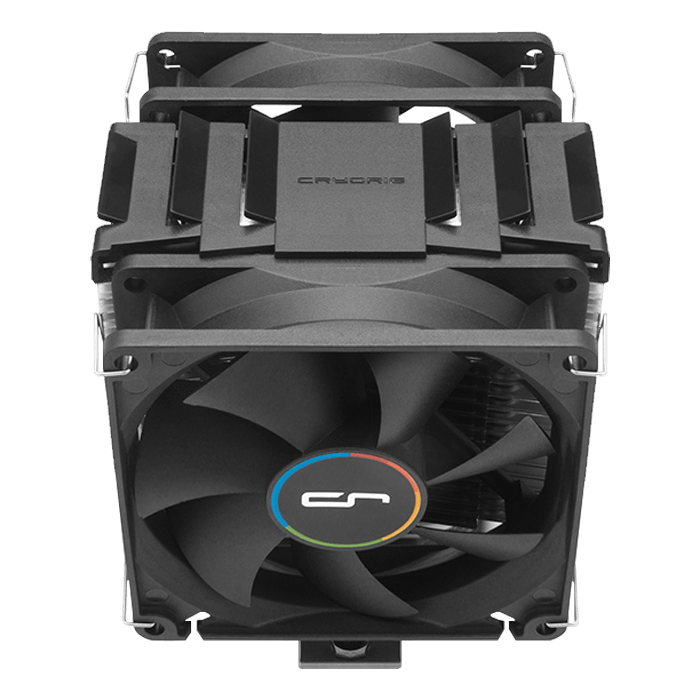

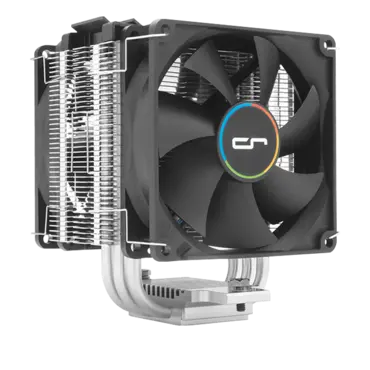

M9 PLUS, 124.6mm Height, 130W TDP, Copper/Nickel CPU Cooler

CRYORIG M9 PLUS (CR-M9PLUS). Direct Air Tunnel Effect, Aligned System Airflow. By adding one additional fan the full fan system aligns with your system fan, to concentrate and expel exhaust heat. This increases the overall efficiency of the whole system airflow.

Heatsink Specification
Dimension ( with fan ) L98.4 mm x W102 mm x H124.6 mm
Weight ( with fan ) 505 g
Weight ( without fan ) 345 g
Heat pipes 6mm heatpipe x 3 units
Fin T = 0.4 mm ; Gap = 2.6 mm
Fin Pcs 40 pcs
Copper Base C1100 Pure copper nickel plated
RAM Height Limit Limitless
TDP 130 W
Fan Specification
Dimension L92 mm x W92 mm x H25.4 mm
Weight 80 g
Rated Speed 600 ~ 2200 RPM ±10 %
Noise Level 26.4 dBA
Air Flow 48.4 CFM
Air Pressure 3.1 mmH2O
Ampere 0.11 A
Motherboard Compatibility
Intel 1150, 1151, 1155, 1156, 1200
AMD FM1, FM2/+, AM2/+, AM3/+, AM4
What's In The Box M9 Plus x 1
X-Bar™ Backplate x 1
Hexagon Pillars x 4
Intel Mounting Bar x 2
AM4 Mounting Plate x 1
Thumb Screw Caps x 4
PWM Y-Cable x 1
CRYO-Paste CP15 x 1
Installation Guide x 1
Product Registration Card x 1
