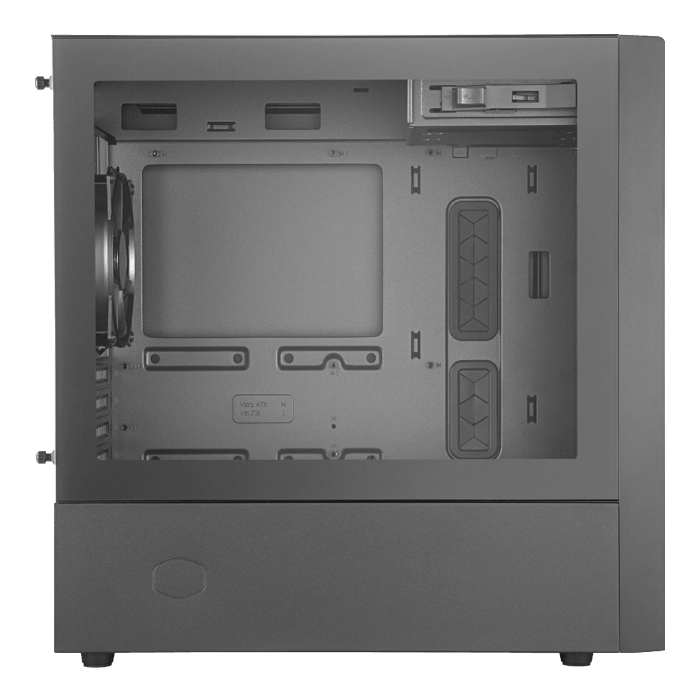

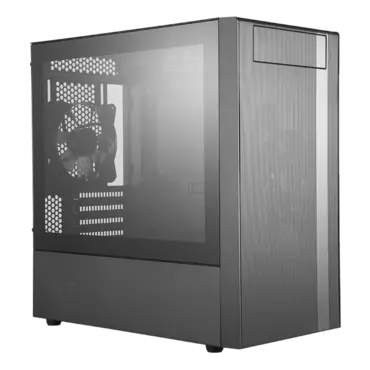

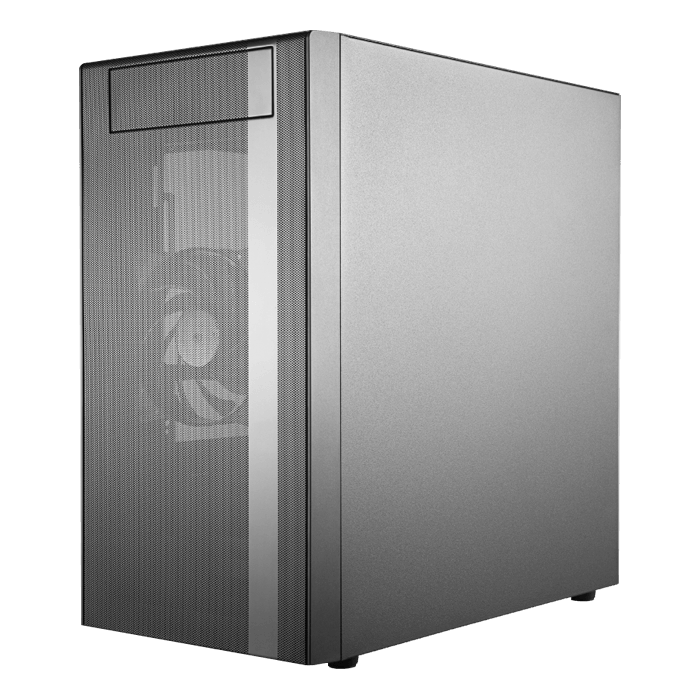

Product Name | MasterBox NR400 |
Product Number | MCB-NR400-KG5N-S00 |
Exterior Color | Black |
Materials - Body | Steel, Plastic |
Materials - Windowed Side Panel | Tempered Glass |
Dimensions | 411 (L) x 210 (W) x 411 (H) mm |
Motherboard Support | Mini-ITX, Micro-ATX |
Expansion Slots | 4 |
5.25" Drive Bays | 1 |
3.5" HDD Drive Bays | 4 |
2.5" SSD Drive Bays | 4 |
I/O Panel - USB Ports | USB 3.0 x 2 |
I/O Panel - Audio In / Out | 1x 3.5mm Headset Jack (Audio+Mic) |
Pre-installed Fan(s) - Front | 120mm x 1 |
Pre-installed Fan(s) - Rear | 120mm x 1 |
Fan Support - Front | 120mm x 2 / 140mm x 2 |
Fan Support - Top | 120mm x 1 / 140mm x 1 |
Fan Support - Rear | 120mm x 1 |
Radiator Support - Front | 120 / 140 / 240 / (280mm may interfere with HDD mounted below ODD) |
Radiator Support - Top | 120mm |
Radiator Support - Rear | 120mm |
Clearance - CPU Cooler | 166mm |
Clearance - Power Supply | 325mm max (w/o front radiator & HDD cage)
140mm (HDD cage in backmost position) |
Clearance - Graphics Card | 346mm |
Cable Routing - Behind MB Tray | 22mm |
Dust Filters | Top, Bottom |
Power Supply Support | Bottom Mount, ATX PS2 |
EAN Code | 4719512080269 |
UPC Code | 884102052750 |
