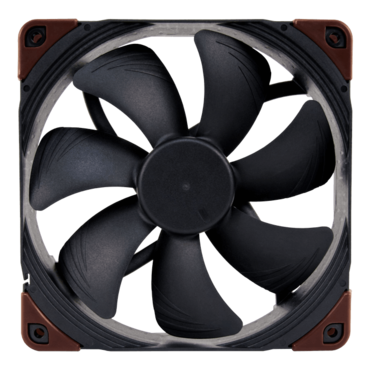

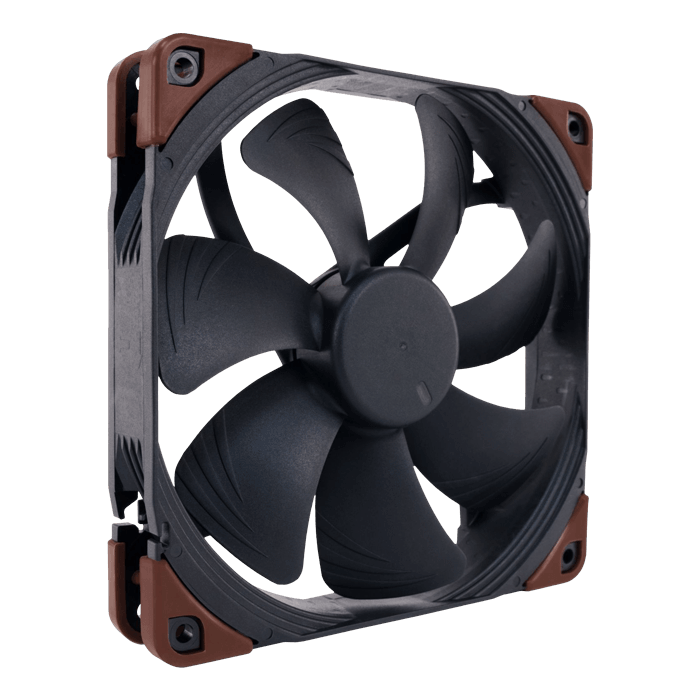

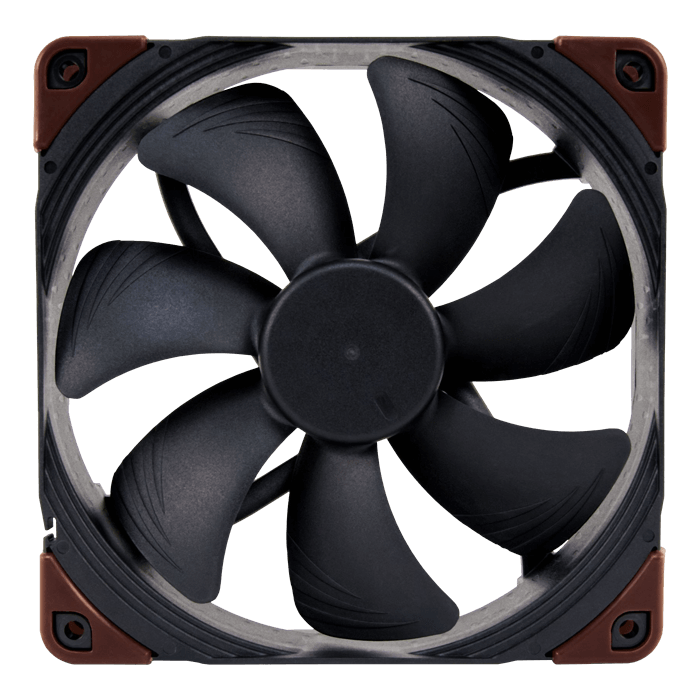

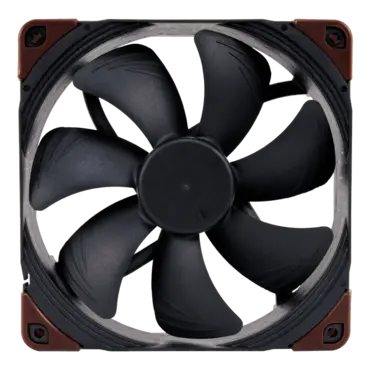

NF-A14 industrialPPC-3000 PWM 140mm, 3000 RPM, 158.5 CFM, 41.3 dBA, Cooling Fan

Quantity:
  • SKU: 14431182
  • Manufacturer: NOCTUA
  • MPN: NF-A14 industrialPPC-3000 PWM
  • Availability: TEMPORARILY OUT OF STOCK
Starting At
$37.93
Quantity:
NF-A14 industrialPPC-3000 PWM 140mm, 3000 RPM, 158.5 CFM, 41.3 dBA, Cooling Fan

Conceived for industrial heavy duty applications that require enhanced cooling performance and advanced ingress protection, the NF-A14 industrialPPC (Protected Performance Cooling) is a ruggedised high-speed version of the award-winning retail model. Thanks to the outstanding aerodynamic efficiency of the NF-A14 design and the use of a novel three-phase motor, the industrialPPC version provides superior airflow and pressure capacity while keeping noise levels and power consumption moderate as against comparable high-speed fans. While its fibre-glass reinforced polyamide construction and certified water and dust protection make the NF-A14 industrialPPC suitable for operation in challenging environments, the renowned SSO2 bearing technology guarantees an MTTF of over 150.000hrs. Topped off with Noctua’s trusted reliability and 6 years manufacturer’s warranty, the NF-A14 industrialPPC is an ideal choice for highly demanding applications that require superior flow rates and ultimate dependability.

  • Heavy duty cooling fan, 140x140x25 mm, 12V, 4-pin PWM, max. 3000 RPM, max. 41.3 dB(A), >150,000 h MTTF
  • Award-winning 140x25mm A-series fan with Flow Acceleration Channels and Advanced Acoustic Optimisation frame for superior cooling efficiency
  • 12V 3000rpm model (41.3dB) with 4-pin PWM connector for automatic speed control via 4-pin PWM fan headers, broad 800-3000rpm speed range
  • High-speed industrialPPC version for industrial heavy-duty applications that require extreme cooling performance and advanced ingress protection
  • Ruggedised fibre-glass reinforced polyamide construction and IP52 certified water and dust protection
FAN Specification
Size 140x140x25 mm
Mounting hole spacing 124,5x124,5 mm
Connector & pin-configuration 4-pin PWM
Cable length 40cm
Bearing SSO2
Blade geometry A-Series with Flow Acceleration Channels
Frame technology AAO
Material Fibre-glass reinforced polyamide
Ingress protection IP52
Motor type Three-phase
Rotational speed (+/- 10%) 3000 RPM
Min. rotational speed (PWM, +/-20%) 800 RPM
Airflow 269,3 m³/h
Acoustical noise 41,3 dB(A)
Static pressure 10,52 mm H2O
Max. input power 6,6 W
Max. input current 0,55 A
Operating voltage 12 V
MTTF > 150.000 h

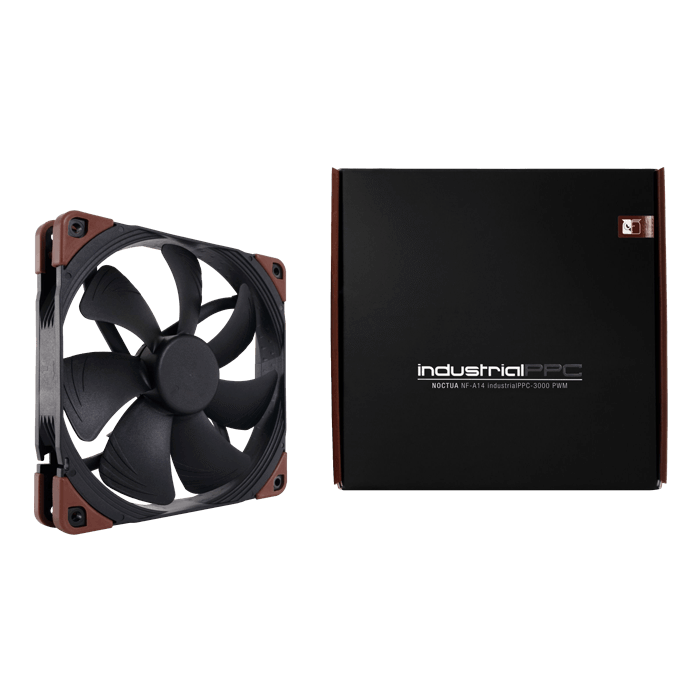

Scope of delivery
  • Fan
  • 4 Fan Screws
Warranty 6 years
