NF-S12A PWM 120mm, 1200 RPM, 63.3 CFM, 17.8 dBA, Cooling Fan

Quantity:
  • SKU: 14433075
  • Manufacturer: NOCTUA
  • MPN: NF-S12A PWM
  • Availability: TEMPORARILY OUT OF STOCK
Starting At
$22.98
Quantity:

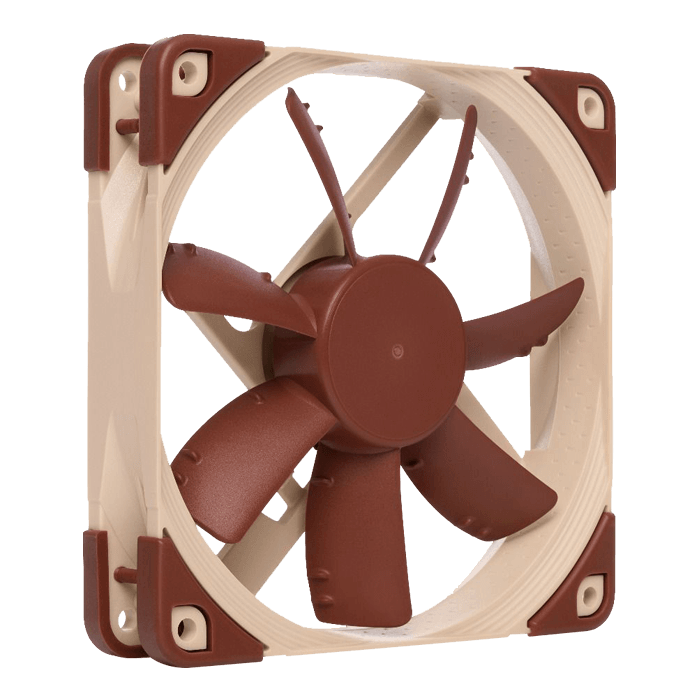

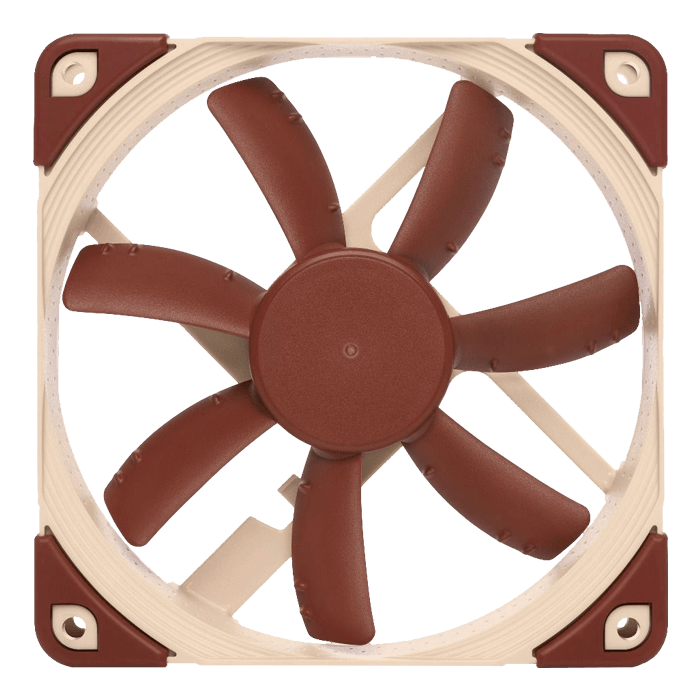

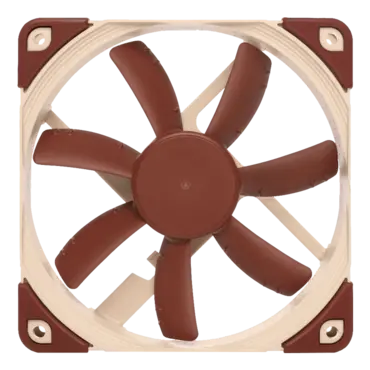

NF-S12A PWM 120mm, 1200 RPM, 63.3 CFM, 17.8 dBA, Cooling Fan

The NF-S12A marks the third generation of Noctua’s signature S12 series quiet case fans, which have received more than 250 awards and recommendations from the international press. Featuring a further refined blade design with Anti-Stall Knobs that works in tandem with the new AAO (Advanced Acoustic Optimisation) frame, the NF-S12A improves the airflow/noise efficiency of its renowned predecessor by up to 8%. The PWM version sports Noctua’s custom designed NE-FD1 IC for fully automatic speed control via 4-pin fan headers and comes with a Low-Noise-Adaptor to reduce the maximum speed during PWM control from 1200 to 900rpm. Its superb running smoothness, SSO2 bearing and Noctua’s trusted premium quality make it an elite choice for quiet case cooling.

  • Premium quiet fan, 120x120x25 mm, 12V, 4-pin PWM, max. 1200 RPM, max. 17.8 dB(A), >150,000 h MTTF
  • Award-winning third-gen 120x25mm S12 fan with Anti-Stall Knobs and Advanced Acoustic Optimisation frame for superior quiet cooling performance
  • Airflow-optimised design for highly efficient, near-silent ventilation of PC cases and other chassis (intake & exhaust), cabinet cooling, etc.
  • 4-pin PWM version for automatic speed control via 4-pin PWM fan headers, broad 300-1200rpm speed range (900rpm max. with supplied Low-Noise Adaptor)
  • Includes anti-vibration mounts, fan screws, Low-Noise Adaptor, extension cable and y-cable for running two PWM fans on the same header
FAN Specification
Size 120x120x25 mm
Mounting hole spacing 105x105 mm
Connector & pin-configuration 4-pin PWM
Cable length 20cm + 30cm NA-EC1 extension cable
Bearing SSO2
Blade geometry S-Series with Anti-Stall Knobs
Frame technology AAO (Advanced Acoustic Optimisation)
Rotational speed (+/- 10%) 1200 RPM
Rotational speed with L.N.A. (+/- 10%) 900 RPM
Min. rotational speed (PWM, +/-20%) 300 RPM
Airflow 107,5 m³/h
Airflow with L.N.A. 83,2 m³/h
Acoustical noise 17,8 dB(A)
Acoustical noise with L.N.A. 10,7 dB(A)
Static pressure 1,19 mm H2O
Static pressure with L.N.A. 0,73 mm H2O
Max. input power 1,44 W
Max. input current 0,12 A
Operating voltage 12 V
MTTF > 150.000 h
Scope of delivery
  • Low-Noise Adaptor (L.N.A.)
  • 4-Pin Y-Cable
  • 30cm Extension Cable
  • 4 Vibration-Compensators
  • 4 Fan Screws
Warranty 6 years
