ORCUS 120 RBW, 120mm Radiator, Liquid Cooling System

Quantity:
  • SKU: 14027572
  • Manufacturer: RAIJINTEK
  • MPN: 0R10B00105
  • Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Starting At
$82.34
Quantity:

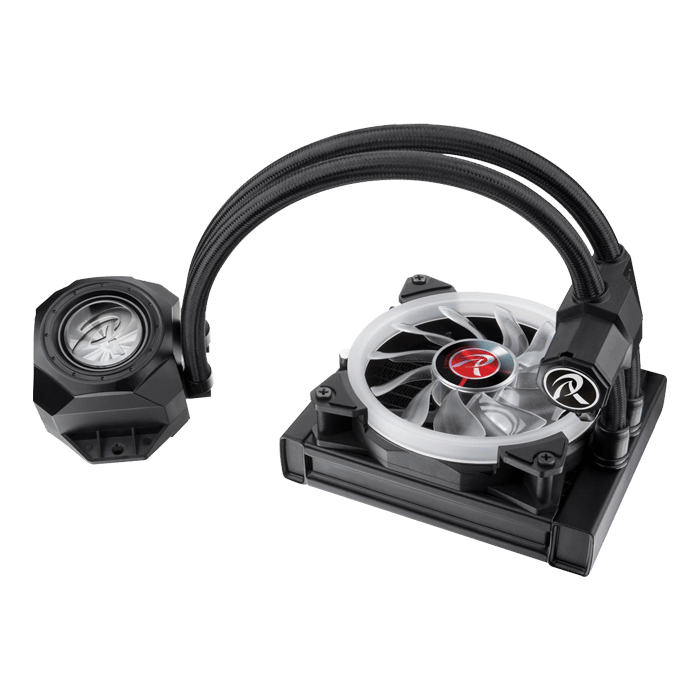

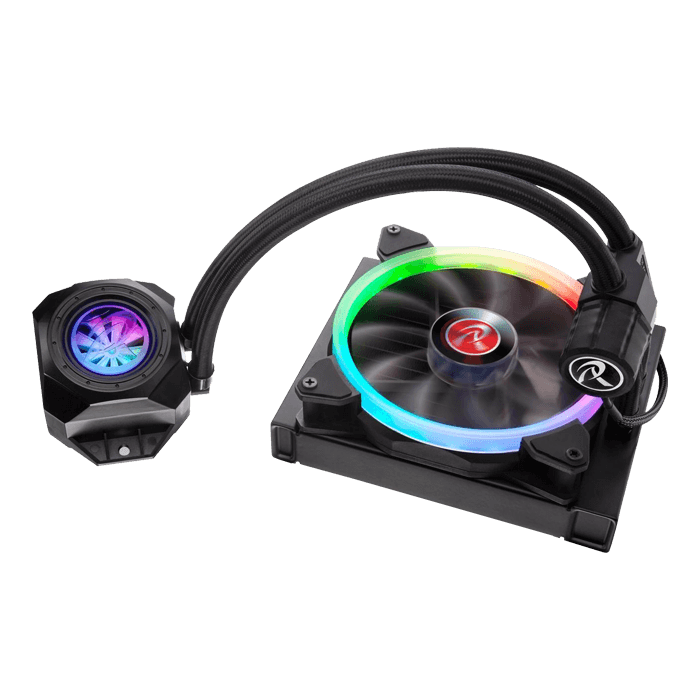

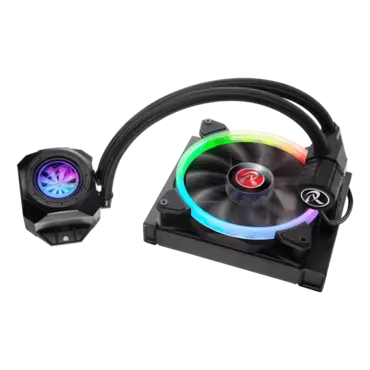

ORCUS 120 RBW, 120mm Radiator, Liquid Cooling System

ORCUS 120 RBW

ORCUS RBW, RAIJINTEK’s evolution All-In-One liquid cooling CPU cooler, designed in Germany and made in Taiwan. With several years of experience in liquid cooling products and cooperation with global engineers and manufactures, RAIJINTEK’s RD team developed the concepts of most performing AIO CPU liquid cooler and spent years to design one of most user friendly and spot light product for enthusiasts. ORCUS RBW’s copper water block is a most advanced design of micro channels (0.1mm), extra large contact fin area with multiple channels for the best direct flow of liquid. More than this, ORCUS RBW’s Pump is placed externally which will not incur vibration and stress on M/B and CPU. ORCUS RBW external Pump is designed for high Q-Max, low dBA, and contains a reliable Bearing type. Not only a new design pump and water block are used, ORCUS RBW’s radiator is also using high density design fin radiator. ORCUS RBW has led the trend to designing a “Rotating Blade” with most popular ADD LED lighting inside tank, which able to show water flow and indicates the coolant level. More than rotating blade indicator, ORCUS RBW is also designed to be refillable. Furthermore, ORCUS RBW cooling fan system is with a 12025 ADD PWM fan, 8port control hub, and remote controller. With switch function (M/B ; Remote) of controller Hub, either you can connect control hub to M/B ADD header (thus, all cooling system ADD lighting including M/B ADD will be controlled synchronously by M/B), or you can switch to “remote” of control hub if no ADD header on M/B, then all ADD lighting will be controlled by Remote controller. ORCUS RBW is not only one of the best performing All-In-One liquid cooling at the market but it is the most user friendly AIO cooler in the world by the pre-filled liquid, providing extra 100ml coolant for your convenience for refill, which brought to you for the joy of friendly design and the surprisingly efficient performance.

  • Best performing, most user friendly and most spot light catch , an AIO liquid cooling system at market
  • All-In-One liquid CPU cooler with external PUMP, copper Water block and Rotating Blade with Rainbow ADD light
  • New design and External Pump with high Q-max (86 L/H) and no vibration incurred on M/B and CPU
  • Durable and reliable PUMP Bearing type - Ceramic axis
  • Copper water block by micro channel, extra large contact fin area with multiple channels to provide best flow of liquid
  • Cooling fan system with a 12025 Rainbow ADD PWM fan, 8 port control hub and remote controller

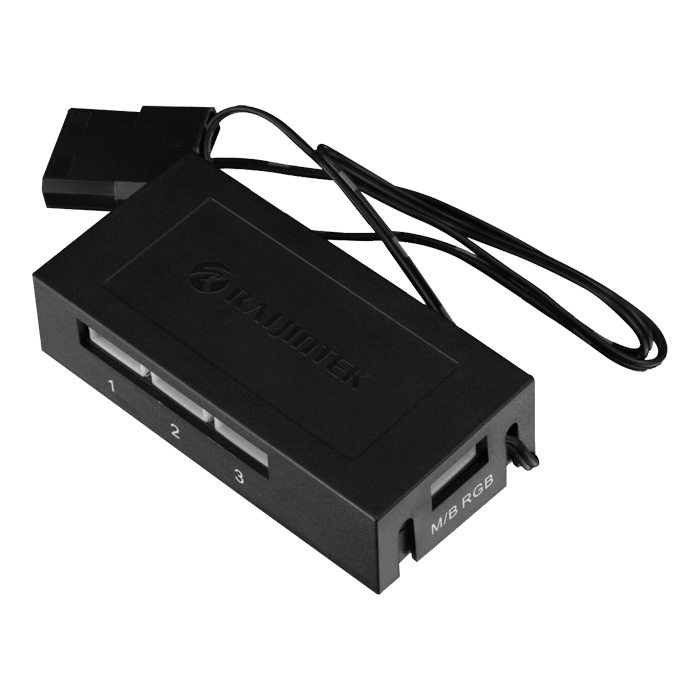

  • 8port Control hub with switch of "M/B ; Remote" to provide most usage of Rainbow ADD lighting control
  • Rotating Blade design with Rainbow ADD LED inside tank to show water flow and indicates the coolant level
  • A performing 12025 PWM fan with Rainbow ADD lighting
  • Specific 11 fan blade design and 8pcs Anti-vibration rubbers
  • Refillable and high capacity coolants pre-filled design
  • 120mm high density fin radiator with 12 channels
  • Solid mounting kits to provide sturdy installation
  • Mesh tube with low evaporation rate
  • Multiple mounting kits for modern sockets of INTEL & AMD CPU
SPECIFICATION
Product Name ORCUS 120 RBW
Product Number 0R10B00102
Radiator Dimension [W×H×D] 152×120×27 mm
Weight [Block+Pump+Radiator] 710g
Thermal Resistance 0.11 °C/W
Liquid Capacity 115ml ±10%
Fan Q'ty 1 pcs
Tubing Dimension ID – 5mm / OD – 10.6mm
Material Copper Cold Plate / Alu. Radiator
PUMP
Dimension [W×D×H] 69.5×40×33 mm
Bearing type Ceramic Axis
Q-max 86 L/H
Pressure Head 1.4 Meter
Noise level 25 dBA [Max.]
Life Expectancy 50,000 hours
Speed 4500±10% R.P.M. at 12VDC
Rated Current 150mA
Voltage Rating 12 V
Power consumption 1.8 W
FAN
Dimension [W×H×D] 120×120×25 mm
Voltage Rating 12V
Starting Voltage 6V
Speed 400~1800 R.P.M.
Bearing Type Hydraulic Bearing
Air Flow 35.8 CFM [Max.]
Air Pressure 1.16 mmH2O [Max.]
Life Expectance 40,000 hrs
Noise Level 28 dBA [Max.]
Connector 5V ADD header, PWM 4 pin header
Rated Current 0.12A±10%
Power consumption 1.44W±10%
LED Rated Current 0.69A [Max.]
LED Power consumption 8.28W [Max.]
Accessories ARGB-PWM control hub × 1 ; Remote Controller × 1 ; Connect cable × 1
APPLICATION
Intel® All Socket LGA 775/115x/1200/1366/201x/2066 CPU (Core™ i3 / i5 / i7 / i9 CPU)
AMD® All AM4/AM3+/AM3/AM2+/AM2/FM2+/FM2 CPU
