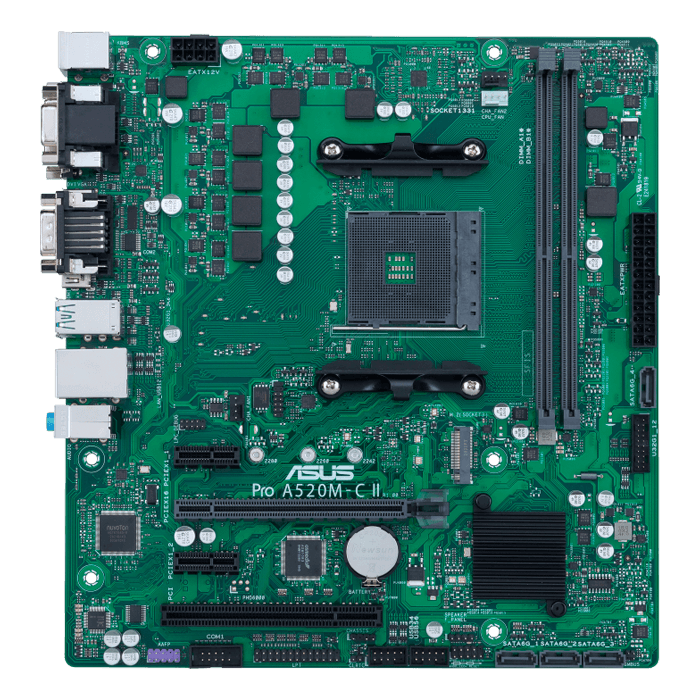

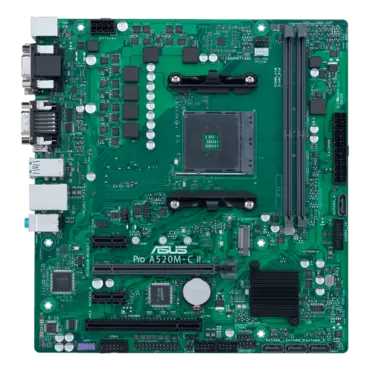

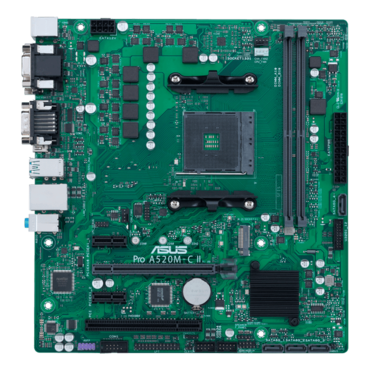

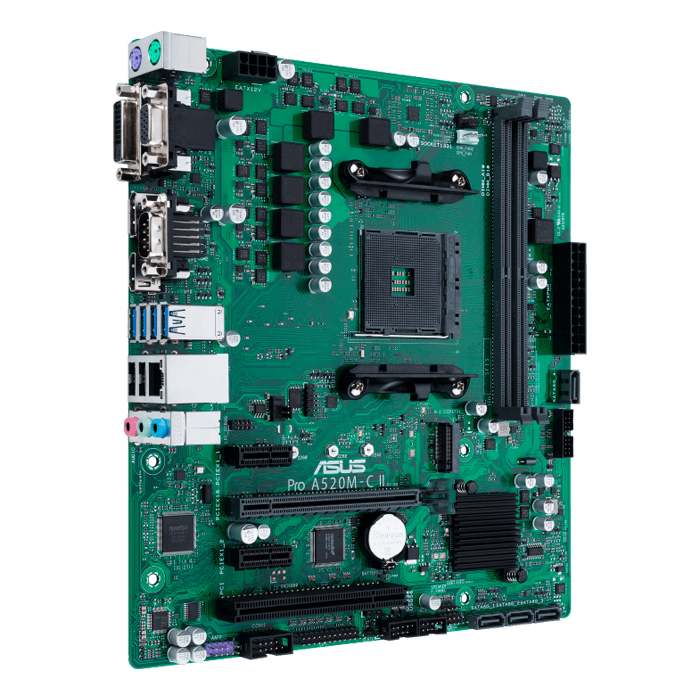

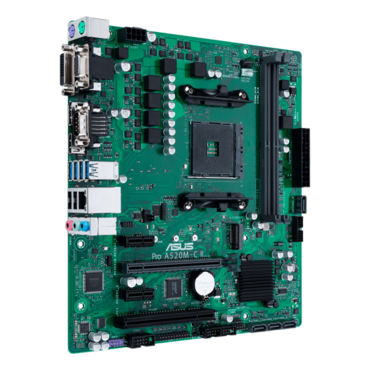

Pro A520M-C II/CSM, AMD A520 Chipset, AM4, DP, microATX Motherboard

Quantity:
  • SKU: 14490922
  • Manufacturer: ASUS
  • MPN: PRO A520M-C II/CSM
  • Availability: USUALLY SHIPS WITHIN 3-5 DAYS
Starting At
$110.38
Quantity:
Pro A520M-C II/CSM, AMD A520 Chipset, AM4, DP, microATX Motherboard

ASUS Pro A520M-C II/CSM. ASUS Pro business motherboards provide enhanced features to smooth your IT operations, including comprehensive system protection, 24/7 stability and reliability and an improved management suite for easier customization. Known as the world's biggest and best-known motherboard brand, ASUS provides world-class after-sales service and guaranteed long-term availability to maximize your investment over the product life cycle and offers a high-quality, TCO-optimized solution for your business computing-needs.

  • AMD AM4 socket: Ready for Ryzen™ 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors
  • ASUS-exclusive self-recovering BIOS technology for automatic system BIOS recovery from a verified backup
  • ASUS LPC debug header for more efficient troubleshooting
  • Supports SMBUS header that connects to a DASH LAN for remote IT management
  • Innovative moisture-resistant coating to protect the motherboard from harsh environments
  • Event log for capturing and managing detailed system information
  • Commercial BIOS kit to make customization faster and more efficient
  • ASUS Control Center Express(ACCE) to make IT endpoint management easier
CPU AMD Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors
*Refer to www.asus.com for CPU support list.
Chipset AMD A520 Chipset
Memory DDR4 4866(O.C.)/4600(O.C.)/4466(O.C.)/4400(O.C.)/4333(O.C.)/4266(O.C.)/4200(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/346(O.C.)/3400(O.C.)/3333(O.C.)/3200/3000/2933/2800/2666/2400/2133 MHz, Un-buffered Memory*
Dual Channel Memory Architecture
*ECC memory (ECC mode) support varies by CPU.
*Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists), and memory frequency support depends on the CPU types.
Graphics 1 x DisplayPort 1.2
1 x D-Sub
1 x DVI-D
1 x HDMI™ 2.1 (4K@60Hz)
*Graphics specifications may vary between CPU types.
*The DVI-D port and the DisplayPort cannot work at the same time. Only the DVI-D port functions when the two ports are both connected.

Expansion Slots AMD Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors
1 x PCIe 3.0 x16 slot (supports x16 mode)
AMD A520 Chipset
2 x PCIe 3.0 x1 slots
1 x PCI slot
Storage Supports 1 x M.2 slot and 4 x SATA 6Gb/s ports
AMD Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors
M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)
AMD A520 Chipset
4 x SATA 6Gb/s ports
Support RAID 0, 1, 10
Ethernet 1 x Realtek 1Gb Ethernet
ASUS LANGuard
USB Rear USB:Total 6 ports
4 x USB 3.2 Gen 1 ports (4 x Type-A)
2 x USB 2.0 ports (2 x Type-A)

Front USB:Total 6 ports
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports
Audio Realtek ALC897 7.1 Surround Sound High Definition Audio CODEC*
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
*A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

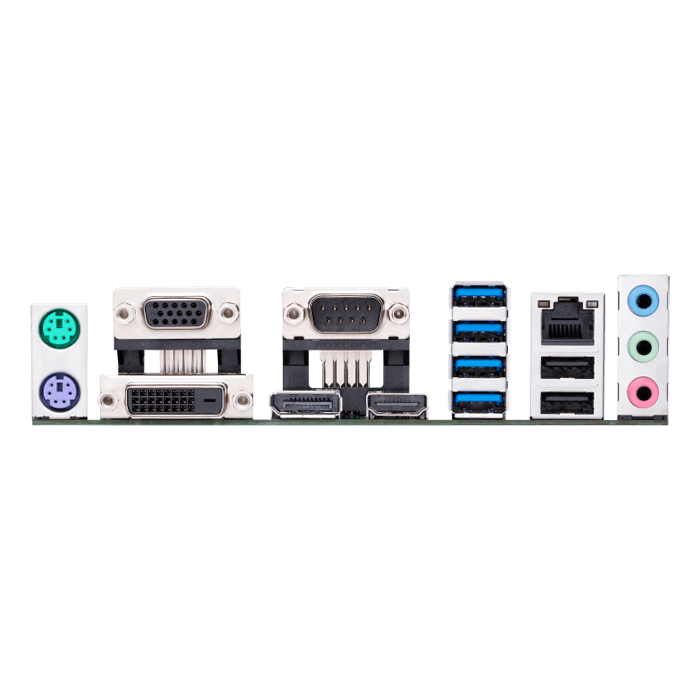

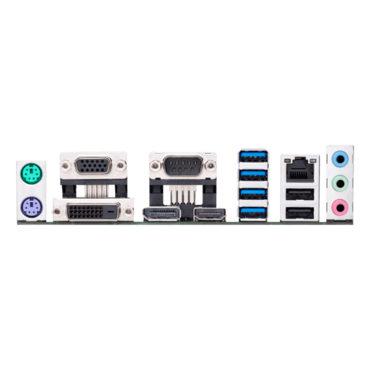

Back Panel I/O Ports 4 x USB 3.2 Gen 1 ports (4 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
1 x DisplayPort
1 x D-Sub port
1 x DVI-D port
1 x HDMI™ port
1 x Realtek 1Gb Ethernet port
3 x Audio jacks
1 x COM port
1 x PS/2 Keyboard (purple) port
1 x PS/2 Mouse (green) port
Intrernal I/O Connectors Fan and Cooling related
1 x 4-pin CPU Fan header
2 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
Storage related
1 x M.2 slot (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
Miscellaneous
1 x Clear CMOS header
1 x Chassis Intrude header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x LPC debug header
1 x LPT header
1 x SMBUS header
1 x Speaker header 1 x 10-1 pin System Panel header
Special Features ASUS Q-Design
- ASUS Q-DIMM
- ASUS Q-Slot
ASUS Thermal Solution
- Aluminum heatsink design
ASUS EZ DIY
- Box Headers
Bespoke Motherboard Design & Business Focused Features
- ASUS Self Recovering BIOS
- ASUS Event Log
- ASUS Commercial BIOS kit
- Anti-Moisture Coating
- 24/7 Reliability
- Overcurrent Protection TPM 2.0 IC Onboard
Software Features  ASUS Exclusive Software
IT Management software supported
- ASUS Control Center Express(ACCE)
BIOS 128 Mb Flash ROM, UEFI AMI BIOS
Manageability WOL by PME, PXE
Accessories Cables
2 x SATA 6Gb/s cables
Miscellaneous
1 x I/O Shield
1 x M.2 SSD screw package
Installation Media
1 x Support DVD
Documentation
1 x ACC Express Activation Key Card
1 x User manual
Operating System Windows 10 64bit
Form Factor microATX
24.4cm x 22.9cm
