Pro B560M-CT/CSM, Intel® B560 Chipset, LGA 1200, DP, microATX Motherboard
Quantity:
- SKU: 14433761
- Manufacturer: ASUS
- MPN: PRO B560M-CT/CSM
- Availability: USUALLY SHIPS WITHIN 3-5 DAYS
Starting At
$126.61
As low as $10.55/ Month*

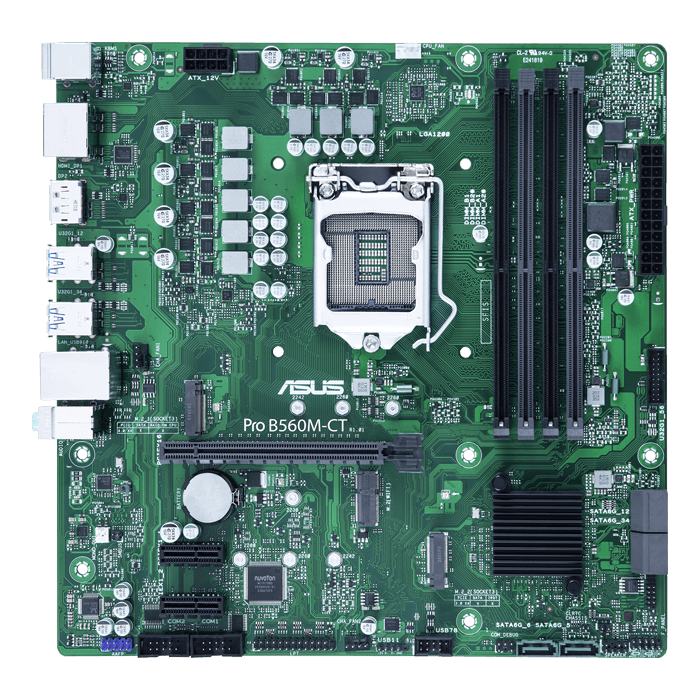

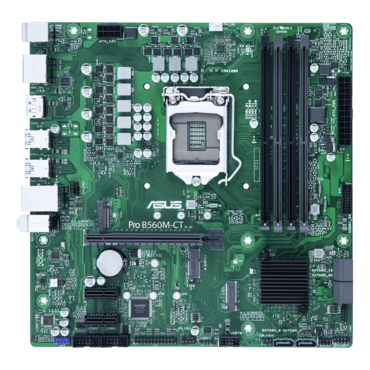

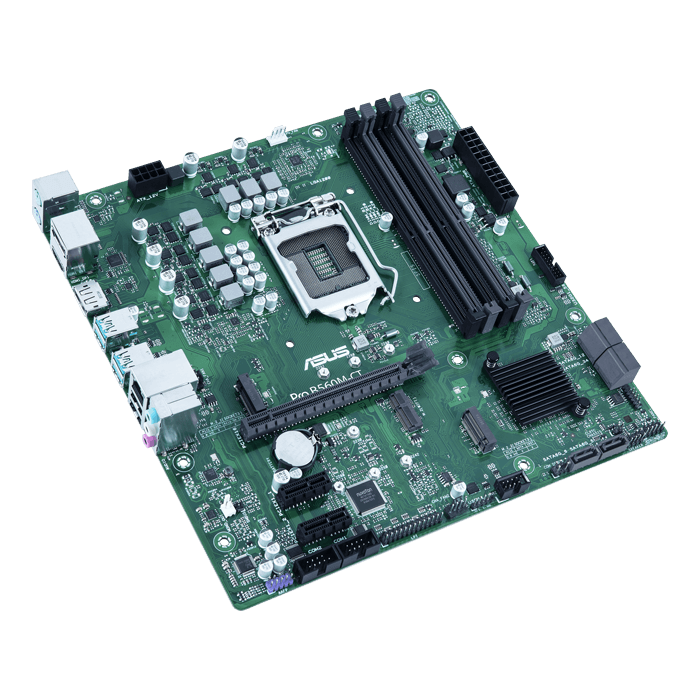

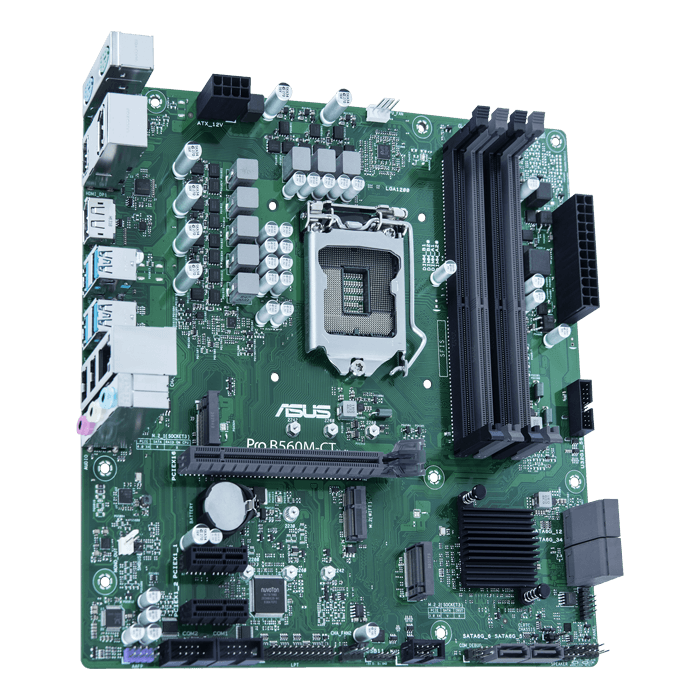

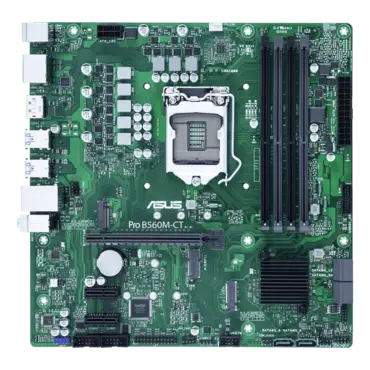

Pro B560M-CT/CSM, Intel® B560 Chipset, LGA 1200, DP, microATX Motherboard
ASUS Pro business motherboards provide enhanced features to smooth your IT operations, including comprehensive system protection, 24/7 stability and reliability and an improved management suite for easier customization. Known as the world's biggest and best-known motherboard brand, ASUS provides world-class after-sales service and guaranteed long-term availability to maximize your investment over the product life cycle and offers a high-quality, TCO-optimized solution for your business computing-needs.
- Intel® LGA 1200 socket: Ready for 11th Gen Intel® Core™ processors
- ASUS-exclusive self-recovering BIOS technology for automatic system BIOS recovery from a verified backup
- Supports SMBUS header that connects to a DASH LAN for remote IT management
- ASUS COM debug header for more efficient troubleshooting
- Innovative moisture-resistant coating to protect the motherboard from harsh environments
- Event log for capturing and managing detailed system information
- Commercial BIOS kit for faster and more efficient customization
- ASUS Control Center Express (ACCE) for easier IT endpoint management
- Ultrafast connectivity: PCIe® 4.0 and Intel® 1 Gb Ethernet
| CPU |
Intel® Socket LGA1200 for 11th Gen Intel® Core™ Processors & 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
Supports Intel® 14nm CPU Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0** * Refer to www.asus.com for CPU support list. ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types. |
| Chipset | Intel® B560 Chipset |
| Memory |
DDR4 4600(OC)/4400(OC)/4266(OC)/4000(OC)//3733(OC)/3600(OC)/3466(OC)/3333(OC)/3200(OC)/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) OptiMem pends on the CPU types. |
| Graphics |
2 x DisplayPort 1.4 1 x HDMI™ 1.4 / 2.0*** * Graphics specifications may vary between CPU types. ** Intel® 11th & 10th processors support DisplayPort 1.4 with max. resolution of 4096 x 2304 @60Hz. Please refer to www.intel.com for any updates. *** Only Intel® 11th Gen processors support HDMI™ 2.0 with max. resolution of 4K@60Hz, others will only support HDMI™ 1.4 with max. resolution of 4K@30Hz .Please refer to www.intel.com for any updates. |
| Expansion Slots |
Intel®11th &10th Gen Processors 1 x PCIe 4.0/3.0 x16 slot (support x16 mode) - Intel® 11th processors support PCIe 4.0 x16 mode - Intel® 10th processors support PCIe 3.0 x16 mode Intel® B560 Chipset 2 x PCIe 3.0 x1 slots |
| Storage |
Intel® 11th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280 - Only Intel® 11th Gen processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUs Intel® B560 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)* 6 x SATA 6Gb/s ports * When a device in SATA mode is installed on the M.2_2 socket, SATA6G_2 port cannot be used. |
| Ethernet | 1 x Intel® I219-V 1Gb Ethernet |
| Wireless & Bluetooth | M.2 slot only (Key E, CNVi & PCIe) |
| USB |
Rear USB:Total 6 ports 4 x USB 3.2 Gen 1 ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB:Total 5 ports 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 1 x USB 2.0 header supports additional 2 USB 2.0 ports 1 x USB 2.0 header supports additional 1 USB 2.0 port |
| Audio |
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback " *A chassis with an HD audio module in the front panel is required to support 7.1-channel audio output. |
| Back Panel I/O Ports |

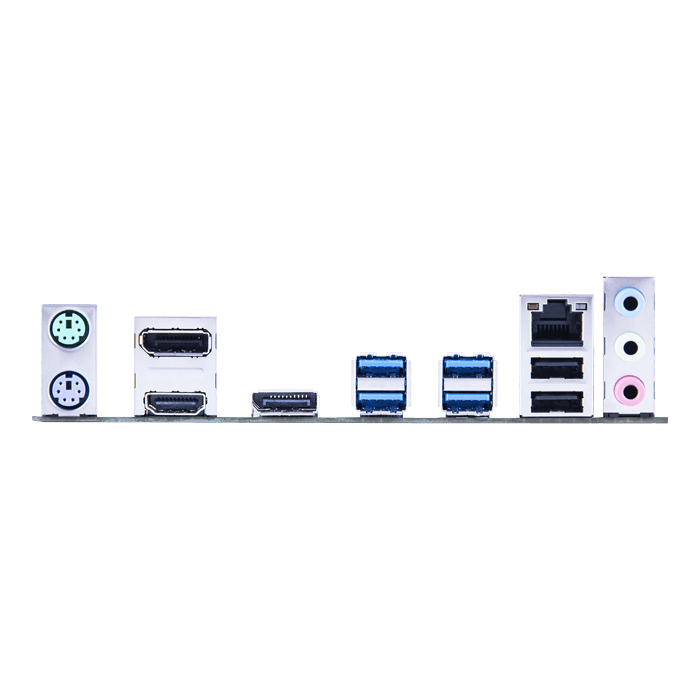

4 x USB 3.2 Gen 1 ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 2 x DisplayPort 1 x HDMITM port 1 x M.2 slot (Key E) 1 x Intel® I219V 1Gb Ethernet port 3 x Audio jacks 1 x PS/2 keyboard (purple) port 1 x PS/2 mouse (green) port |
| Intrernal I/O Connectors |
Fan and cooling related 1 x 4-pin CPU Fan header 2 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 2 x M.2 slots (Key M) 6 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 1 x USB 2.0 header supports additional 2 USB 2.0 ports 1 x USB 2.0 header supports additional 1 USB 2.0 port Miscellaneous 1 x Clear CMOS header 1 x Chassis Intrude header 2 x COM Port headers 1 x Front Panel Audio header (AAFP) 1 x COM debug header 1 x LPT header 1 x Mono-out header(with Amp IC) 1 x SMBUS header 1 x Speaker header |
| Special Features |
ASUS EZ DIY - Box Headers Bespoke Motherboard Design & Business Focused Features : - ASUS Self Recovering BIOS - ASUS Event Log - ASUS Commercial BIOS kit - Anti-Moisture - 24/7 Reliability - Overcurrent Protection TPM2.0 IC Onboard |
| Software Features |
ASUS Exclusive Software IT Management software supported - ASUS Control Center Express(ACCE) |
| BIOS | 128Mb Flash ROM, UEFI AMI BIOS |
| Manageability | WOL by PME, PXE |
| Accessories |

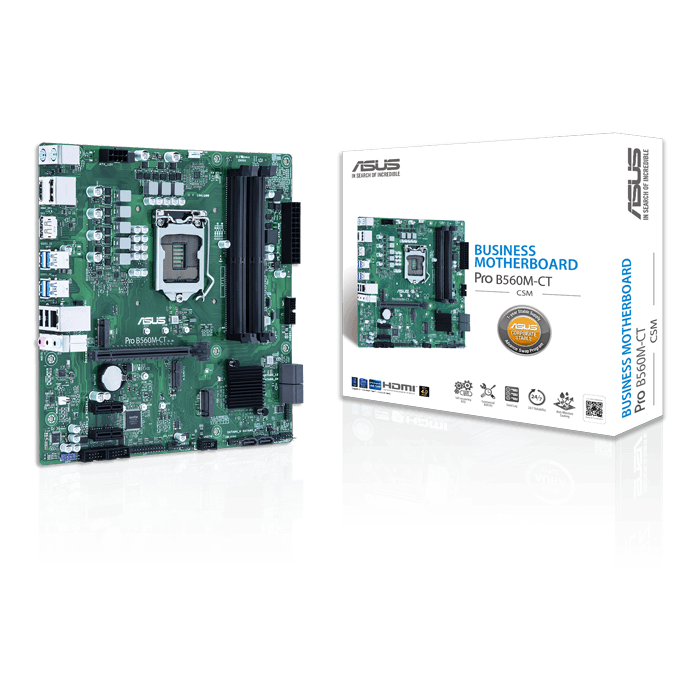

Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x I/O Shield 1 x M.2 SSD screw package 1 x M.2 Key E screw package Installation Media 1 x Support DVD Documentation 1 x ACC Express Activation Key Card 1 x User manual |
| Operating System | Windows® 10 64-bit |
| Form Factor |
microATX 9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm ) |
