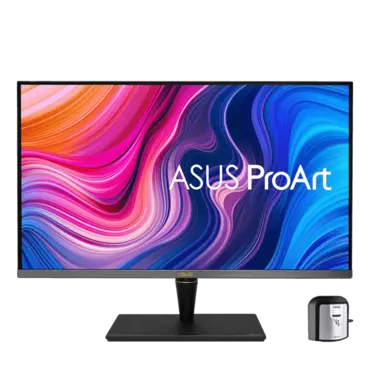

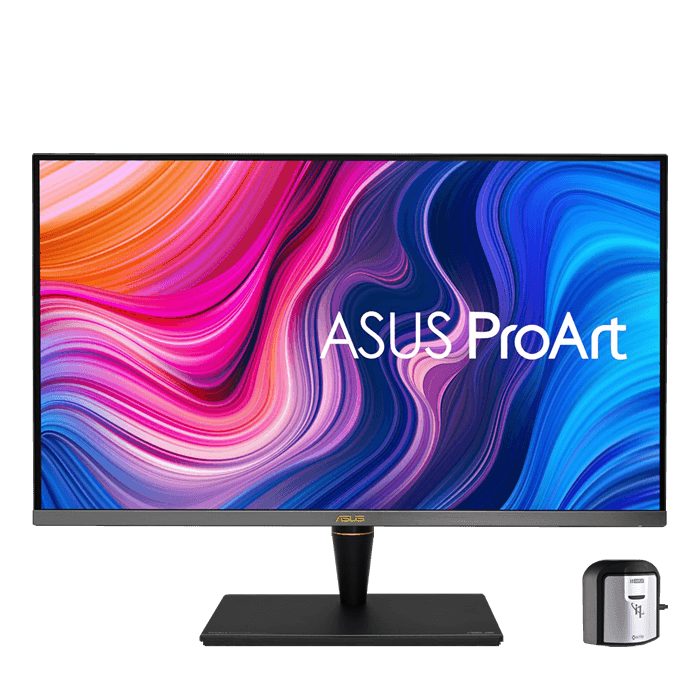

ASUS ProArt Display PA27UCX-K. Master Your HDR Workflow. The ASUS ProArt Display PA27UCX-K is aimed at discerning content creators including videographers, cinematographers, and colorists who are seeking the finest display for their workflow. With new Off-Axis Contrast Optimization (OCO) technology that reduces halo effects when viewing the screen from a wide angle, ProArt PA27UCX-K ensures on-screen content is displayed accurately to all viewers. The PA27UCX-K is the world's first 27-inch 4K HDR monitor with peak brightness of 1,000 nits and mini-LED backlighting, enabling 576 zones of local dimming control and support for multiple HDR formats, including Dolby Vision™, HLG and HDR-10. The PA27UCX-K's impressive panel reproduces the brightest whites and the deepest blacks with sharper, more detailed visuals. With Quantum Dot technology, support for DCI-P3, Rec. 709, Rec. 2020, and Adobe RGB color spaces, together with a rich selection of connectivity, the PA27UCX-K is primed to take on any studio workflow.
- 27-inch Mini LED Backlight with 4K HDR, 576 zones local dimming
-
ASUS Off-Axis Contrast Optimization technology reduces halo effects by 80% and provides a 7X contrast-ratio enhancement for dark parts of the image when viewing the screen from an angle
-
Quantum-dot technology provides 97% DCI-P3, 99.5% Adobe RGB, 100% sRGB and 83% Rec. 2020 color space for exceptional color fidelity
- Support multiple HDR formats (Dolby Vision, HDR-10, HLG) presents lifelike experience and flexibility
- World-leading delta-E (ΔE) <1 color performance and ASUS ProArt Hardware Calibration technology for color-accuracy optimization, uniformity and color profile write-back
- USB-C supports signal, data transfer and Power Delivery provides up to 60W of power to external devices
- X-rite i1 Display Pro included
Model | ProArt Display PA27UCX-K |
Display |
Panel Size (inch) : 27 Pixels Per Inch (PPI) : 163 Aspect Ratio : 16:9 Display Viewing Area (H x V) : 596.16 x 335.34 mm Display Surface : Non-Glare Backlight Type : Mini-LED Panel Type : IPS Viewing Angle (CR≧10, H/V) : 178°/ 178° Pixel Pitch : 0.155mm Resolution : 3840x2160 Color Space (sRGB) : 100% Color Space (Adobe RGB) : 99.5% Color Space (DCI-P3) : 97% Brightness (HDR, Peak) : 1,000 cd/m2 Brightness (Typ.) : 300cd/m2 Contrast Ratio (HDR, Max) : 1,000,000:1 Contrast Ratio (Typ.) : 1000:1 Display Colors : 1073.7M (10 bit) Response Time : 4ms(GTG) Refresh Rate (Max) : 60Hz HDR (High Dynamic Range) Support : HDR10 HDR (High Dynamic Range) Support : HLG HDR (High Dynamic Range) Support : Dolby Vision Flicker-free : Yes LCD ZBD Warranty : Yes(3 yr) |
Video Feature |
Trace Free Technology : Yes ProArt Preset : Standard ProArt Preset : sRGB ProArt Preset : Adobe RGB ProArt Preset : DCI-P3 ProArt Preset : Rec. 2020 ProArt Preset : DICOM ProArt Preset : Rec. 709 ProArt Preset : HDR_PQ DCI ProArt Preset : HDR_PQ Rec2020 ProArt Preset : HDR_HLG ProArt Preset : Dolby Vision ProArt Preset : User mode1 ProArt Preset : User mode2 Color Temp. Selection : Yes(5 modes) Color Adjustment : 6-axis adjustment(R,G,B,C,M,Y) Gamma adjustment : Yes (Support Gamma 1.8/2.0/2.2/2.4/2.6 ) Color Accuracy : ΔE< 1 ASUS ProArt Hardware Calibration : Yes ProArt Palette : Yes QuickFit : Yes PIP / PBP Technology : Yes HDCP : Yes VRR Technology : Yes (Adaptive-Sync) Motion Sync : Yes HDR Preview : Yes Low Blue Light : Yes Multiple HDR Mode : Yes |
Audio Feature | Speaker : Yes(2Wx2) |
I/O Ports |
USB-C x 1 (DP Alt Mode) DisplayPort 1.2 x 1 HDMI(v2.0) x 2 USB Hub : 4x USB 3.2 Gen 1 Type-A Earphone Jack : Yes USB-C Power Delivery : 90W |
Signal Frequency | Digital Signal Frequency : 40~144 KHz (H) / 30~60 Hz (V) |
Power Consumption |
Power Consumption : <46W Power Saving Mode : <0.5W Power Off Mode : 0W (hard switch) Voltage : 100-240V, 50/60Hz |
Mechanical Design |
Tilt : Yes (+23° ~ -5°) Swivel : Yes (+60° ~ -60°) Pivot : Yes (+90° ~ -90°) Height Adjustment : 0~120mm Ambient Light Sensor : Yes VESA Wall Mounting : 100x100mm Kensington Lock : Yes |
Dimensions (Esti.) |
Phys. Dimension with Stand (W x H x D) : 625.2 x (424.5~544.5) x 228.8 mm Phys. Dimension without Stand (W x H x D) : 625.2 x 367.2 x 91.3 mm Box Dimension (W x H x D) : 768 x 479 x 355 mm |
Weight (Esti.) |
Net Weight with Stand : 11.5 Kg Net Weight with Stand : 13.6 Kg* Net Weight without Stand : 7.6 Kg Gross Weight : 15.7 Kg Gross Weight : 17.8 Kg* |
Accessories (vary by regions) |

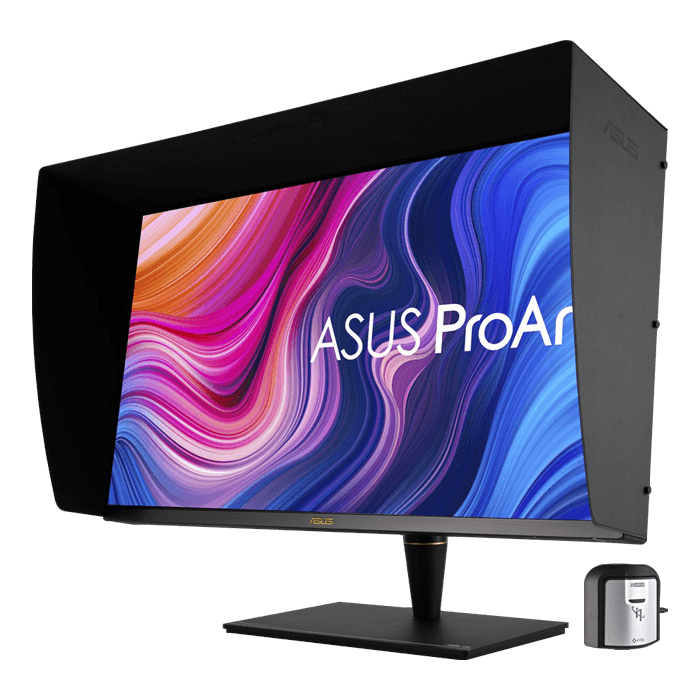

Color pre-calibration report DisplayPort cable HDMI cable Monitor hood Power cord Quick start guide USB-C cable USB-C to A cable Warranty Card X-rite i1 Display Pro Calibrator |
Operation Temperature / Humidity |
Operation temperature : 0~+40°C Operation humidity : 10%~80% |
Certificate |
TÜV Flicker-free TÜV Low Blue Light VESA DisplayHDR 1000 Calman Ready |
Note |
USB-C port with power output 15W, with additional power input can up to 90W (depends on adaptor capacity). *For IEC 62368-1 Regulation |
