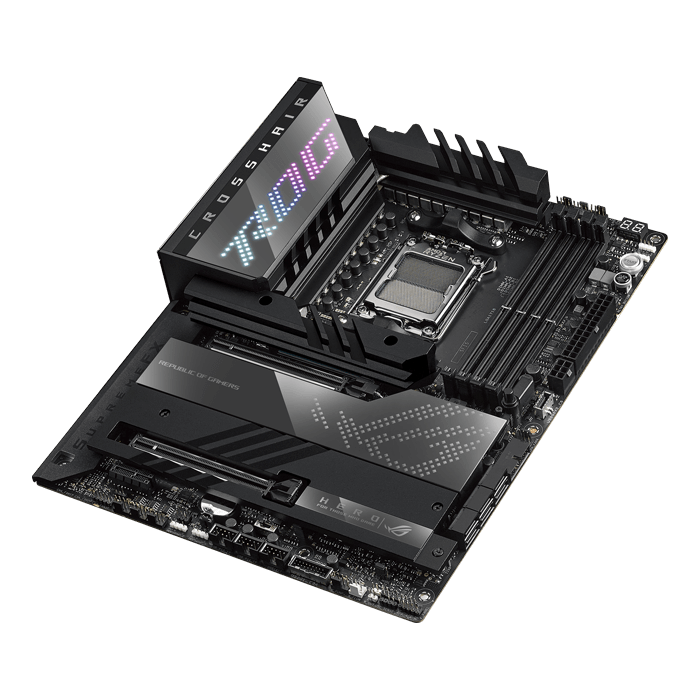

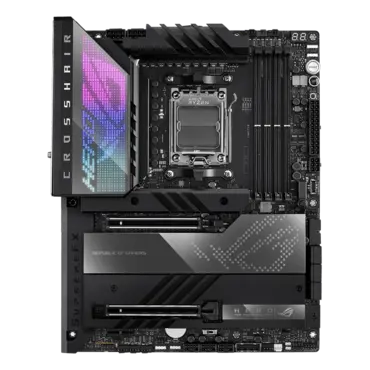

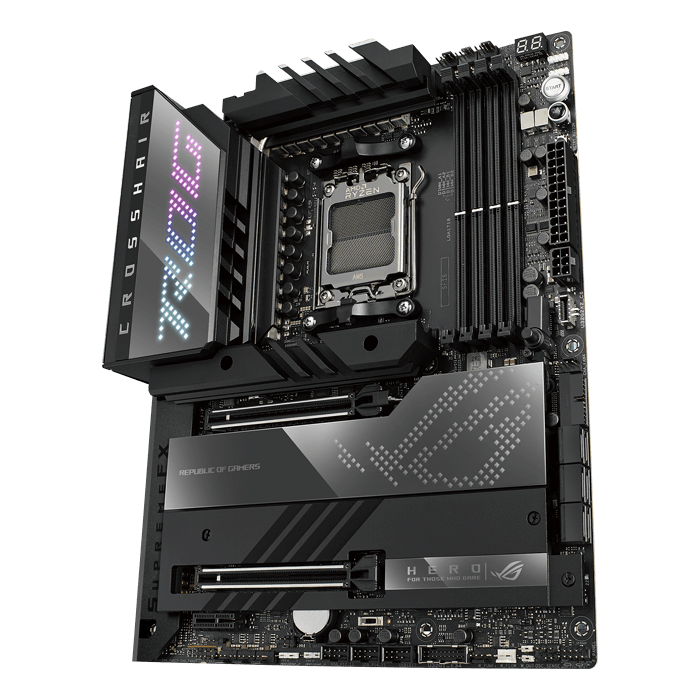

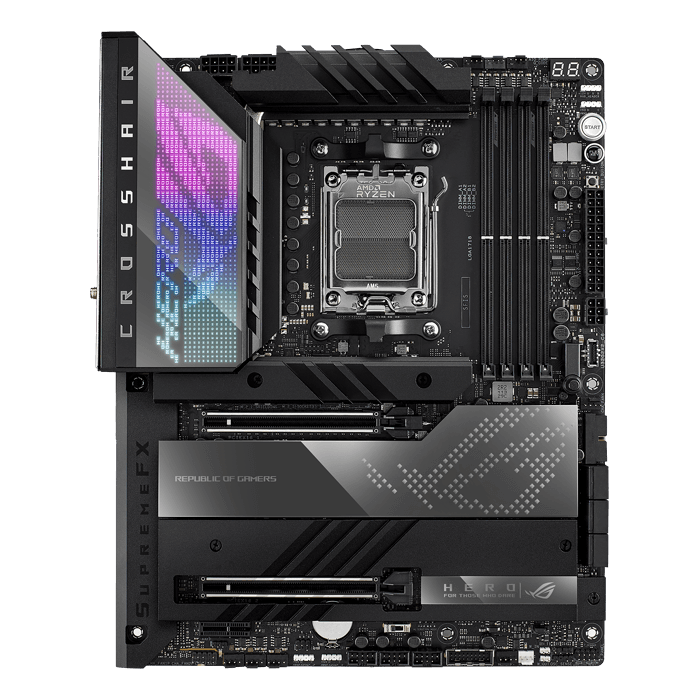

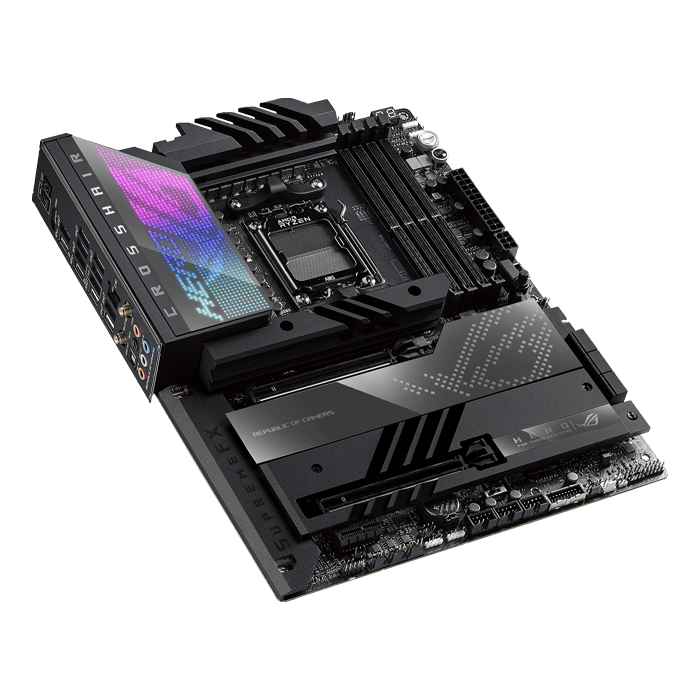

ROG Crosshair X670E Hero, AMD X670 Chipset, AM5, ATX Motherboard

CPU

AMD Socket AM5 for AMD Ryzen™ 7000 Series Desktop Processors*

* Refer to www.asus.com for CPU support list.

Chipset

AMD X670

Memory

4 x DIMM, Max. 128GB, 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800MHz, Un-buffered Memory*

Dual Channel Memory Architecture

Supports AMD ^® EXTended Profiles for Overclocking (EXPO™)

OptiMem II

* Supported memory types, data rate(Speed), and number of DRAM module vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list.

* Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function

Graphics

1 x HDMI ^® port*

2 x USB4 ^® ports support USB Type-C ^® display outputs**

*Supports 4K@60Hz as specified in HDMI 2.1.

**VGA resolution support depends on processors' or graphic cards' resolution.

Expansion Slots

AMD Ryzen™ 7000 Series Desktop Processors

2 x PCIe 5.0 x16 slots (supports x16 or x8/x8 mode(s)*

AMD X670 Chipset

1 x PCIe 4.0 x1 slots

* When the PCIe 5.0 M.2 card is installed on the PCIEX16_2 slot, PCIEX16_1 will run x8 only.

Storage

Total supports 5 x M.2 slots and 6 x SATA 6Gb/s ports*

AMD Ryzen™ 7000 Series Desktop Processors

M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)

M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)

PCIe 5.0 M.2 slot (Key M) via PCIe 5.0 M.2 card, type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)**

AMD X670 Chipset

M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 )

M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 )

6 x SATA 6Gb/s ports

*AMD RAID Xpert2 Technology supports both NVMe RAID 0/1/10 and SATA RAID 0/1/10.
**Performance may vary depending on the SSD's firmware version and the system hardware & system configuration, for more information refer to www.asus.com for device support list.

Ethernet

1 x Intel ^® 2.5Gb Ethernet

ASUS LANGuard

Wireless & Bluetooth

Wi-Fi 6E
2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
Supports 2.4/5/6GHz frequency band*
Bluetooth v5.2
* WiFi 6E 6GHz regulatory may vary between countries, and function will be ready in Windows 11 or later.

USB

Rear USB (Total 12 ports)

2 x USB4 ^® ports with Intel ^® JHL8540 USB4 ^® controller (2 x USB Type-C ^® )

1 x USB 3.2 Gen 2x2 port(s) (1 x USB Type-C ^® )

9 x USB 3.2 Gen 2 port(s) (8 x Type-A + 1 x USB Type-C ^® )

Front USB (Total 11 ports)

1 x USB 3.2 Gen 2x2 connector (supports USB Type-C ^® with up to 60W PD/QC4+)

2 x USB 3.2 Gen 1 header(s) support(s) additional 4 USB 3.2 Gen 1 ports

3 x USB 2.0 header(s) support(s) additional 6 USB 2.0 ports

Audio

ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082
- Impedance sense for front and rear headphone outputs
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
- Supports up to 32-Bit/384 kHz playback

Audio Features

- SupremeFX Shielding Technology

-ESS ^® SABRE9218PQ DAC/AMP

- Gold-plated audio jacks

- Rear optical S/PDIF out port

- Premium audio capacitors

- Audio cover

Back Panel I/O Ports

2 x USB4 ^® ports with Intel ^® JHL8540 USB4 ^® controller (2 x USB Type-C ^® )

1 x USB 3.2 Gen 2x2 port (1 x USB Type-C ^® )

9 x USB 3.2 Gen 2 ports (8 x Type-A + 1 x Type-C ^® )

1 x HDMI ^® port

1 x Wi-Fi Module

1 x Intel ^® I225-V 2.5Gb Ethernet port

5 x Gold-plated audio jacks

1 x Optical S/PDIF out port

1 x BIOS FlashBack™ button

1 x Clear CMOS button

Internal I/O Connectors

Fan and Cooling related

1 x 4-pin CPU Fan header(s)

1 x 4-pin CPU OPT Fan header(s)

1 x 4-pin AIO Pump header(s)

4 x 4-pin Chassis Fan header(s)

1 x W_PUMP+ header(s)

1 x 2-pin Water In header

1 x 2-pin Water Out header

1 x 3-pin Water Flow header

Power related

1 x 24-pin Main Power connector

2 x 8-pin +12V Power connector

1 x 6-pin PCIe Power connector

Storage related

4 x M.2 slots (Key M)

6 x SATA 6Gb/s ports

USB

1 x USB 3.2 Gen 2x2 connector (support(s) USB Type-C ^® )

2 x USB 3.2 Gen 1 header(s) support(s) additional 4 USB 3.2 Gen 1 ports

3 x USB 2.0 header(s) support(s) additional 6 USB 2.0 ports

Miscellaneous

3 x Addressable Gen 2 header(s)

1 x Alteration Mode Switch

1 x Aura RGB header(s)

1 x FlexKey button

1 x Front Panel Audio header (AAFP)

1 x ReTry button

1 x Start button

1 x 10-1 pin System Panel header

1 x Thermal Sensor header

Special Features

Extreme OC Kit

- FlexKey button

- ReTry button

- Start button

Extreme Engine Digi+

- 10K Black Metallic Capacitors

- MicroFine Alloy Choke

ASUS Q-Design

- M.2 Q-Latch

- PCIe Slot Q-Release

- Q-Code

- Q-Connector

- Q-DIMM

- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])

- Q-Slot

ASUS Thermal Solution

- M.2 heatsink backplate

- M.2 heatsink

- VRM heatsink design

ASUS EZ DIY

- BIOS FlashBack™ button

- Clear CMOS button

- ProCool II

- Pre-mounted I/O shield

- SafeSlot

- SafeDIMM

Aura Sync

- Aura RGB header(s)

- Addressable Gen 2 header(s)

ASUS Lighting Control

- RGB header(s)

Front Panel USB 3.2 Gen 2x2 with Quick Charge 4+ Support

- Support: up to 60W charging*

- Output: 5/9/15/20V max. 3A, PPS:3.3–21V max. 3A

- Compatible with QC 4.0/3.0/2.0, PD3.0 and PPS

* To support 60W, please install the power cable to 6-pin PCIe Graphics Card connector or can only support 27W

Software Features

ROG Exclusive Software

- GameFirst VI

- ROG CPU-Z

- Sonic Studio III + Sonic Studio Virtual Mixer + Sonic Suite Companion

- Sonic Radar III

- DTS ^® Sound Unbound

- BullGuard Internet Security (1-year full version)

ASUS Exclusive Software

Armoury Crate

- AIDA64 Extreme (1 year full version)

- Aura Creator

- Aura Sync

- Fan Xpert 4 with AI Cooling II

- Power Saving

- Polymo Lighting

- Two-Way AI Noise Cancellation

AI Suite 3

TPU

DIGI+ Power Control

PC Cleaner

Turbo app

MyAsus

WinRAR

UEFI BIOS

ASUS EZ DIY

- ASUS CrashFree BIOS 3

- ASUS EZ Flash 3

- ASUS UEFI BIOS EZ Mode

BIOS

256 Mb Flash ROM, UEFI AMI BIOS

Manageability

WOL by PME, PXE

Accessories

Cables

1 x ARGB RGB extension cable

1 x RGB extension cable

4 x SATA 6Gb/s cables

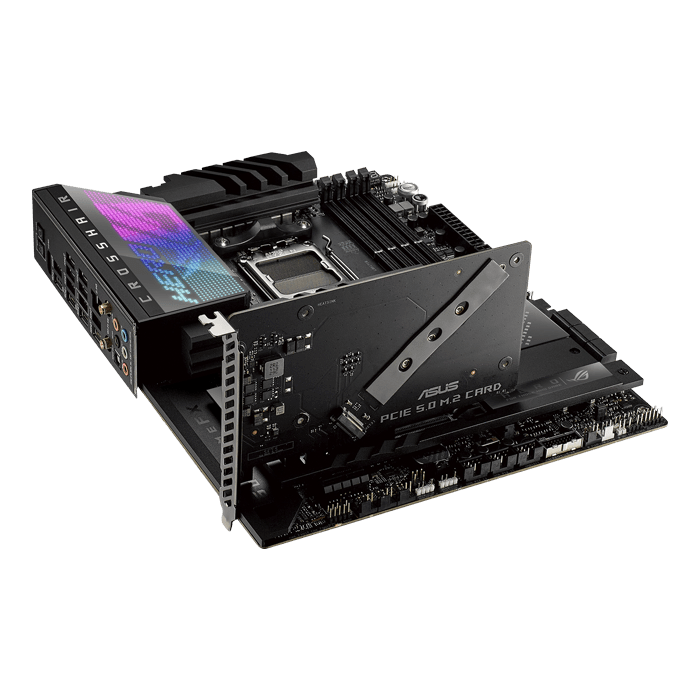

PCIe 5.0 M.2 Card with Heatsink

1 x PCIe 5.0 M.2 Card with heatsink

1 x M.2 screw package for PCIe 5.0 M.2 Card

Additional Cooling Kit

1 x Thermal pad for M.2

Miscellaneous

1 x ASUS Wi-Fi moving antennas

3 x Rubber Packages for M.2 backplate

1 x Q-connector

1 x M.2 Q-Latch package

3 x M.2 Q-Latch packages for M.2 backplate

1 x ROG Graphics card holder

1 x ROG key chain

1 x ROG stickers

1 x ROG thank you card

Installation Media

1 x USB drive with utilities and drivers

Documentation

1 x User guide

Operating System

Windows ^® 11 64-bit

Form Factor

ATX Form Factor

12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
