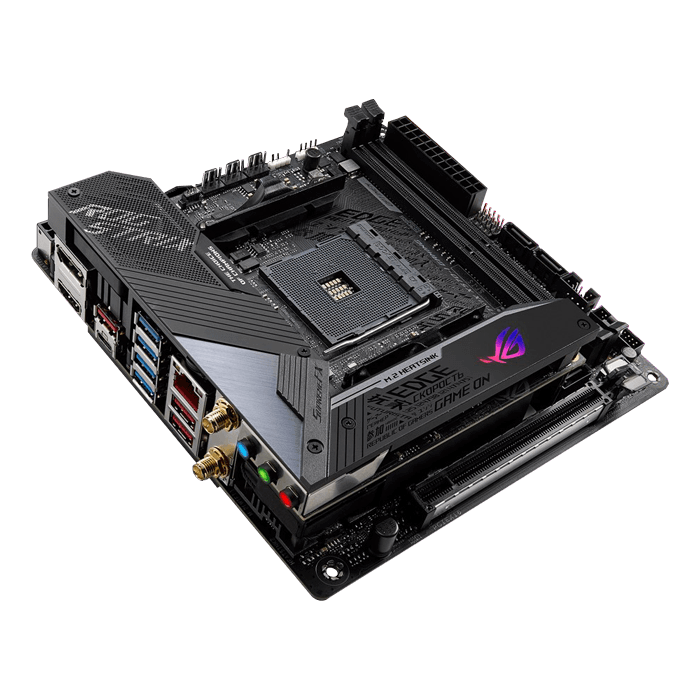

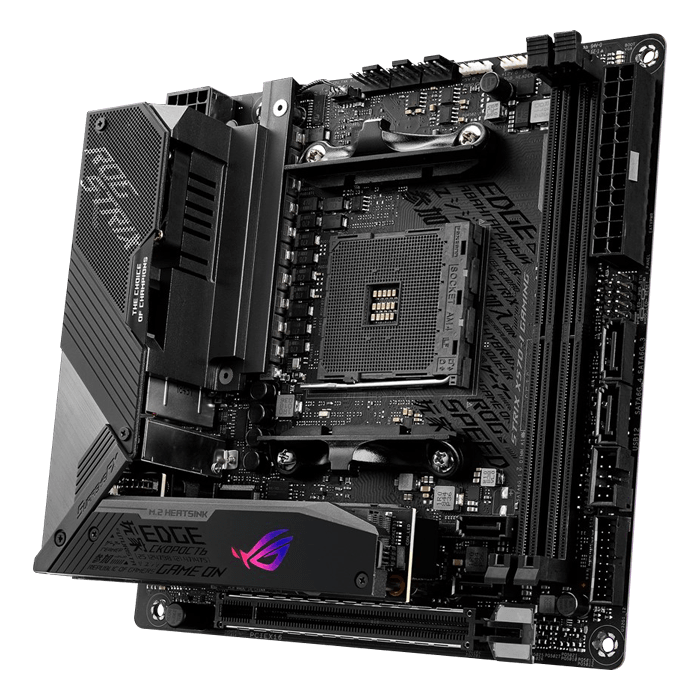

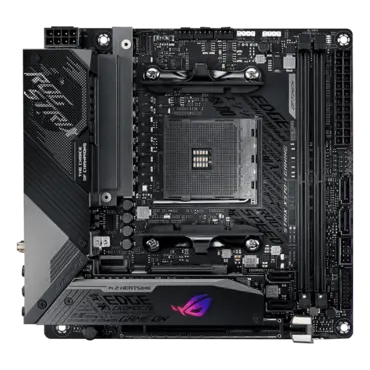

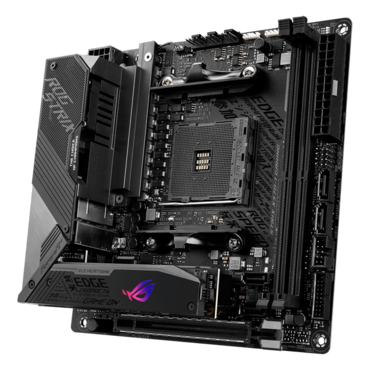

ROG Strix X570-I Gaming, AMD X570 Chipset, AM4, HDMI, Mini-ITX Motherboard
ASUS ROG Strix X570-I Gaming. ROG Strix X570-I Gaming rises above the rest to deliver incredible power and undeniable style for your small form factor gaming build. With support for the latest AMD Ryzen processors, ROG Strix X570-I Gaming is primed to deliver maximum gaming performance, while its revolutionary miniature active cooling design efficiently works to keep temperatures down. Coupled with HDMI 2.0 and DisplayPort 1.4 for ultra-high-resolution video output, ultrafast next-generation wireless networking and PCIe 4.0 connectivity, ROG Strix X570-I Gaming is a compact gaming powerhouse.
- AM4 socket: Ready for 2nd and 3rd Gen AMD Ryzen™ processors to maximize connectivity and speed with up to two M.2 Drives, USB 3.2 Gen 2 and AMD StoreMI
- Aura Sync RGB: ASUS-exclusive Aura Sync RGB lighting, including RGB header and addressable Gen 2 header
- Optimal Power Solution: 8+2 power stages with a ProCool II power connector, alloy chokes and durable capacitors to support multi-core processors
- Comprehensive cooling design: VRM and chipset heatsinks add mass to help absorb more heat and feature miniature fans, an embedded chipset heatpipe, an M.2 heatsink and an aluminum backplate with cyber-text pattern
- Gaming connectivity: Supports PCIe 4.0, HDMI 2.0 and DisplayPort 1.4 and features dual M.2 and USB 3.2 Type-A and Type-C connectors
- Gaming networking: Intel Gigabit Ethernet with ASUS LANGuard, Wi-Fi 6 (802.11ax) with MU-MIMO support, and gateway teaming via GameFirst V
- 5-Way Optimization: Automated system-wide tuning, providing overclocking and cooling profiles tailor made for your rig
- Gaming audio: High-fidelity audio with SupremeFX S1220A, DTS® Sound Unbound and Sonic Studio III to draw you deeper into the action
- Gamer’s Guardian: ASUS SafeSlot and premium components for maximum endurance
CPU | AMD AM4 Socket 3rd and 2nd AMD Ryzen™/2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors
* Refer to www.asus.com for CPU support list |
Chipset | AMD X570 |
Memory | 3rd Gen AMD Ryzen™ Processors
2 x DIMM, Max. 64GB, DDR4 4800(O.C.)/4600(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3800(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3200(O.C.)/3000(O.C.)/2933(O.C.)/2800(O.C.)/2666/2400/2133 MHz Non-ECC, Un-buffered Memory * 2nd Gen AMD Ryzen™ Processors 2 x DIMM, Max. 64GB, DDR4 3600(O.C.)/3466(O.C.)/3400(O.C.)/3200(O.C.)/3000(O.C.)/2933/2800(O.C.)/2666/2400/2133 MHz Non-ECC, Un-buffered Memory * 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors 2 x DIMM, Max. 64GB, DDR4 3200(O.C.)/3000(O.C.)/2933(O.C.)/2800(O.C.)/2666/2400/2133 MHz Non-ECC, Un-buffered Memory Dual Channel Memory Architecture * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). |
Graphic | Integrated Graphics in the 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors
Multi-VGA output support : HDMI/DisplayPort ports - Supports HDMI 2.0b with maximum resolution of 4096 x 2160 @ 60 Hz - Support DisplayPort 1.4 with max. resolution 8 K 7680 × 4320 @60 Hz |
Expansion Slots | 3rd Gen AMD Ryzen™ Processors
1 x PCIe 4.0 x16 (x16 mode) 2nd Gen AMD Ryzen™ Processors 1 x PCIe 3.0 x16 (x16 mode) 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors 1 x PCIe 3.0 x16 (x8 mode) |
Storage | 3rd Gen AMD Ryzen™ Processors :
1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280 (PCIE 4.0 x4 and SATA modes) storage devices support 2nd Gen AMD Ryzen™/2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors : 1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280 (PCIE 3.0 x4 and SATA modes) storage devices support AMD X570 chipset : 1 x M.2_2 socket 3, with M Key, Type 2242/2260/2280 (PCIE 4.0 x4 and SATA modes) storage devices support 4 x SATA 6Gb/s port(s), Support Raid 0, 1, 10 |
LAN | Intel® I211-AT
Anti-surge LANGuard ROG GameFirst Technology |
Wireless Data Network | Supports channel bandwidth: HT20/HT40/HT80/HT160
Intel® Wi-Fi 6 AX200 2 x 2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) with MU-MIMO supports dual frequency band 2.4/5GHz Up to 2.4Gbps transfer speed |
Bluetooth | Bluetooth® 5.0 |
Audio | SupremeFX 8-Channel High Definition Audio CODEC S1220A
- Dual OP Amplifiers - Impedance sense for front and rear headphone outputs - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input - Supports up to 32-Bit/192kHz playback *2 Audio Feature : - DTS® Sound Unbound - LED-illuminated design - Brighten up your build with the gorgeous illuminated audio trace path. - Sonic Radar III - Sonic Studio III + Sonic Studio Virtual Mixer |
USB Ports | 3rd and 2nd Gen AMD Ryzen™/2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors :
4 x USB 3.2 Gen 1 port(s) (4 at back panel, blue) AMD X570 chipset : 4 x USB 3.2 Gen 2 port(s) (3 x Type-A+1 x Type-C) AMD X570 chipset : 2 x USB 3.2 Gen 1 port(s) (2 at mid-board) AMD X570 chipset : 2 x USB 2.0 port(s) |
ROG Exclusive Features | ROG Exclusive Software
- RAMCache III - CPU-Z - GameFirst V - Sonic Radar III - Sonic Studio III + Sonic Studio Virtual Mixer |
Special Features | 5-Way Optimization by Dual Intelligent Processors 5
- Whole system optimization with a single click! 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ VRM, Fan Xpert 4, and Turbo App together, providing better CPU performance, efficient power saving, precise digital power control, whole system cooling and even tailor your own app usages. TPU - Auto Tuning, TurboV, GPU Boost ASUS EPU : - EPU AURA : - Aura Lighting Control - Addressable Gen 2 Header ASUS Exclusive Features : - AI Suite 3 - Ai Charger ASUS EZ DIY : - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 ASUS Q-Design : - ASUS Q-Shield - ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED) - ASUS Q-Slot - ASUS Q-DIMM |

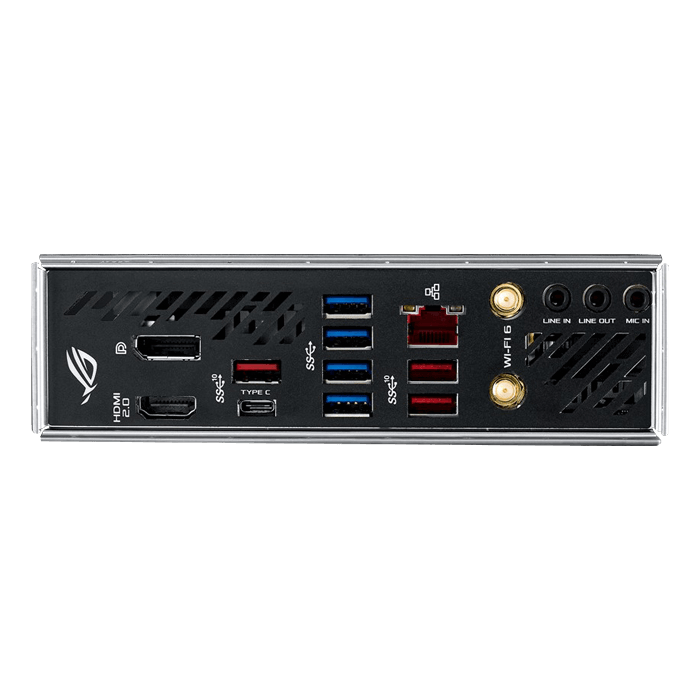

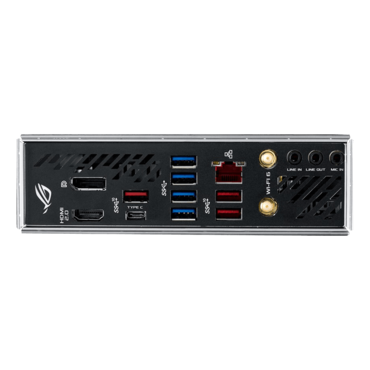

Back I/O Ports | 1 x DisplayPort
1 x HDMI 1 x ASUS Wi-Fi Module 3 x LED-illuminated audio jacks 4 x USB 3.2 Gen 1 (blue) 3 x USB 3.2 Gen 2 (up to 10Gbps) ports (Type-A) 1 x USB 3.2 Gen 2 (up to 10Gbps) ports (Type-C) Anti-surge LAN (RJ45) port |
Internal I/O Ports | 1 x HS_FAN
1 x PCH_FAN 1 x AAFP connector 1 x Aura RGB Strip Header(s) 1 x Addressable Gen 2 header(s) 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) 1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s) 2 x M.2 Socket 3 with M Key design, type 2242/2260/2280 storage devices support (Supports both SATA & PCIE SSD) 4 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) 1 x Chassis Fan connector(s) 1 x AIO_PUMP connector 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x Thermal sensor connector(s) 1 x Clear CMOS jumper(s) 1 x System panel connector 1 x T_Sensor Connector 1 x Speaker connector |
Accessories | User's manual
I/O Shield 4 x SATA 6Gb/s cable(s) 2 x M.2 Screw Package 1 x Supporting DVD 1 x ROG Strix stickers 1 x M.2 bracket 1 x Cable ties pack(s) 1 x Wi-Fi Antenna(s) 1 x Extension cable for Addressable LED 1 x AAFP Extension Cable 1 x Panel cable 1 x ROG Thank you card |
BIOS | 256 Mb Flash ROM, UEFI AMI BIOS, PnP, WfM2.0, SM BIOS 3.2, ACPI 6.2. |
Manageability | WOL, PXE |
Support Disc | Overwolf
Anti-virus software (OEM version) WinRAR |
Operating System | Windows® 10 64-bit |
Form Factor | Mini ITX Form Factor
6.7 inch x 6.7 inch ( 17 cm x 17 cm ) |
Note | *1 Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel audio.
*2 Use a chassis with HD audio module in the front panel to support an 8-channel audio output. |
