Radeon™ RX 6500 XT EAGLE 4G, 2610 - 2815MHz, 4GB GDDR6, Graphics Card

  • SKU: 14735617
  • Manufacturer: GIGABYTE
  • Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Starting At
Radeon™ RX 6500 XT EAGLE 4G, 2610 - 2815MHz, 4GB GDDR6, Graphics Card


The WINDFORCE 2X cooling system features two unique blade fans, alternate spinning, composite copper heat pipes, copper plate and 3D active fan, which together provide high efficiency heat dissipation.

  • Powered by AMD RDNA™ 2 Radeon™ RX 6500 XT
  • Integrated with 4GB GDDR6 64-bit memory interface
  • WINDFORCE 2X Cooling System with alternate spinning fans
  • Graphene nano lubricant
Graphics Processing Radeon™ RX 6500 XT
Core Clock TBD
Stream Processors 1024
Process Technology 6 nm
Memory Clock 18000 MHz
Memory Size 4 GB
Memory Type GDDR6
Memory Bus 64 bit
Memory Bandwidth (GB/sec) 144 GB/s
Card Bus PCI-E 4.0
Digital max resolution 7680x4320
Multi-view 2
Card size L=192 W=117 H=38 mm
DirectX 12 Ultimate
OpenGL 4.6
Recommended PSU 400W
Power Connectors 6 pin*1

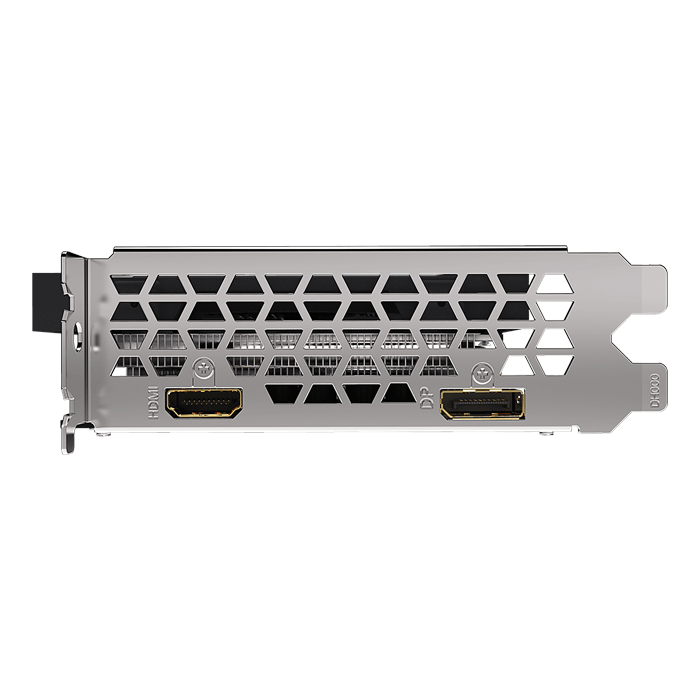

Output DisplayPort 1.4a *1
HDMI 2.1 *1
Accessories Quick guide
Note * “Boost Clock” is the maximum frequency achievable on the GPU running a bursty workload. Boost clock achievability, frequency, and sustainability will vary based on several factors, including but not limited to: thermal conditions and variation in applications and workloads.
* “Game Clock” is the expected GPU clock when running typical gaming applications, set to typical TGP (Total Graphics Power). Actual individual game clock results may vary.
