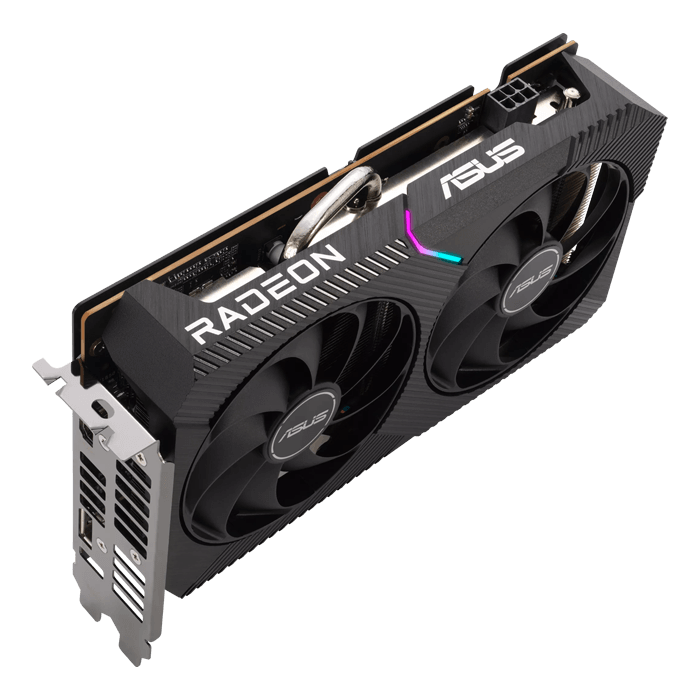

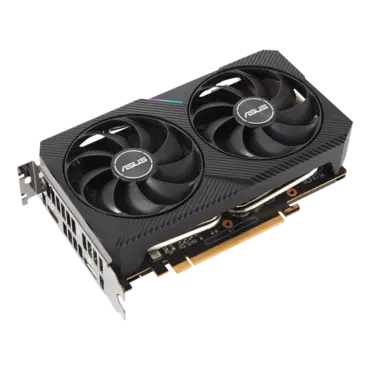

Featuring the latest AMD RDNA™ 2 architecture, ASUS Dual Radeon™ RX 6500 XT fuses dynamic thermal performance with broad compatibility. Advanced cooling solutions from flagship graphics cards — including two Axial-tech fans for maximizing airflow to the heatsink — are packed into the 20 cm long, 2-slot card, delivering more power in less space. These enhancements make ASUS Dual the perfect choice for gamers who want heavyweight graphics performance in a compact build.
|Graphic Engine||Radeon RX 6500 XT|
|Bus Standard||PCI Express 4.0|
|Video Memory||4GB GDDR6|
|Engine Clock||OC mode: up to 2820 MHz(Boost Clock)/ up to 2670 MHz(Game Clock)
Gaming mode: up to 2820 MHz(Boost Clock)/ up to 2650 MHz(Game Clock)
|Resolution||Digital Max Resolution 7680 x 4320|
|Interface||Yes x 1 (Native HDMI 2.1)
Yes x 1 (Native DisplayPort 1.4a)
HDCP Support Yes (2.3)
|Maximum Display Support||2|
|NVlink/ Crossfire Support||Yes|
|Accessories||1 x Collection Card
1 x Speedsetup Manual
|Software||ASUS GPU Tweak II & Drivers: please download all software from the support site.|
|Dimensions||201 x 128 x 40 mm
7.9 x 5.03 x 1.57 inch
|Power Connectors||1 x 6-pin|
|Note||* Our wattage recommendation is based on a fully overclocked GPU and CPU system configuration. For a more tailored suggestion, please use the “Choose By Wattage” feature on our PSU product page: https://rog.asus.com/event/PSU/ASUS-Power-Supply-Units/index.html
* All specifications are subject to change without notice. Please check with your supplier for exact offers. Products may not be available in all markets. If you do not use the latest and current specifications of ASUS products, you shall be liable for all loss and damage claimed by third party to ASUS based on false advertising or any other issues caused from using false specifications of ASUS products.
* Crossfire Support for DirecX® 12 and Vulkan®
* ‘Game Clock’ is the expected GPU clock when running typical gaming applications, set to typical TGP (Total Graphics Power). Actual individual game clock results may vary.
* ‘Boost Clock’ is the maximum frequency achievable on the GPU running a bursty
