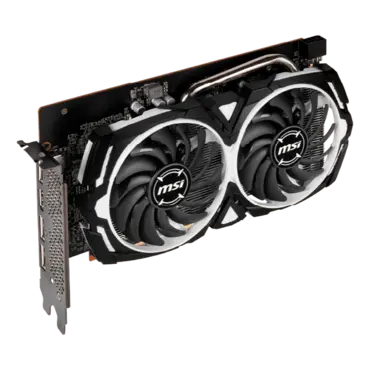

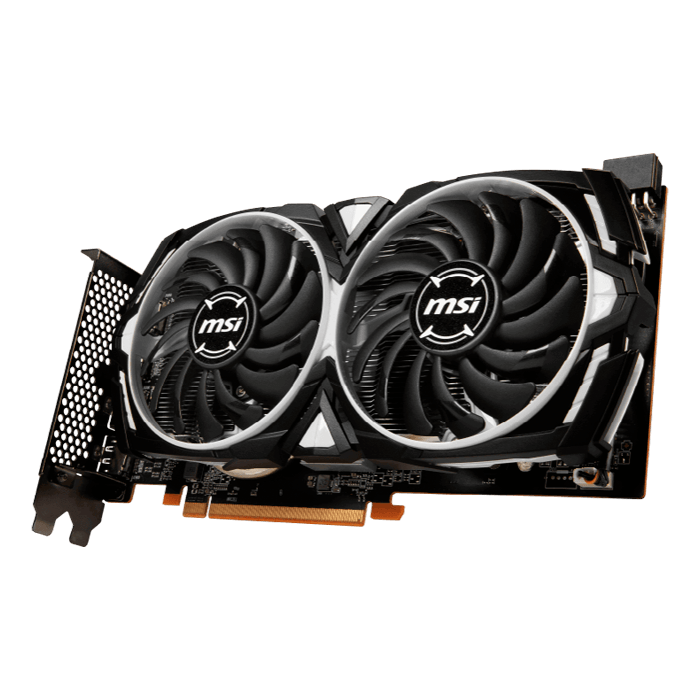

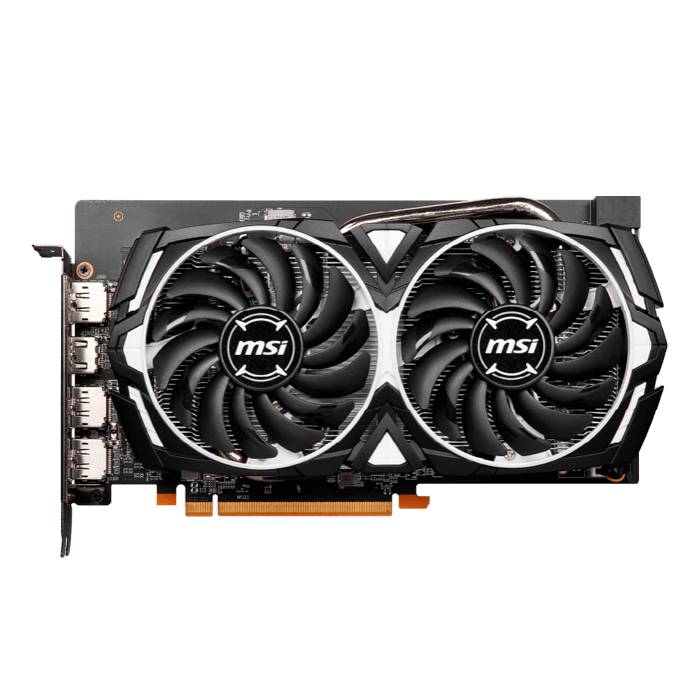

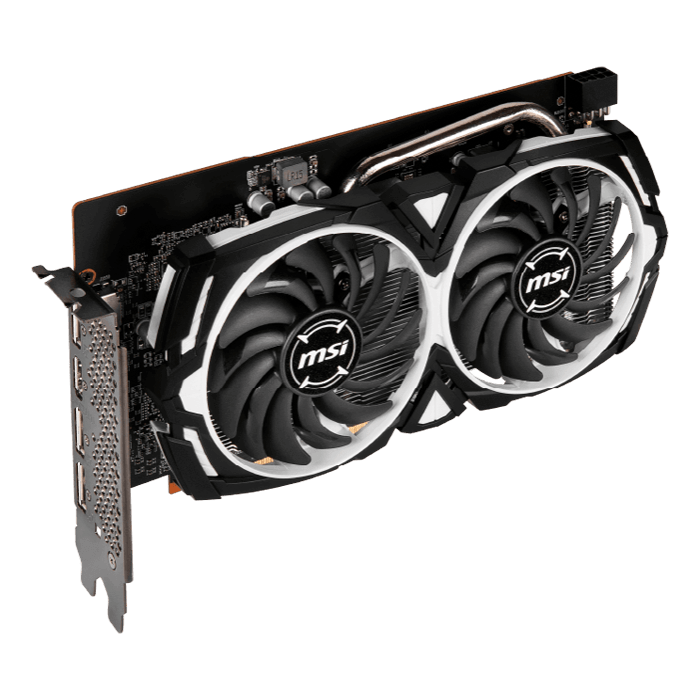

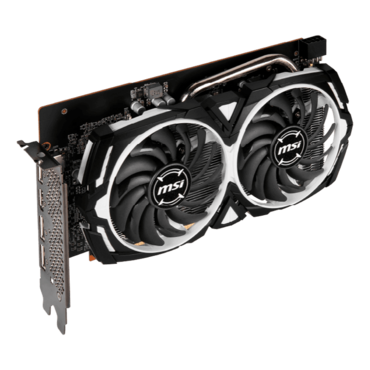

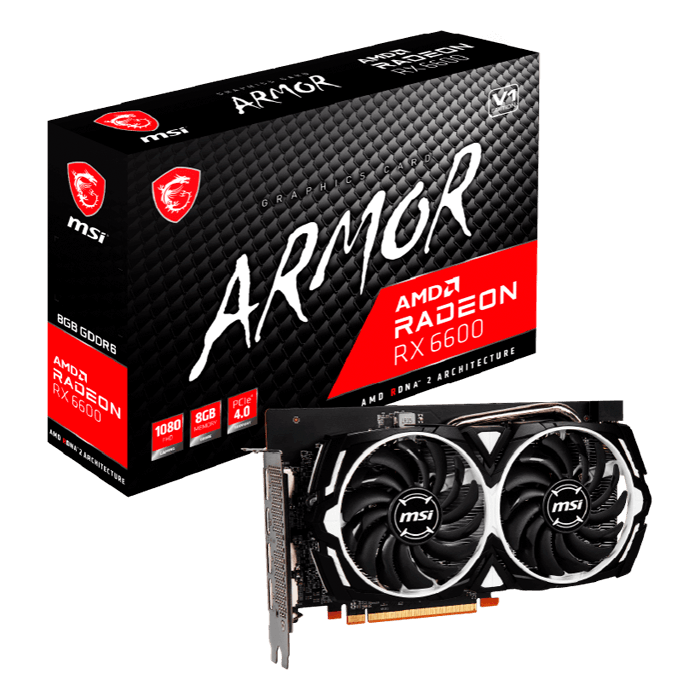

MSI Radeon™ RX 6600 ARMOR 8G V1 (R6600A8V1). Inspired by advanced armor shielding with a classy black & white finish. ARMOR graphics cards are perfect for gamers and case modders who are looking for something different. This is where gaming meets class.
Boost Clock / Memory Speed
Dual Fan Thermal Design
Afterburner Overclocking Utility
MSI Center
MODEL NAME | Radeon™ RX 6600 ARMOR 8G V1 |
GRAPHICS PROCESSING UNIT | AMD Radeon™ RX 6600 |
INTERFACE | PCI Express® 4.0 x8 |
CUDA® CORES | 1792 Units |
CORE CLOCKS |
Boost: Up to 2491 MHz Game: Up to 2044 MHz |
MEMORY SPEED | 14 Gbps |
MEMORY | 8GB GDDR6 |
MEMORY BUS | 128-bit |
OUTPUT |

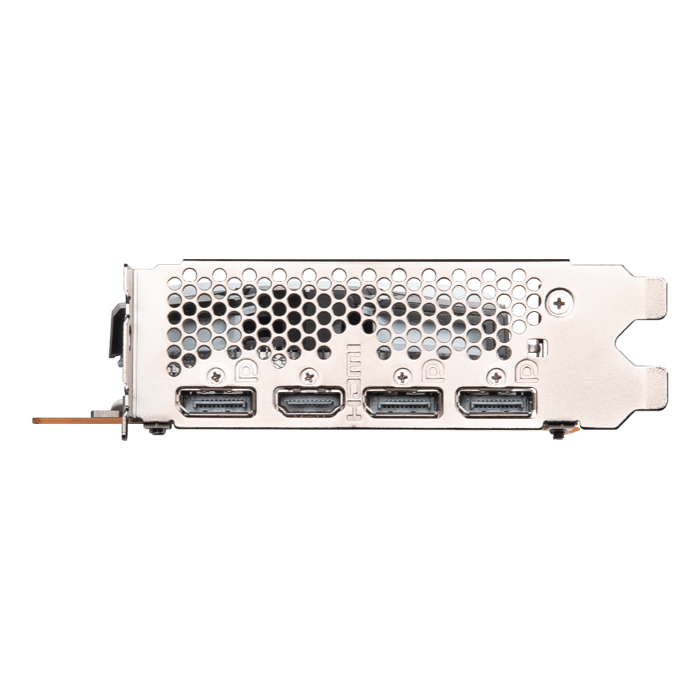

DisplayPort x 3 (v1.4) HDMI x 1 (Supports 4K@120Hz/8K@60Hz and VRR as specified in HDMI 2.1) |
HDCP SUPPORT | Y |
POWER CONSUMPTION | 132 W |
POWER CONNECTORS | 8-pin x 1 |
RECOMMENDED PSU | 500 W or greater |
CARD DIMENSION (MM) | 238 x 128 x 39 mm |
WEIGHT (CARD / PACKAGE) | 621 g / 1105 g |
DIRECTX VERSION SUPPORT | 12 API |
OPENGL VERSION SUPPORT | 4.6 |
MULTI-GPU TECHNOLOGY | Y |
AFTERBURNER OC | Y |
MAXIMUM DISPLAYS | 4 |
VR READY | Y |
DIGITAL MAXIMUM RESOLUTION | 7680 x 4320 |
