Radeon™ RX 6600 XT PULSE, 1968 - 2589MHz, 8GB GDDR6, Graphics Card

Quantity:
  • SKU: 14577345
  • Manufacturer: SAPPHIRE
  • MPN: 11309-03-20G
  • Availability: TEMPORARILY OUT OF STOCK
Starting At
$427.96
Quantity:

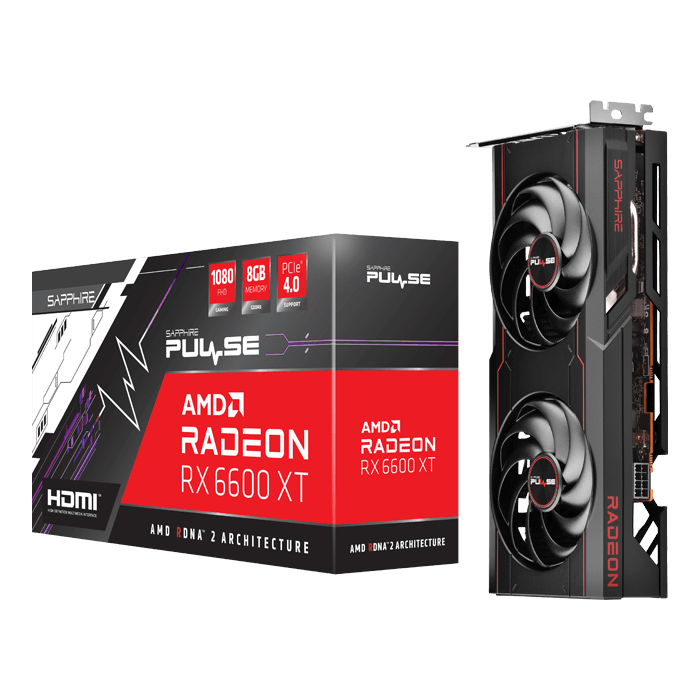

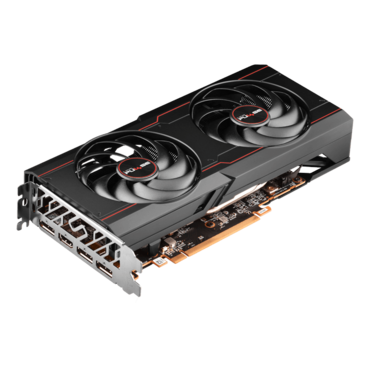

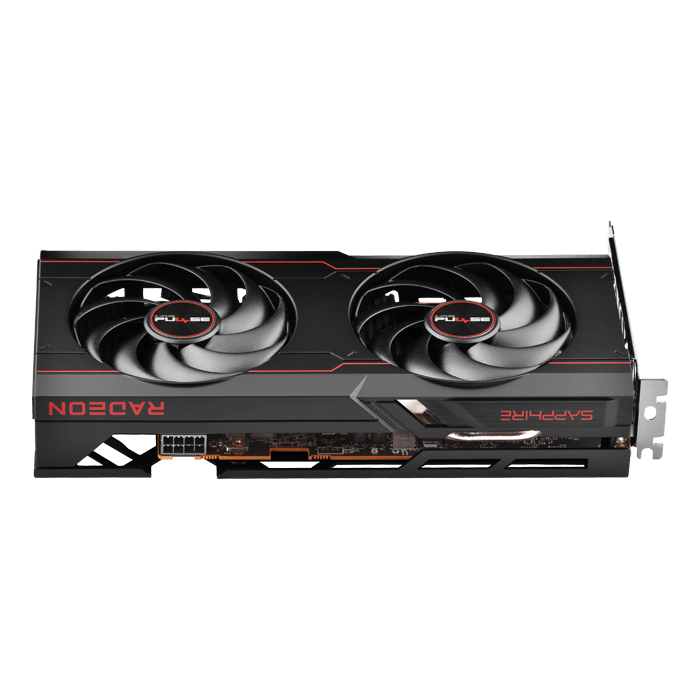

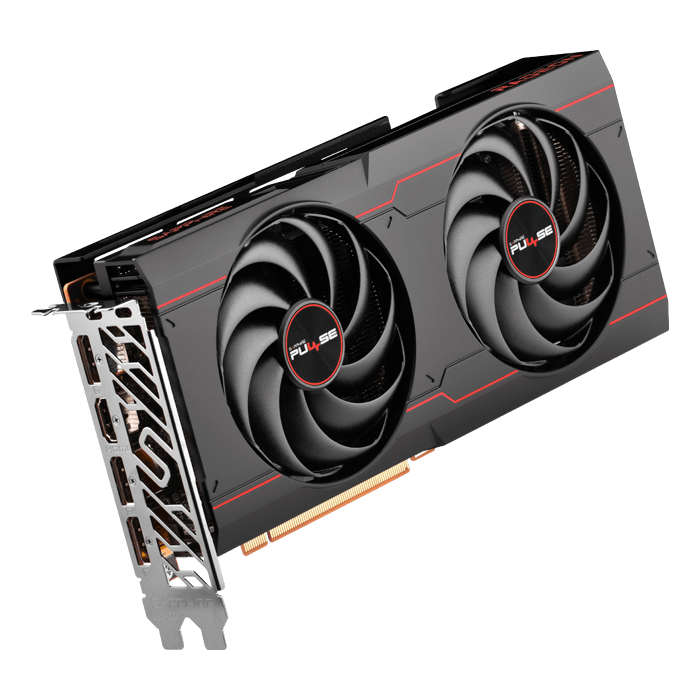

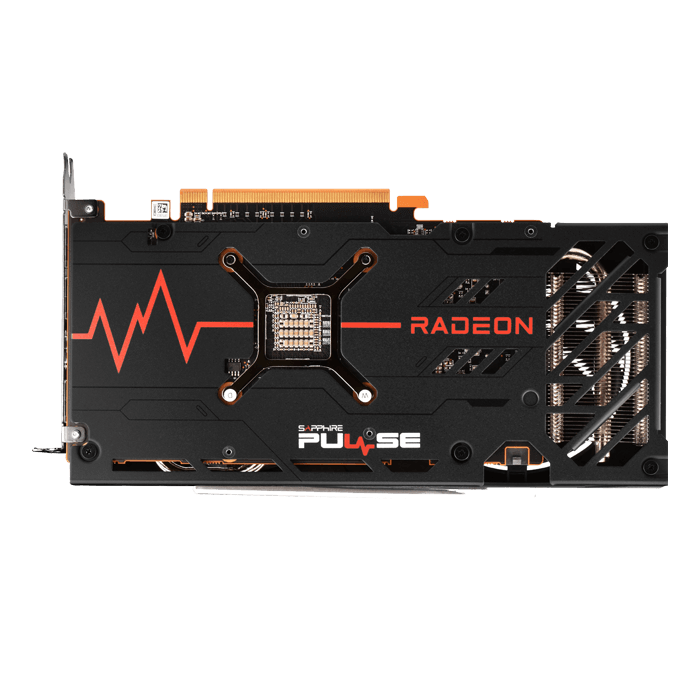

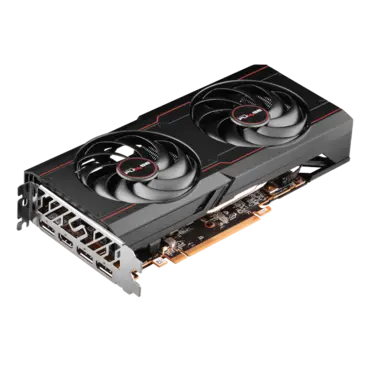

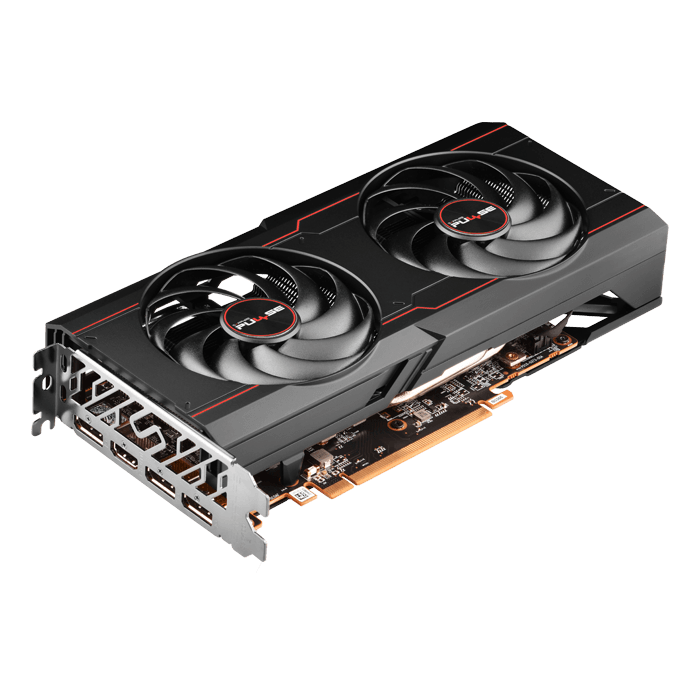

Radeon™ RX 6600 XT PULSE, 1968 - 2589MHz, 8GB GDDR6, Graphics Card

SAPPHIRE Radeon™ RX 6600 XT PULSE (11309-03-20G). The SAPPHIRE PULSE AMD Radeon™ RX 6600 XT Graphics Card runs on the powerful Dual-X Cooling Technology coupled with Intelligent Fan Control to keep temperatures low and fan noise low. The refined PCB design delivers stable, reliable, and steady performance, which efficiently lowers PCB temperature and component signal noise.

  • AMD RDNA™ 2 Gaming Architecture
  • DirectX® 12 Ultimate
  • AMD Smart Access Memory
  • AMD Infinity Cache
  • 7nm GPU
GPU AMD Radeon™ RX 6600 XT Graphics Card
7nm GPU
AMD RDNA™ 2 Architecture
Stream Processors 2048
Infinity Cache 32MB
Ray Accelerators 32
Memory Size/Bus 8GB GDDR6
Displays Maximum 4 Displays
Resolution
  • HDMI™: 7680×4320
  • DisplayPort1.4: 7680×4320
Interface

PCI-Express 4.0

Output
  • 1x HDMI
  • 3x DisplayPort
BIOS Support
  • UEFI
Game Index

1080P

Sapphire Features
  • Premium Digital Power Design

  • Fuse Protection

  • Dual-X Cooling Technology

  • Intelligent Fan Control

  • Precision Fan Control

  • Metal Backplate

  • Two-Ball Bearing Fans

  • TriXX Supported

  • TriXX Boost

AMD Features
  • AMD RDNA™ 2 Gaming Architecture
  • DirectX® 12 Ultimate
  • Hardware Raytracing
  • Smart Access Memory
  • Infinity Cache
  • 7nm GPU
  • PCI® Express 4.0 Support
  • AMD FreeSync™ Technology
  • DisplayPort™ 1.4 with DSC
  • HDMI™
  • Video Streaming up to 8K
  • Radeon™ VR Ready Premium
  • AMD FidelityFX
  • Radeon™ Image Sharpening
  • Radeon™ Anti-Lag
  • Radeon™ Software
  • Game Driver Optimizations
Cooling

Dual Fans

Form Factor 2.2 slot, ATX
Dimension: 240(L)X 119.85(W)X 44.75(H)mm
OS

Linux®, Windows® 7*, Windows® 10, and Windows 8.1. 64-bit operating system required

*Does not support all features including but not limited to Hardware Raytracing

System Requirement
  • Minimum 500 Watt Power Supply
  • 1 x 8-pin Power Connector.
  • PCI Express® based PC is required with one X16 lane graphics slot available on the motherboard.
  • Minimum 8GB of system memory. 16GB recommended.
