The Radeon™ RX 6000 Series graphics cards can take on the most demanding titles at maximum settings with all the latest features enabled. With up to 80 powerful graphics compute units, coupled with up to 16GB of high-speed GDDR6 memory, and up to 128MB of low-latency AMD Infinity Cache™, these cards redefine enthusiast level performance.

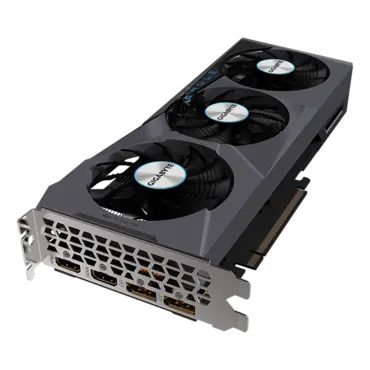

|Graphics Processing||Radeon™ RX 6650 XT|
|Core Clock||Boost Clock* : up to 2635 MHz
Game Clock* : up to 2410 MHz
|Memory Clock||17500 MHz|
|Memory Size||8 GB|
|Memory Bus||128 bit|
|Memory Bandwidth (GB/sec)||280 GB/s|
|Card Bus||PCI-E 4.0|
|Digital max resolution||7680x4320|
|Card size||L=282 W=113 H=41 mm|

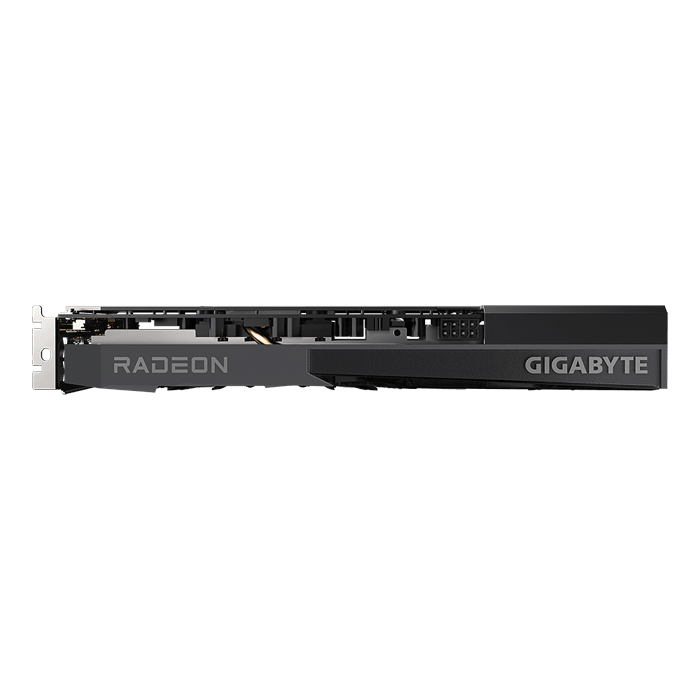

|Power Connectors||8 pin*1|

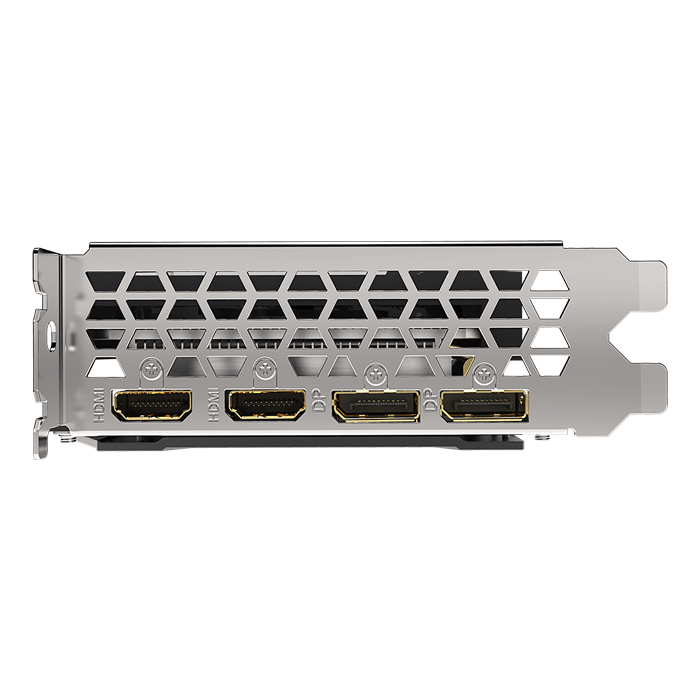

|Output||DisplayPort 1.4a *2
HDMI 2.1 *2
|Note||* “Boost Clock” is the maximum frequency achievable on the GPU running a bursty workload. Boost clock achievability, frequency, and sustainability will vary based on several factors, including but not limited to: thermal conditions and variation in applications and workloads.
* “Game Clock” is the expected GPU clock when running typical gaming applications, set to typical TGP (Total Graphics Power). Actual individual game clock results may vary.
