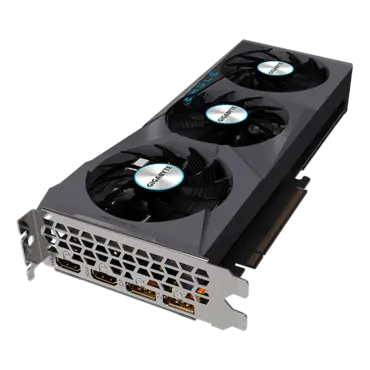

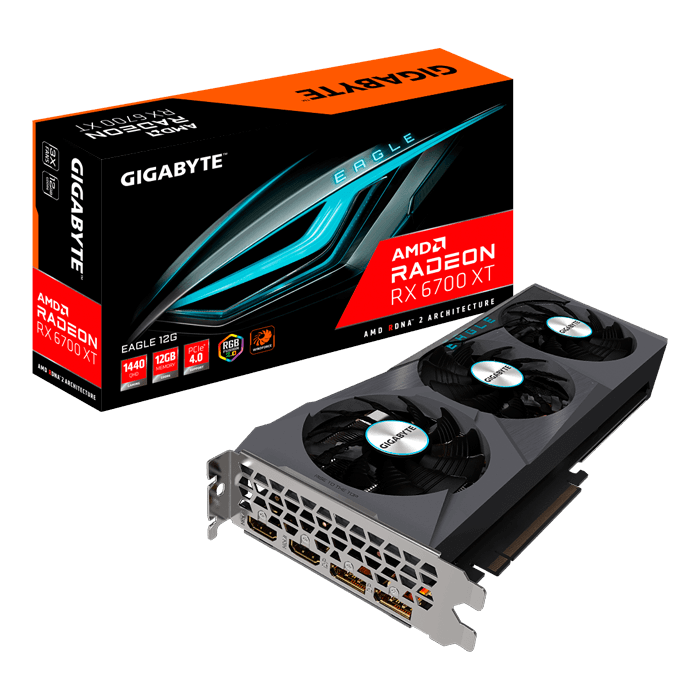

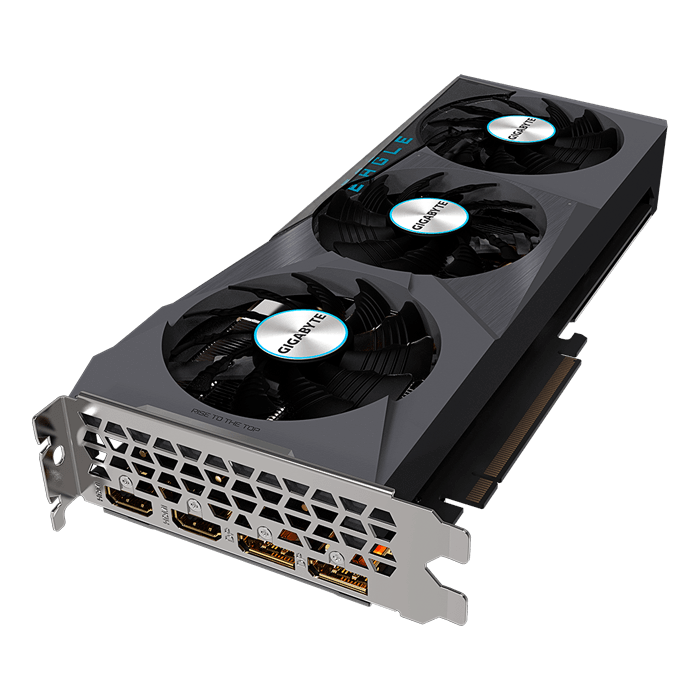

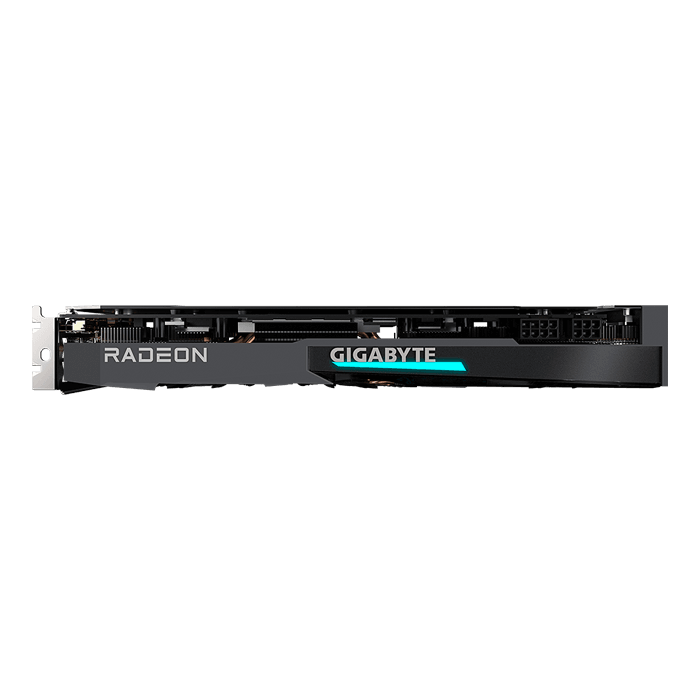

Radeon™ RX 6700 XT EAGLE 12G, 2424 - 2581MHz, 12GB, GDDR6, Graphics Card
GIGABYTE Radeon™ RX 6700 XT EAGLE 12G (GV-R67XTEAGLE-12GD). WINDFORCE 3X COOLING SYSTEM. The WINDFORCE 3X cooling system features 3x80mm unique blade fans, alternate spinning, 3 composite copper heat pipes direct touch GPU, 3D active fan and Screen cooling, which together provide high efficiency heat dissipation.
- Powered by AMD RDNA™ 2 Radeon™ RX 6700 XT
- Integrated with 12GB GDDR6 192-bit memory interface

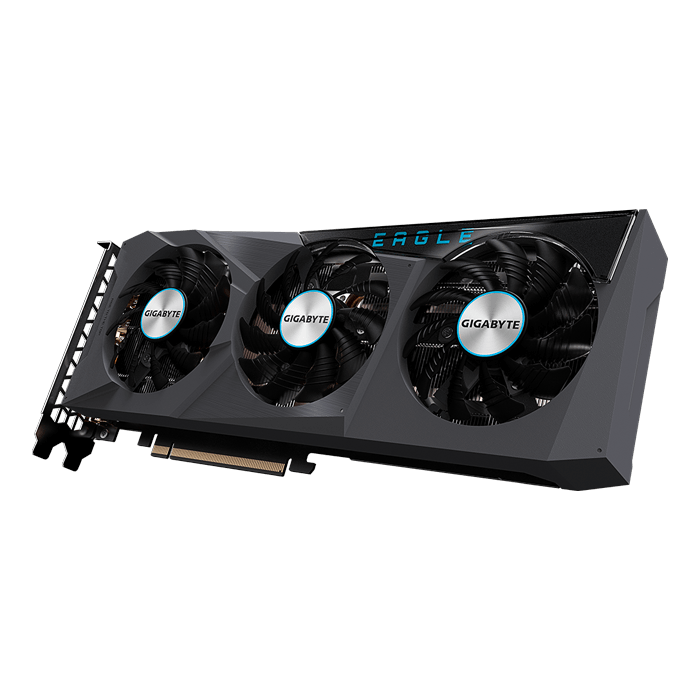

- WINDFORCE 3X Cooling System with alternate spinning fans
- Screen cooling
- Graphene nano lubricant
- RGB Fusion 2.0

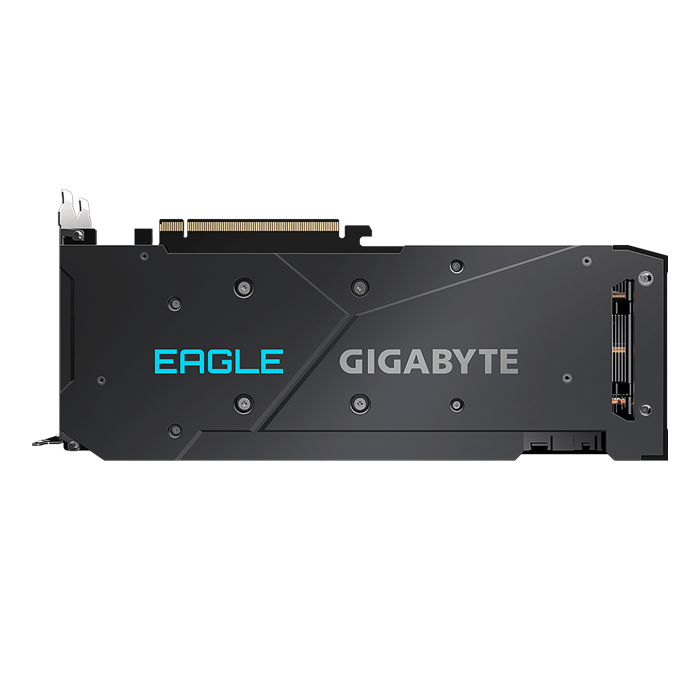

- Protection metal back plate
Graphics Processing | Radeon™ RX 6700 XT |
Core Clock | Boost Clock : up to 2581 MHz Game Clock* : up to 2424 MHz |
Stream Processors | 2560 |
Process Technology | 7 nm |
Memory Clock | 16000 MHz |
Memory Size | 12 GB |
Memory Type | GDDR6 |
Memory Bus | 192 bit |
Memory Bandwidth (GB/sec) | 384 GB/s |
Card Bus | PCI-E 4.0 x 16 |
Digital max resolution | 7680x4320 |
Multi-view | 4 |
Card size | L=282 W=113 H=40 mm |
PCB Form | ATX |
DirectX | 12 Ultimate |
OpenGL | 4.6 |
Recommended PSU | 650W |
Power Connectors | 8 pin*1 + 6 pin*1 |
Output |
DisplayPort 1.4a *2 HDMI 2.1 *2 |
Accessories | Quick guide |
Note | *: “Game Clock” is the expected GPU clock when running typical gaming applications, set to typical TGP (Total Graphics Power). Actual individual game clock results may vary. |
