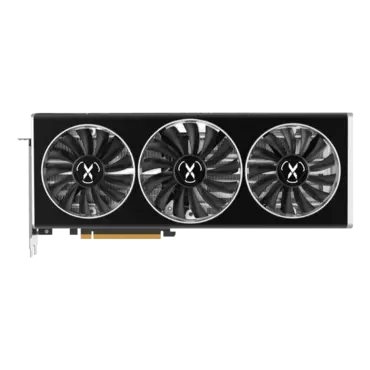

Radeon™ RX 6750 XT SPEEDSTER MERC 319 BLACK Gaming, 2324 - 2623MHz, 12GB GDDR6, Graphics Card

Quantity:
  • SKU: 14947024
  • Manufacturer: XFX
  • MPN: RX-675XYTBDP
  • Availability: TEMPORARILY OUT OF STOCK
Starting At
$418.63
Quantity:
Manufacturer

Manufacturer: XFX
Model Number
: RX-675XYTBDP
Product Name: AMD Radeon™ RX 6750 XT
Product Description: XFX SPEEDSTER MERC 319 AMD Radeon™ RX 6750 XT BLACK Gaming Graphics Card with 12GB GDDR6 HDMI 3xDP, AMD RDNA™ 2
Short Description :
XFX SPEEDSTER MERC 319 AMD Radeon™ RX 6750 XT BLACK Gaming Graphics Card with 12GB GDDR6, AMD RDNA™ 2
Launch Date: May, 2022
UPC Number: 840191500367

Specifications

Bus Type: PCI-E 4.0


Clock Speeds:
Base clock Up to:
2324MHz
Game Clock Up To:
2554MHz*
Boost clock Up to:
2623MHz**


Stream Processors:
2560
Memory Bus:
192bit
Memory Clock:
18 Gbps
Memory Size:
12 GB
Memory Type:
GDDR6
Card Profile:
2.6 Slot
Thermal Solution:
3 Fan


*"Game Clock" is the expected GPU clock when running in typical gaming applications, set to typical TGP (Total Graphics Power). Actual individual game clock results may vary.

**"Boost Clock" is the maximum frequency achievable on the GPU running a bursty workload. Boost clock achievability, frequency, and sustainability will vary based on several factors, including but not limited to: thermal conditions and variation in applications and workloads.

Outputs

DisplayPort: 1.4 with DSC
HDMI™:
 2.1 VRR and FRL
Output :
 Display Port 3
Output:
 HDMI 1

Requirements

External Power: 2x PCI-E 8pin
Minimum Power Supply Requirement:
 650 watt
XFX Recommended Power Supply:
XFX 750W PSU

Certifications

RoHS

Package Contents

Quick Installation Guide: 1

Estimated Dimensions & Weights

Card Dimension (cm) 32.3 x 13.2 x 5.1
Card Dimension (inch)
12.72 x 5.20 x 2.01
Master Carton Dimensions (cm)
53 x 45 x 46
Master Carton Dimensions (inch)
20.87 x 17.72 x 18.11
Master Carton Weight (Kg)
16.6 est
Master Carton Weight (lb)
36.60 est
Package Dimensions (cm)
42.7 x 21.4 x 12.6
Package Dimensions (inch)
16.8 x 8.43 x 4.96
Package Weight (Kg)
1.83 est
Package Weight (lb)
4.03 est
Units/Carton
8

Technologies

AMD RDNA™ 2 Architecture
DirectX® 12 Ultimate
Hardware Raytracing
FidelityFX™
Radeon™ Anti-Lag
Microsoft® Windows® 10 Support
Microsoft® DirectX™ 12 Support
7nm Technology
GDDR6 Memory
PCI® Express 4.0 Support
AMD FreeSync™ Technology*
DisplayPort™ 1.4 with DSC
HDMI™ 2.1 VRR
Video Streaming up to 8K
AMD FidelityFX*
Radeon™ Image Sharpening*
Radeon™ Anti-Lag*
AMD Software: Adrenalin Edition
Game Driver Optimizations
OpenGL Support
OpenCL Support

* Not compatible with Windows 7. For more information on Radeon™ technologies, visit: AMD.com/gamingdetails

Key Features

Advanced 7nm GPU
PCI Express 4.0 Support
Radeon™ Image Sharpening
FidelityFX™
Radeon™ Anti-Lag
Microsoft® Windows® 10 Support
Microsoft® DirectX™ 12 Support
7nm Technology
AMD Virtual Super Resolution (VSR)
AMD Software Media Recording andStreaming
AMD FreeSync™ 2 HDR
AMD Frame Rate Target Control (FRTC)
AMD Eyefinity™ multi-display technology
AMD Software Performance Tuning
Displayport 1.4 w/ DSC
Dolby TrueHD and DTS-HD Master Audio Support
OpenGL Support
OpenCL Support
