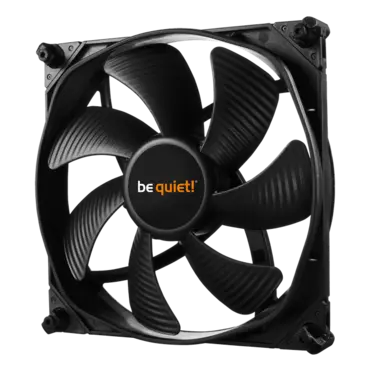

SILENT WINGS 3 140mm PWM, 1000 RPM, 59.5 CFM, 15.5 dBA, Cooling Fan

SKU: 11553249

Manufacturer: Be Quiet!

MPN: BL067

Availability: Available


Price: $23.44
or as low as $2/month
Quantity:
  • Virtually inaudible operation at max. 15.5dB(A)
  • 6-pole fan motor for less power consumption and vibration
  • Fluid-dynamic bearing enables super-long life span of 300,000h
  • Fan frame with funnel-shaped air inlets for extremely high air pressure
  • Seven fan blades offer an optimized airflow
  • PWM controlled fan speed by the motherboard
  • German product conception, design and quality control
  • Three years manufacturer’s warranty
  • Specifications

    • Mfr Part Number: BL067
    • Features:
      • Virtually inaudible operation at max. 15.5dB(A)
      • 6-pole fan motor with three phases giving very low power consumption and less vibration
      • Advanced fluid-dynamic bearing (FDB) enables a super long fan life of up to 300,000 hours
      • Seven fan blades with optimized surface structures ensure excellent airflow
      • The rubberized fan frame is equipped with funnel-shaped air inlets producing extremely high air pressure
      • Removable anti-vibration mountings minimize the transmission of vibrations to the PC case and its components
      • Advanced high quality IC motor controller reduces electrical noise
      • Pulse width modulation (PWM) allows compatible 4-pin controllers (including those built into many motherboards) to intelligently vary the speed of the fan
      • With PWM your system can ramp up the cooling when it's needed, or operate in maximum quiet mode when it's not
    • Fan Speed: 1000 RPM
    • Air Flow: 59.5 CFM / 101.09 m3/h
    • Air Pressure: 1.08 mmH2O
    • Noise Level: 15.5 dBA
    • Voltage: Rated - 12 VDC, Operating - 4 ~ 13.2 VDC
    • Current: 0.06 A (consumption), 0.3 A (safety)
    • Input Power: 0.72 W
    • Bearing: Fluid Dynamic Bearings (FDB)
    • Motor: 6-pole Fan Motor
    • Connector: 4 Pin PWM
    • Cable Length: 500 mm
    • Life: 300,000 hours
    • Approvals: CE, RoHS, WEEE, RU, Tuv
    • Dimensions: 140.0 x 140.0 x 25.0 mm
    • Weight: 0.167 kg
