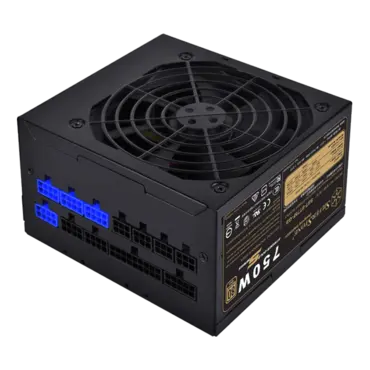

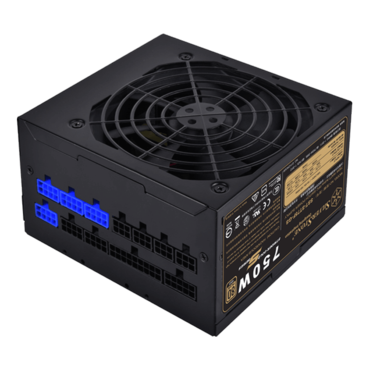

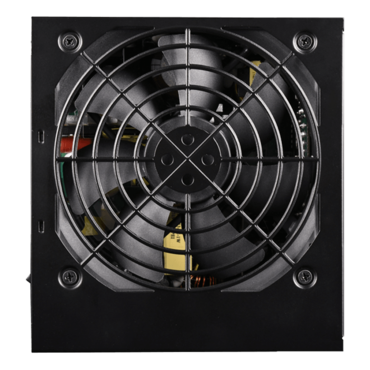

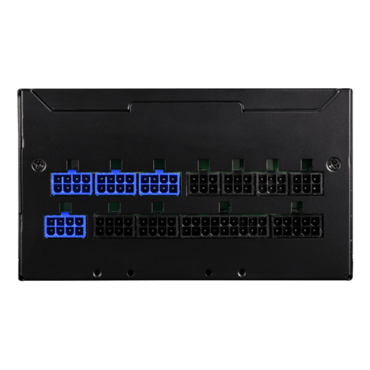

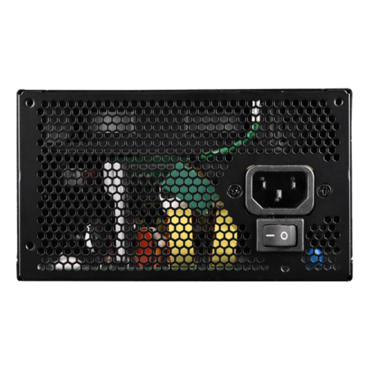

ST75F-GS (V3.0), 80 PLUS Gold 750W, Fully Modular, ATX Power Supply
ST75F-GS (V3.0), 80 PLUS Gold 750W, Fully Modular, ATX Power Supply
ST75F-GS (V3.0), 80 PLUS Gold 750W, Fully Modular, ATX Power Supply
ST75F-GS (V3.0), 80 PLUS Gold 750W, Fully Modular, ATX Power Supply
ST75F-GS (V3.0), 80 PLUS Gold 750W, Fully Modular, ATX Power Supply

ST75F-GS (V3.0), 80 PLUS Gold 750W, Fully Modular, ATX Power Supply

  • SKU: 13352841
  • Manufacturer: SILVERSTONE
  • MPN: ST75F-GS-V3
  • Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Price
$133.39
Quantity:
  • Compact design with a depth of 140mm for easy integration
  • 80 PLUS Gold certification
  • 100% modular cables
  • 24/7 continuous power output with 40? operating temperature
  • Class-leading single +12V rail
  • Strict ±3% voltage regulation and low ripple & noise
  • Silent running 120mm fan with 18dBA minimum

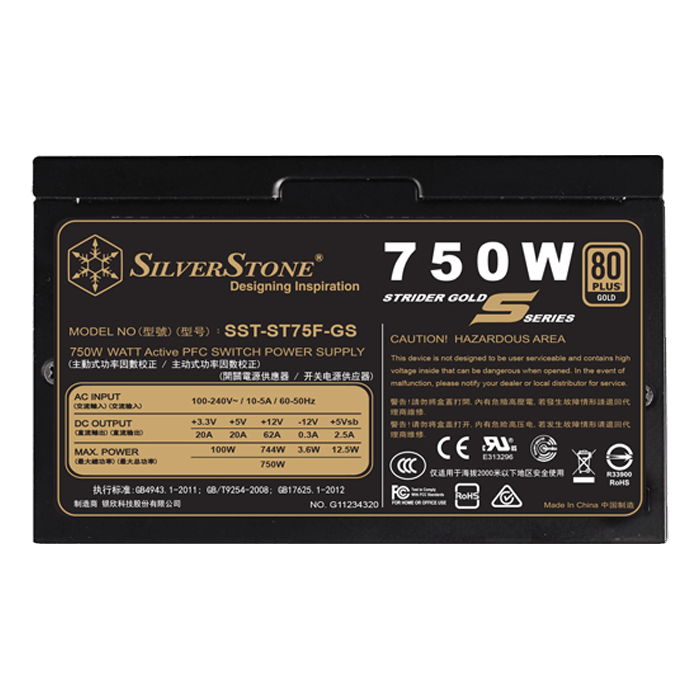

Model No. SST-ST75F-GS (V3.0)
Max. DC Output 750W
Load Range
  +3.3V +5V +12V +5VSB -12V
Max.(Amps) 20A 20A 62A 2.5A 0.3A
Min.(Amps) 0A 0A 0A 0A 0A
Range (%) ±3% ±3% ±3% ±5% ±10%
Line Reg.(%) ±1% ±1% ±1% ±1% ±1%
Ripple(mVp-p) 50mV 50mV 120mV 50mV 120mV
Power density 415W per liter
Color Black (lead-free paint)
Combined +3.3V & +5V 100W
Combined +12V 744W

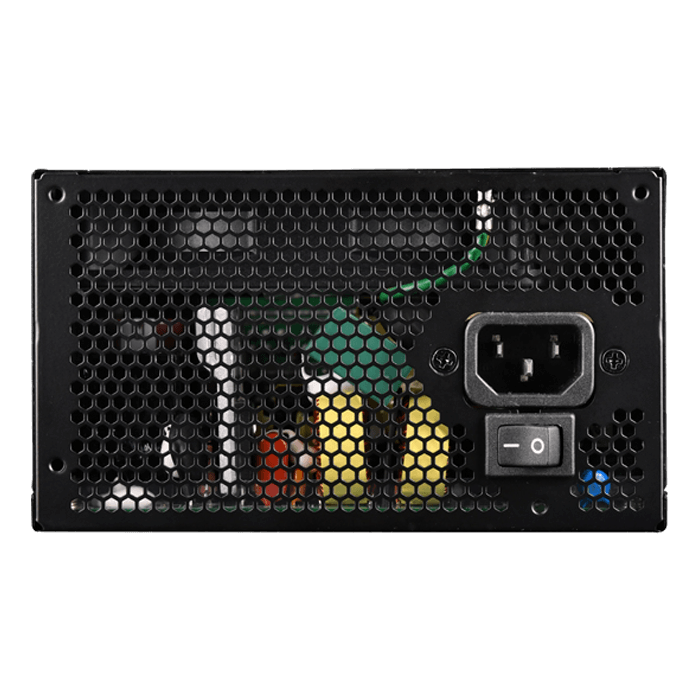

Input Voltage 90V~264V
Input Frequency Range 47Hz ~ 63Hz
PFC Active PFC.(PF>0.9 at Full Load)
Efficiency 87%~90% at 20%~100% loading
MTBF 100,000 hours
Operating temperature 0°C ~ 40°C
Protection Over power protection
Over current protection
Over voltage protection
Over temperature protection
Under voltage protection
Short circuit protection

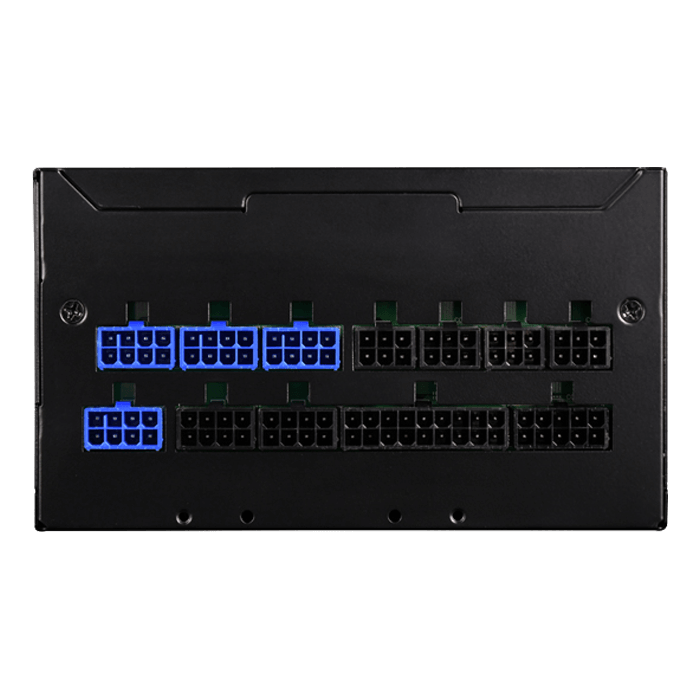

Connectors 1 x 24 / 20-Pin motherboard connector(600mm)
1 x 8 / 4-Pin EPS / ATX 12V connector(550mm)
1 x 8 / 4-Pin EPS / ATX 12V connector(750mm)
4 x 8/6-Pin PCIE connector("550mm")
8 x SATA connector("600mm /150mm / 150mm / 150mm" x 2)
6 x 4-Pin Peripheral connector(”600mm / 150mm / 150mm” x 2)
2 x 4-Pin Floppy connector(150mm)

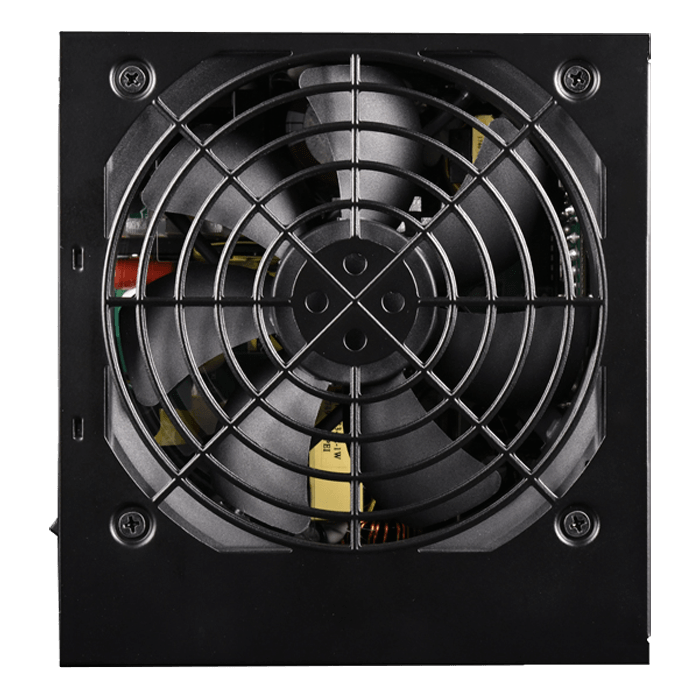

Cooling System Single 120mm silent fan
Form factor ATX
Noise Level 18 dBA minimum
Dimension 150 mm (W) x 86 mm (H) x 140 mm (D)
5.91" (W) x 3.39" (H) x 5.51" (D)
Weight 1.31 kg
Certification 80 PLUS Gold
Other GPU Support list
Compatible with ATX12V v2.4
