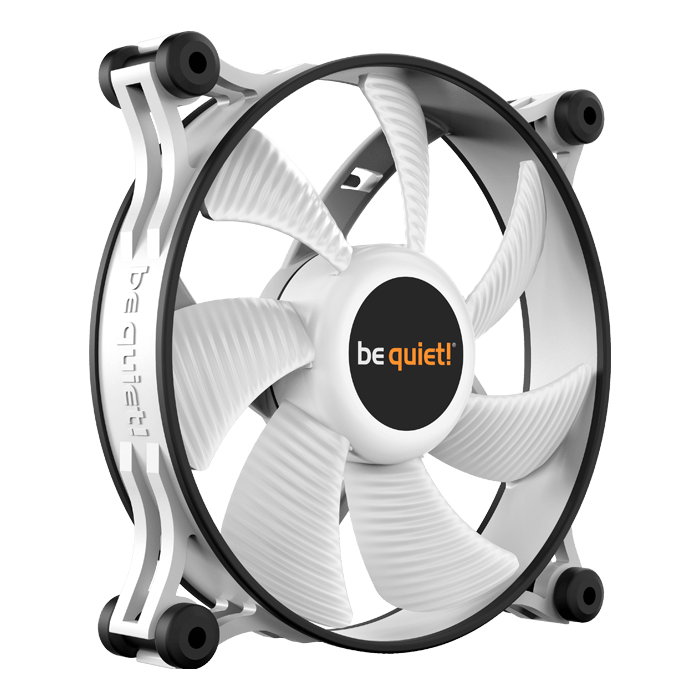

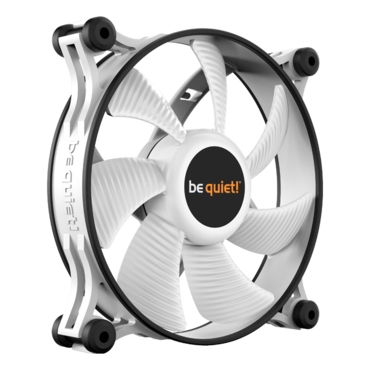

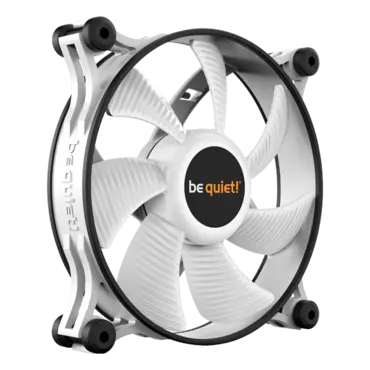

Shadow Wings 2 120mm PWM White, 1100 RPM, 65 CFM, 15.9 dBA, Cooling Fan

SKU: 13021298

Manufacturer: be quiet!

MPN: BL089

Availability: Available


Price: $19.90
or as low as $1/month
Quantity:
  • Low-noise operation of up to 15.9dB(A)
  • Airflow-optimized fan blades
  • Anti-vibration mounting system prevents transmission of vibrations
  • Rubberized fan frame minimizes vibrations
  • High-grade rifle-bearing technology
  • Secure and easy installation with push-pins
  • PWM controlled fan speed through the motherboard
  • Product conception, design and quality control in Germany
  • 3-year manufacturer’s warranty

General data

Model Shadow Wings 2 120mm PWM White
Dimensions (mm) 120
+SilentWings -
Fan speed @ 100% PWM / 12V (rpm) 1100
Air Flow @ 100% PWM / 12V (CFM / m3/h) 38.5 / 65
Air Pressure @ 100% PWM / 12V (mm H2O) 0.82
Noise level @ 100% PWM / 12V (dB(A)) 15.9
Color option White

Mechanical specifications

Dimensions (L x W x H), (mm) 120 x 120 x 25
Bearing technology Rifle
Motor technology 4-pole fan motor
Weight incl. fixed cables (kg) 0.132
Push pin fixing
Screw fixing -

Cables / Connectors

Connector 4-Pin PWM
Cable length (mm) 500
Cable sleeve -

Performance / Noise

Air Flow @ 100% PWM / 12V (CFM / m3/h) 38.5 / 65
Air Pressure @ 100% PWM / 12V (mm H2O) 0.82
Noise level @ 100% PWM / 12V (dB(A)) 15.9
Lifespan (h / 25°C) 80000

Electrical specifications

Rated Voltage DC (V) 12
Operating Voltage DC (V) 6 - 12
Current consumption (A) 0.12
Safety current (A) 0.12
Input power (W) 1.44

Accessories

3-pin to 4-pin 12V-connector -
12V to 7V adapter -
12V to 5V adapter -
Screws -
Push pins 4
Silica gel washer 4
Others -

Safety certification

Approvals CE, TÜV, UL

Service

Warranty (Years) 3
International hotline / free of charge ✓ / DE, FR

Logistics data, RRP

Article number BL089
EAN code 4260052187333
Dimensions, package (L x W x H), (mm) 155 x 120 x 28
Gross weight, package (kg) 0.156
Pieces per packaging unit 60
Dimensions, shipping box (L x W x H), (mm) 410 x 320 x 290
Gross weight, shipping box (kg) 10.69
