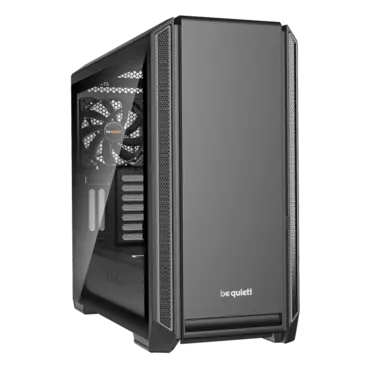

Silent Base 601 Tempered Glass, No PSU, E-ATX, Black/Silver, Mid Tower Case

Quantity:
  • SKU: 12328920
  • Manufacturer: be quiet!
  • MPN: BGW27
  • Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Starting At
$230.62
Quantity:
General data
Model Silent Base 601 Window | Silver
PSU form factor ATX PS/2
Motherboard compatibility E-ATX, ATX, M-ATX, Mini-ITX
Case size excl. stands (L x W x H), (mm) 532 x 240 x 481
Installation of motherboards with backplate
Case size incl. stands (L x W x H), (mm) 532 x 240 x 514
Dimensions side panel window (L x W), (mm) 440 x 498
Color option Silver
Weight (kg) 11.22
USB 2.0 1
USB 3.0 2
USB 3.1 Gen 2 Type C -
HD Audio I/O 1
Expansion slots 7+2
Fan mounting locations Front, Rear, Top, PSU Shroud
Qi charger / Quick Charging Option -
Material
Top cover ABS, Steel
Side panel -
Side panel window 4mm tempered glass, Steel
Front panel ABS, Steel
Stands ABS
Drive bay capacity
5.25 bays -
3.5 slots (max.) 7
3.5 slots (scope of delivery) 3
2.5 slots (max.) 14
2.5 slots (scope of delivery) 6
Pre-installed fans
Fan @ front 1x be quiet! Pure Wings 2 |140mm
Fan @ rear 1x be quiet! Pure Wings 2 |140mm
Dimensions (L x W x H), (mm) Front: 140 x 140 x 25, Rear: 140 x 140 x 25
Fan speed @ 12V (rpm) 1,000
Noise level @ 12V (dB(A)) 18.8
Airflow @ 12V (cfm / m3/h) 61.2 / 104
Air pressure @ 12V (mm H2O) 0.76
Voltage range (V DC) 5-12
Input power (W) 1.44
Input current (A) 0.12
Connector 3-pin
Lifespan (h / 25°C) 80,000
Fan controller 3-step fan controller (3x 3-pin)
Optional fan installation
Front (mm) 2x 140/120
Top (mm) 3x 140/120
Bottom (mm) -
Side panel (mm) -
PSU shroud 1x 140/120
Optional radiator installation
Front (mm) 120 / 140 / 240 / 280 / 360
Top (mm) 120 / 240 / 360
Bottom (mm) -
Rear (mm) 120 / 140
Cooling
Max.construction height of CPU cooler unit (mm) 185
Airflow channel Front, Top, Rear
Lighting
RGB LED illumination -
LEDs synchronizable with RGB controller/motherboard -
Expandable RGB controller -
PSU compatibility
Maximum dimensions excl. bottom fan (mm) 288
Maximum dimensions incl. bottom fan (mm) 288
Graphics card
HDD cage (in height of graphics card) installed (mm) 287
HDD cage (in height of graphics card) removed (mm) 449
Insulation and damping
Top panel insulation mats
Front panel insulation mats
Side panel insulation mats
Anti-vibration decoupled HDD
Anti-vibration decoupled fan
Anti-vibration decoupled PSU
Anti-vibration decoupled motherboard-tray
Removeable dust filters
Front 1
Bottom 1
Side panel 0
Accessories
Screw set (Drives/Motherboard)
Rubber rail (pcs.) -
Standoff (pcs.) 1 (for E-ATX)
LCS bracket (pcs). 0
HDD slot cover (pcs.) 0
Upper fan bracket (pcs.) 0
HDD panel rubber grommet (pcs.) -
SSD bracket for PSU shroud 0
LED strips (pcs.) -
Cable ties (pcs.) 6 (Velcro)
Cable tie holder (pcs.) -
Service
Warranty (Years) 3
International hotline / free of charge ✔ / DE, FR
Logistics data, RRP
Article number BGW27
EAN code 4260052187043
Certifications CE, RoHS
Dimensions, package (L x W x H), (mm) 566 x 325 x 615
Gross weight, package (kg) 13,23
Pieces per packaging unit 1
