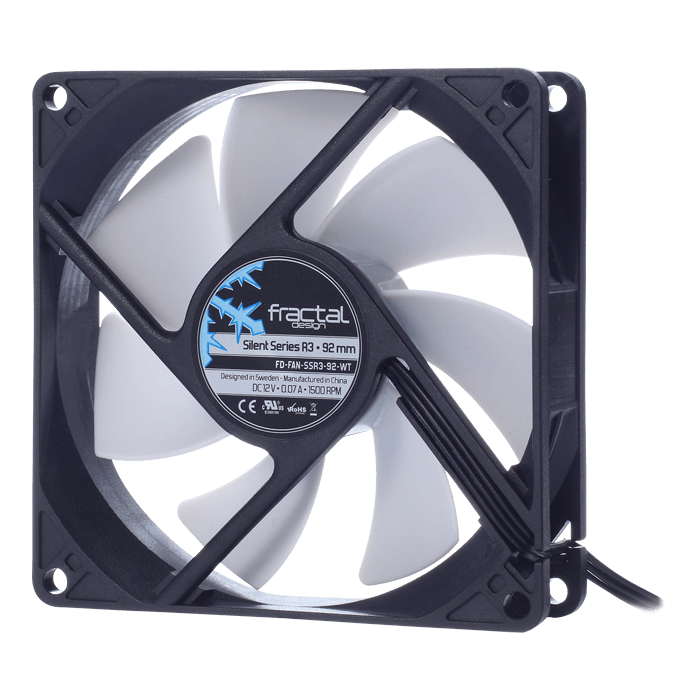

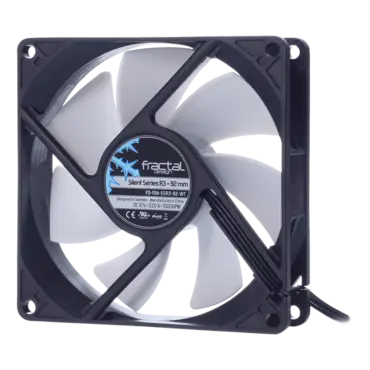

Silent Series R3 92 mm, 1500 RPM, 24.4 CFM, 18.3 dBA, Cooling Fan

  • SKU: 9748735
  • Manufacturer: Fractal Design
  • MPN: FD-FAN-SSR3-92-WT
Starting At
Silent Series R3 92 mm, 1500 RPM, 24.4 CFM, 18.3 dBA, Cooling Fan

Rifle bearings provide improved life expectancy and lower noise Black stealth ribbon cable hides the cable for a cleaner build Balanced, sturdy fan design delivers precision at a good price point.

  • Low fan speeds, optimized for quiet operation
  • Featuring our signature black and white color scheme
  • Comes in sizes from 40 mm up to 140 mm for all your build needs
Size 92 x 92 x 25 mm
Screw hole pattern 82.5 x 82.5 mm
Fan Connector 3-pin
Bearing Rifle
Number of blades 7
Rotational speed 1500 RPM
Noise level 18.3 dB (A)
Airflow (CFM) 24.4
Static pressure 0.79 mm H2O
Fan input power 0.6 W
Fan max input current 0.07 A
Fan input voltage 12 V
Fan starting voltage 6 V
MTBF >40,000 hours
Fan weight 115 g
Cable length 350 mm
Cable type Black ribbon cable
Package contents Silent Series R3 fan, Screw pack with 4 metal fan screws
Package weight 115 g
Package dimensions (Including hanging tab) 154 x 96 x 27 mm
Package dimensions (Excluding hanging tab) 119 x 96 x 27 mm
EAN 7350041083412
Product code FD-FAN-SSR3-92-WT
