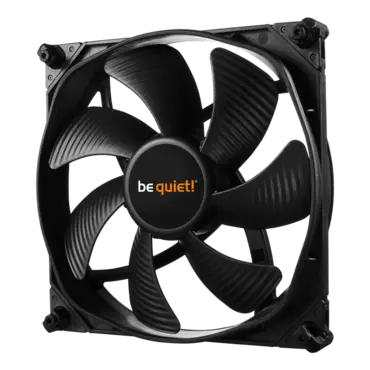

Great performance-to-noise ratio with 28.1dB(A) at 1,600rpm
6-pole fan motor for less power consumption and vibration
Fluid-dynamic bearing enables super-long life span of 300,000 hours
Fan frame with funnel-shaped air inlets for extremely high air pressure
Seven fan blades provide optimized airflow
PWM controlled fan speed by the motherboard
German product conception, design and quality control
Three years manufacturer’s warranty
Specifications
Mfr Part Number: BL071
Features:
Great performance-to-noise ratio with 28.1dB(A) at 1,600rpm
6-pole fan motor with three phases giving very low power consumption and less vibration
Advanced fluid-dynamic bearing (FDB) enables a super long fan life of up to 300,000 hours
Seven fan blades with optimized surface structures ensure excellent airflow
The rubberized fan frame is equipped with funnel-shaped air inlets producing extremely high air pressure
Removable anti-vibration mountings minimize the transmission of vibrations to the PC case and its components
Advanced high quality IC motor controller reduces electrical noise
Pulse width modulation (PWM) allows compatible 4-pin controllers (including those built into many motherboards) to intelligently vary the speed of the fan
With PWM your system can ramp up the cooling when it's needed, or operate in maximum quiet mode when it's not
Fan Speed: 1600 RPM
Air Flow: 77.57 CFM / 131.79 m3/h
Air Pressure: 2.16 mmH2O
Noise Level: 28.1 dBA
Voltage: Rated - 12 VDC, Operating - 4 ~ 13.2 VDC
Current: 0.14 A (consumption), 0.5 A (safety)
Input Power: 1.68 W
Bearing: Fluid Dynamic Bearings (FDB)
Motor: 6-pole Fan Motor
Connector: 4 Pin PWM
Cable Length: 500 mm
Life: 300,000 hours
Approvals: CE, RoHS, WEEE, RU, Tuv
Dimensions: 140.0 x 140.0 x 25.0 mm
Weight: 0.167 kg
