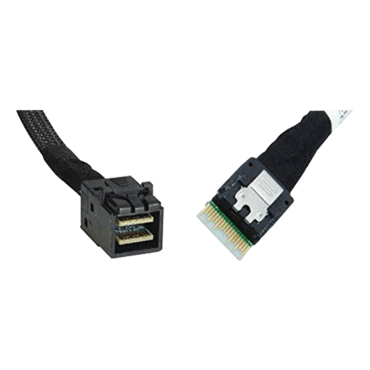

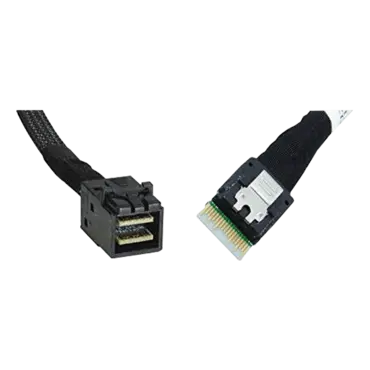

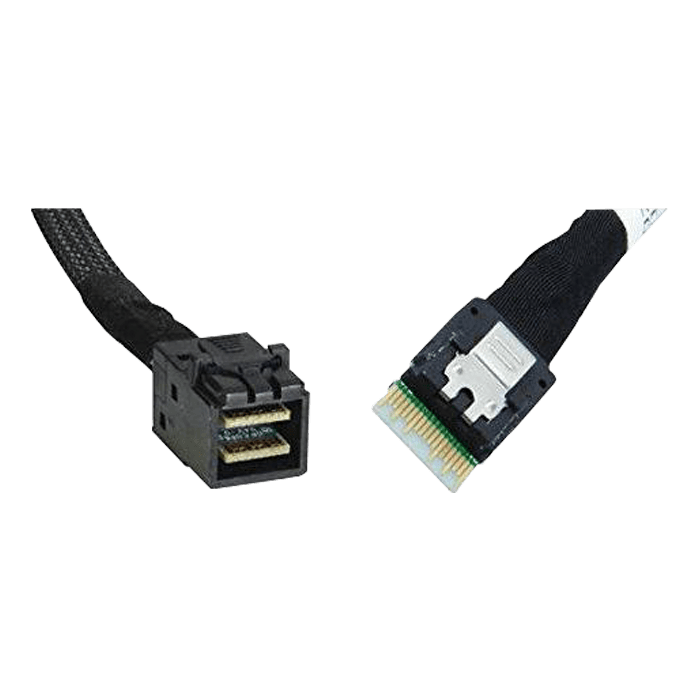

Slim SAS SFF-8654 4i Straight to HD Mini SAS 4i SFF-8643 Cable 50CM

Applications

• Servers
• Data Storage
• Workstation

Features and Benefits

• Smaller size connector and cable saves device space
• Provide four channels signal transmission as per industry standard
• Data speed: 24Gbps for SAS and 8GT/s for PCIe per channel
• Meet SAS3.0, Ultraport SlimSAS SFF-8654, SFF-8643 specification

Mechanical Performance

Ultraport SlimSAS 4i plug

• Mating Force: 150N maximum
• Unmating Force: 50N maximum
• Rated durability cycles: 250 cycles minimum

HD Mini SAS 4i plug

• Mating Force: 150N maximum
• Unmating Force: 50N maximum
• Rated durability cycles: 250 cycles minimum

Electrical Performance

Voltage: 30VDC per contact

• Ultraport SlimSAS 4i plug: 80mohm max. initial, 20mohm maximum after stress test.
• HD Mini SAS 4i plug: 30mohm max. initial, 20mohm maximum after stress test.

Dielectric Withstanding Voltage: 300 VDC minimum for 100 ms

Insulation Resistance: 10 MΩ minimum between adjacent pins

Signal Integrity

• Mated Connector Impedance: 85 ±10% ohm or 100+/-10% ohm
• Common Mode Impedance: meet PCIe Gen3 and SAS4.0 specification
• Insertion loss: meet PCIe Gen3 and SAS4.0 specification
• Maximum Crosstalk: meet PCIe Gen3 and SAS4.0 specification

Product Environmental Compliance

• RoHS2.0: Compliant
• ChinaRoHS: Yes
• REACH SVHC: Yes
• Low-Halogen Status: Not Reviewed

Cable length approx. 50cm
